FieldPilot ®
John Deere 6700
Locate the hydraulic manifold as shown. Disconnect the hose to P port as indicated then connect hose (I) to
the original pressure hose and route it to the P port of the FieldPilot valve.

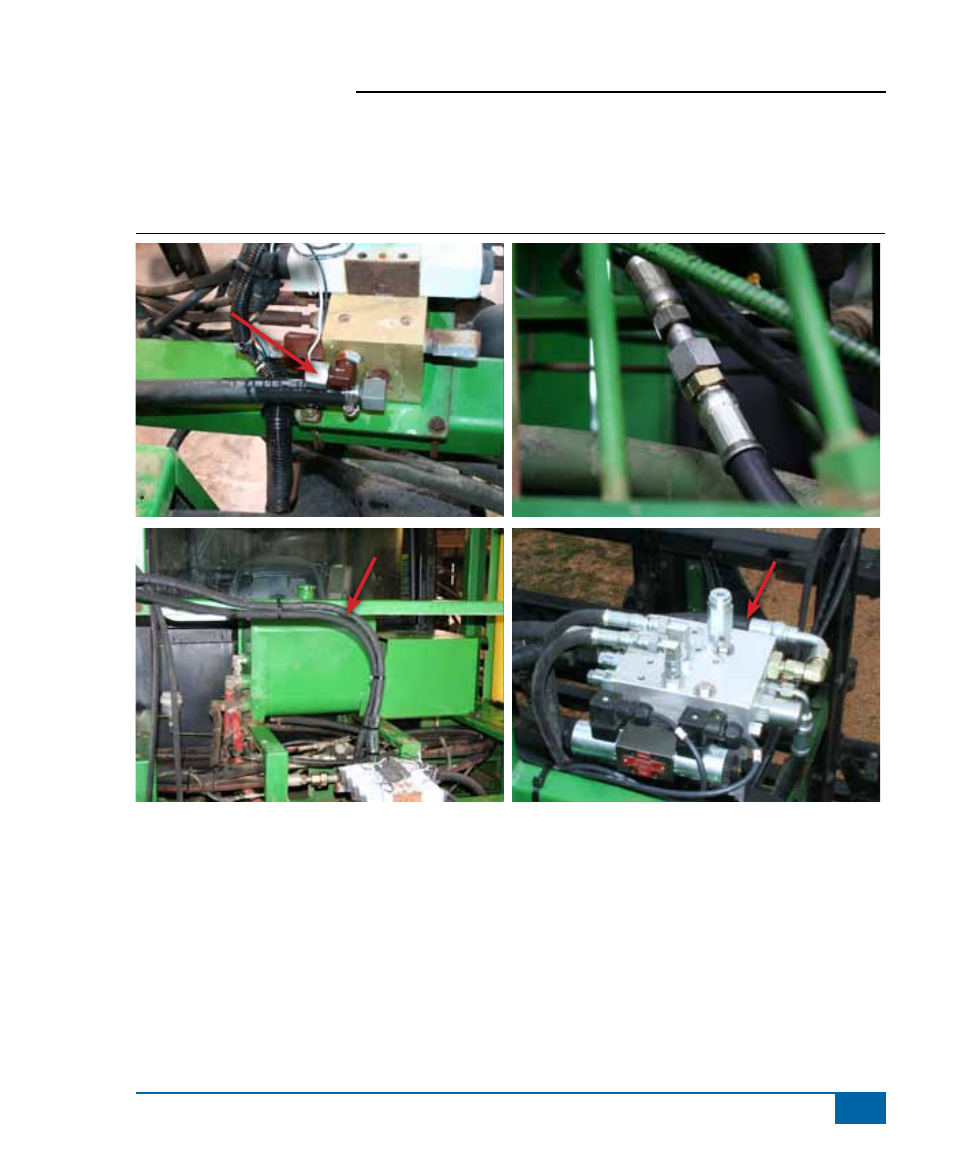

Figure 1-8: Install Pressure Hose and Adapter
disconnect
Hose
i
i
