FieldPilot ®
7. install steering hoses and adaPters
Locate the steering hoses from the orbital that connect to steel directly above the engine. Label both
hoses and disconnect them. Then install run tees (N) on both lines with the branch of the tees facing up.
Reconnect the original steering hoses to the run of the tees (N) . Next connect the steering hoses (M) to the
branch of the tees and route them to the A & B ports of the FieldPilot valve. The hoses will exit the engine
compartment on the right side and route along the right side of the machine. Just in front of the rear axle the
hoses will cross over to the left side and the route back and up to the FieldPilot valve.

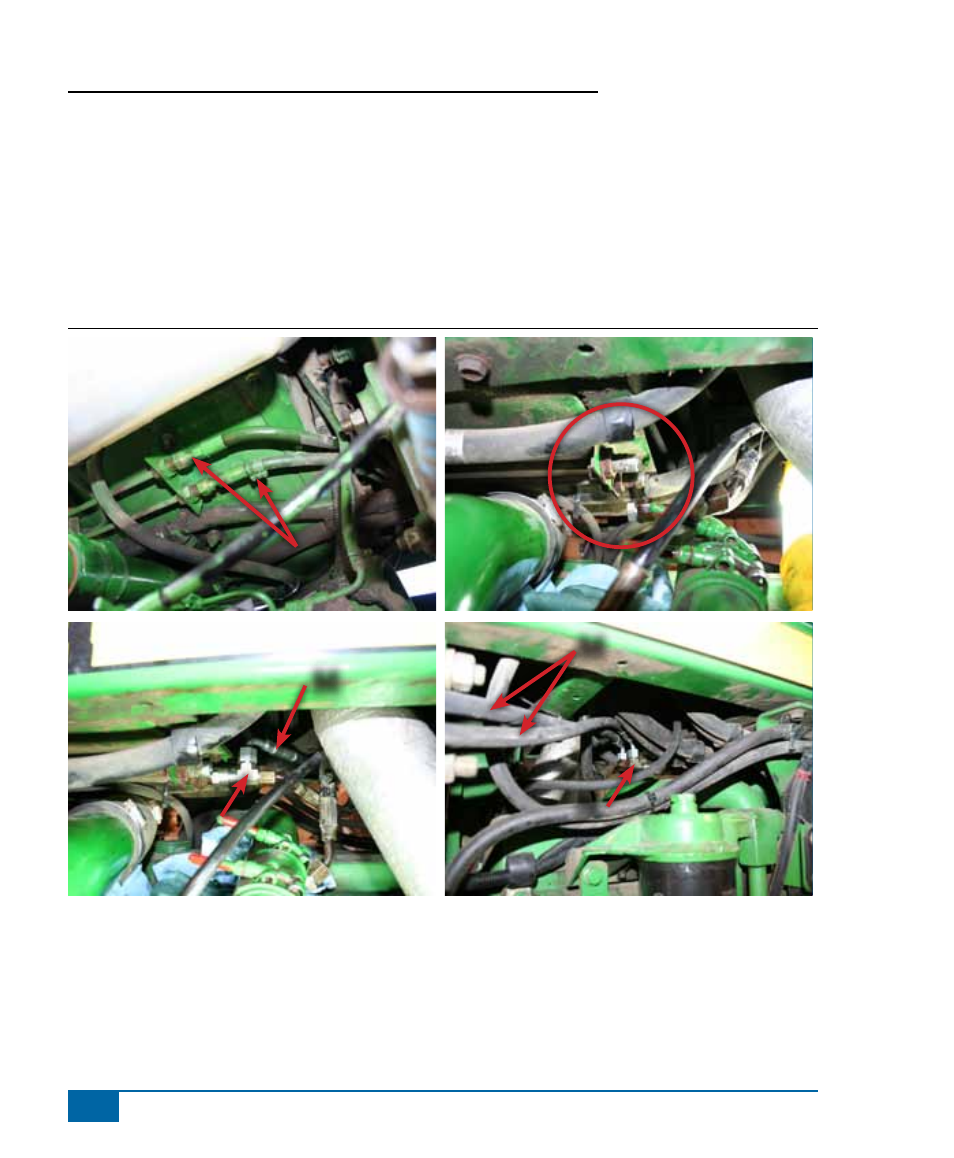

Figure 1-11: Install Steering Hoses and Adapters
steering Hoses
M
N
N
M
