FieldPilot
®
4. install steering oUtPUt adaPters
Locate the tractor steering orbital in front of the cab just below the windshield. The two lines projecting from
the steering orbital on the left side are the right and left turn output lines and will be stamped R and L on the
casting. Remove the right and left turn steering hoses and install two of the run-tees
(N)
. Leave the run-tee
fittings loose to allow for alignment when attaching hoses.

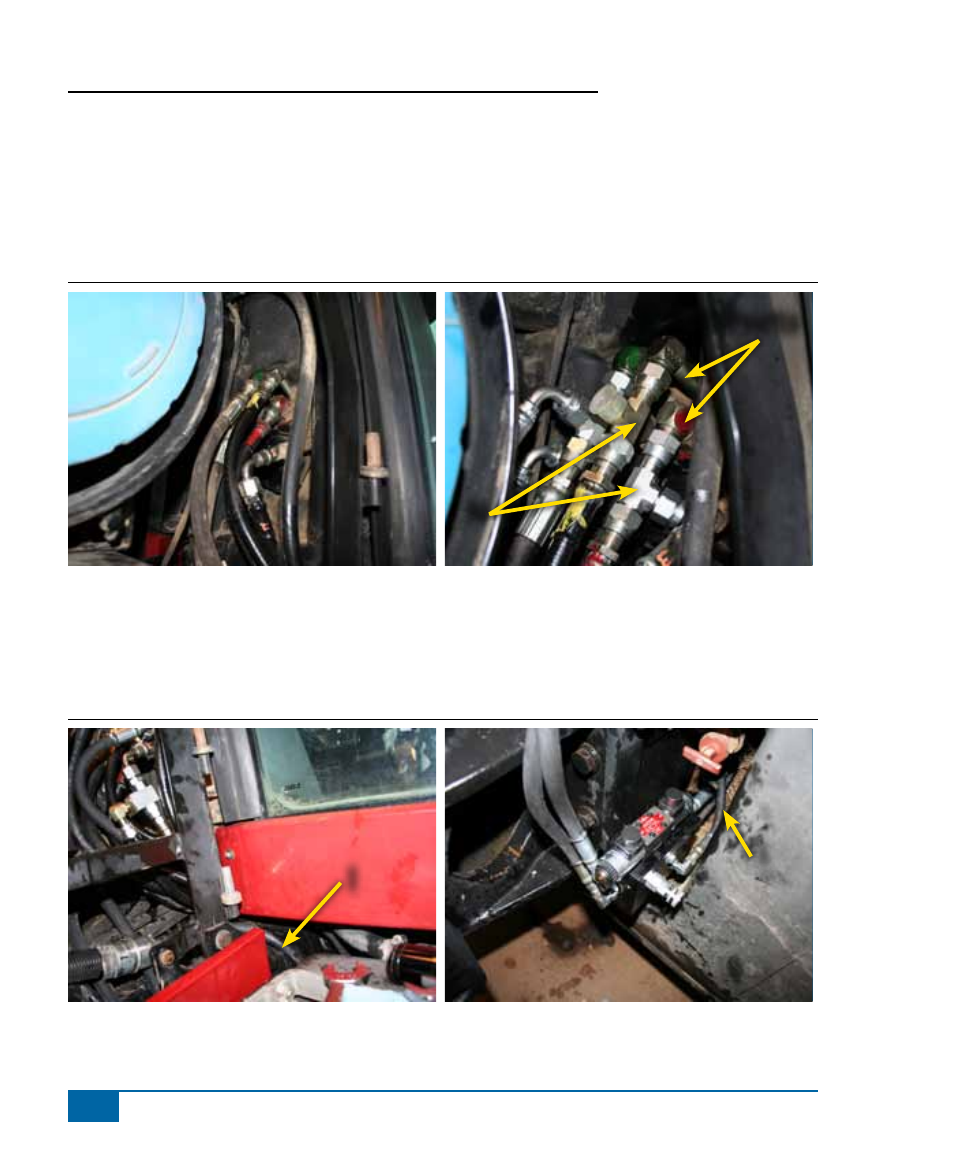

Figure 1-5: Install Steering Output Adapters
5. install steering oUtPUt hoses
Install steering hoses
(I)
to the branches of the run-tees installed in Step 4. Route the hoses down to the
FieldPilot valve as illustrated and connect to the A and B ports. Make sure hoses are secure and routed for
problem free operation. Securely tighten all connections.
Figure 1-6: Install Steering Output Hoses
N
i
i
l & r ports
