9
FieldPilot ®
2. install the FieldPilot ValVe Bracket
The FieldPilot valve will be mounted to the tractor frame on the left side, below the cab, and beside the fuel
tank. Locate and remove the lower of the two bolts securing the step mounting bracket to the tractor frame.
Using that bolt, secure the hydraulic mount bracket (H) to the tractor frame.

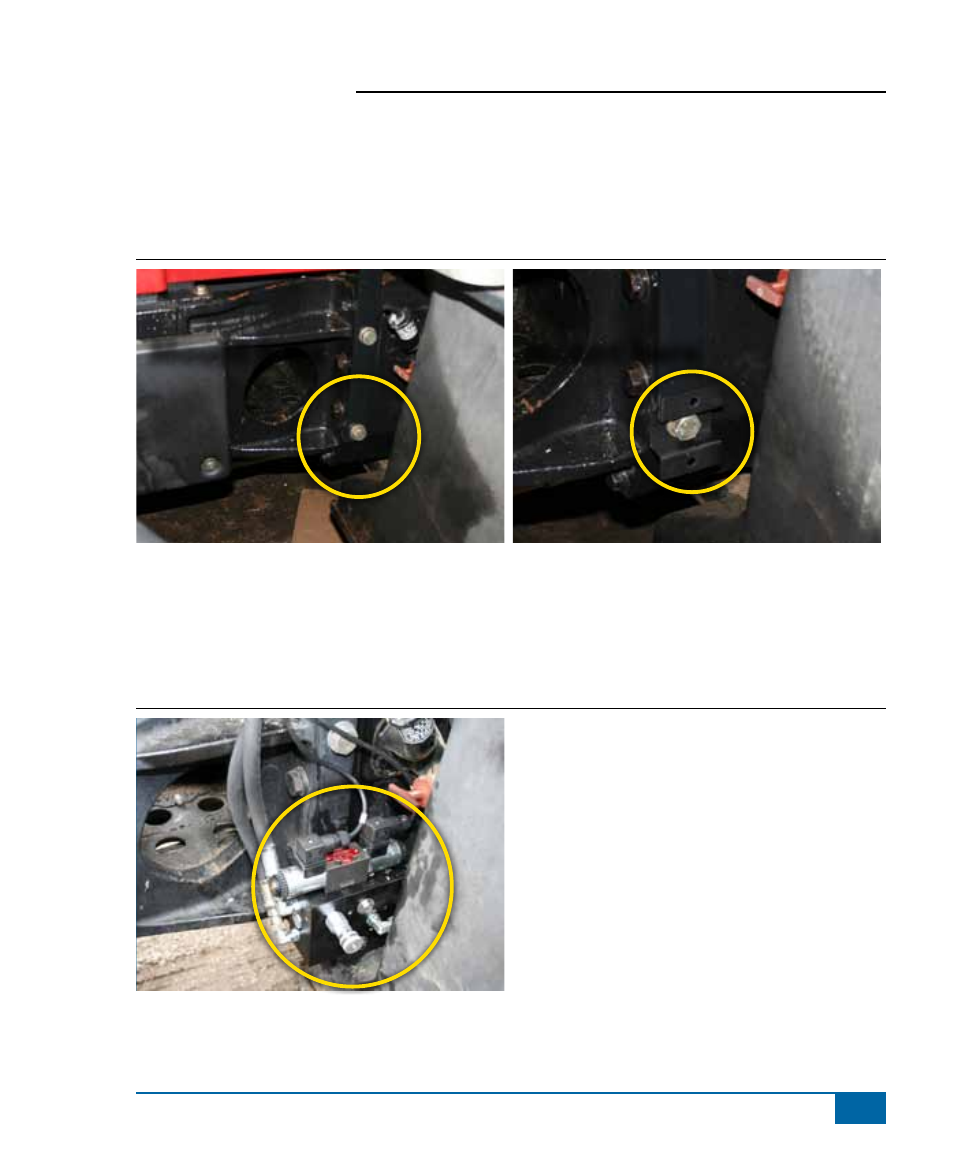

Figure 1-3: Install Mounting Bracket for FieldPilot Valve
Mount here Mount here
3. moUnt FieldPilot ValVe
Use bolts (F) , washers (B) and nuts (G) to mount the FieldPilot Valve to the bracket.
NOTE: It may be necessary to initially mount with one (1) bolt so that the valve can be rotated to install the
rear hoses.
Figure 1-4: Mount the FieldPilot Valve
