F ITTING I NSTRUCTIONS LH 1600 M
LH A GRO 5
FITTING THE RPM SENSOR ON THE FAN
OPTIONAL EXTRA EQUIPMENT (LH NO. 930-983)
A RPM sensor can be fitted on the fan as optional extra equipment. The sensor

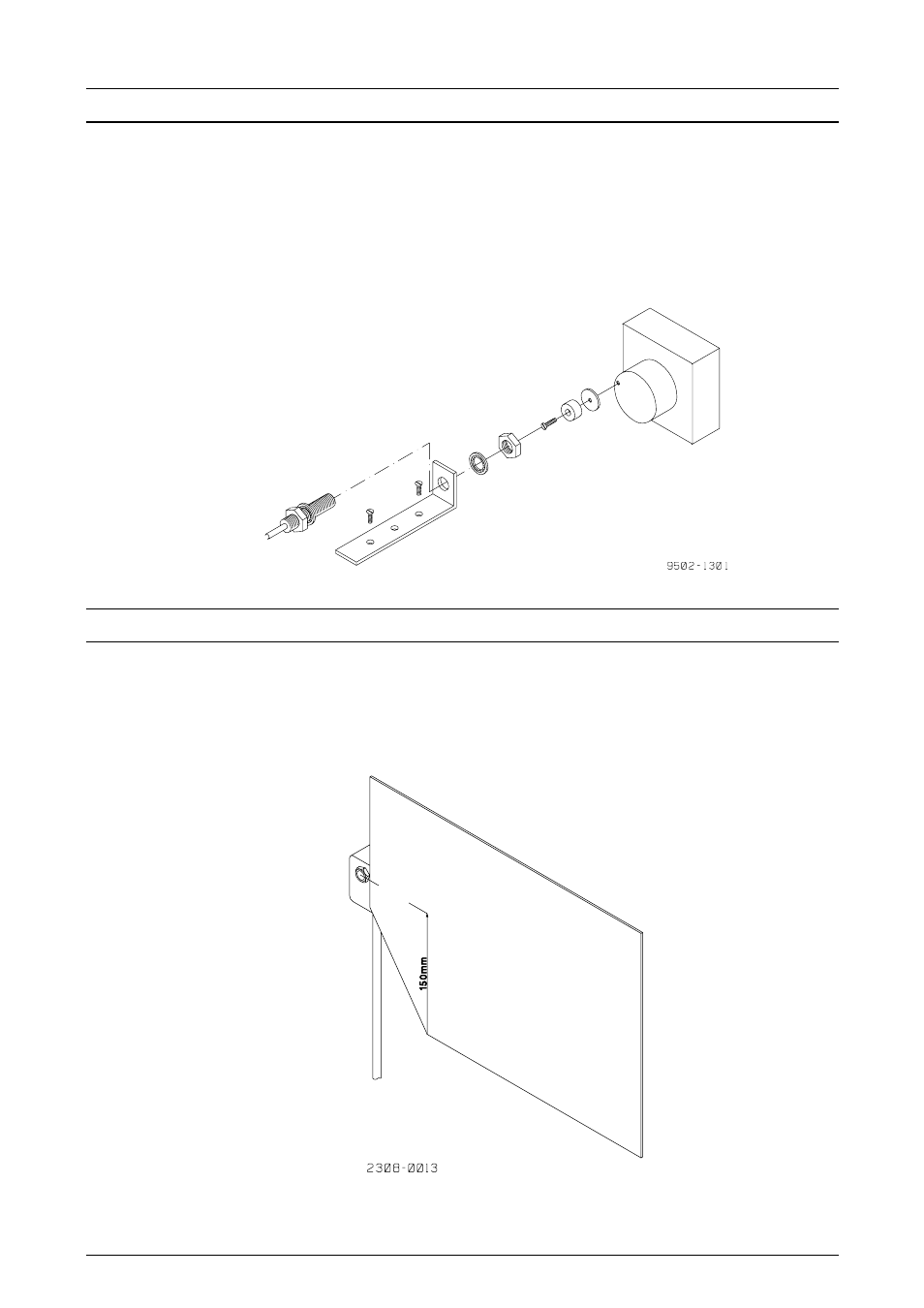

can be fitted, i.e. on the end of the fan axle as shown on the following drawing.
The distance between the magnet and the sensor must be 3 – 5 mm.
Remember that the South Pole of the magnet must face the sensor:
FITTING THE HOPPER LEVEL SENSOR (EXTRA EQUIPMENT)
A hopper level sensor can be supplied as optional extra equipment. Fit the hopper
level sensor as shown on the following drawing approx. 150 mm over the bottom
of the hopper. Drill a hole in the correct size for the sensor, which is then screwed
into the plate (do not tighten too hard):
