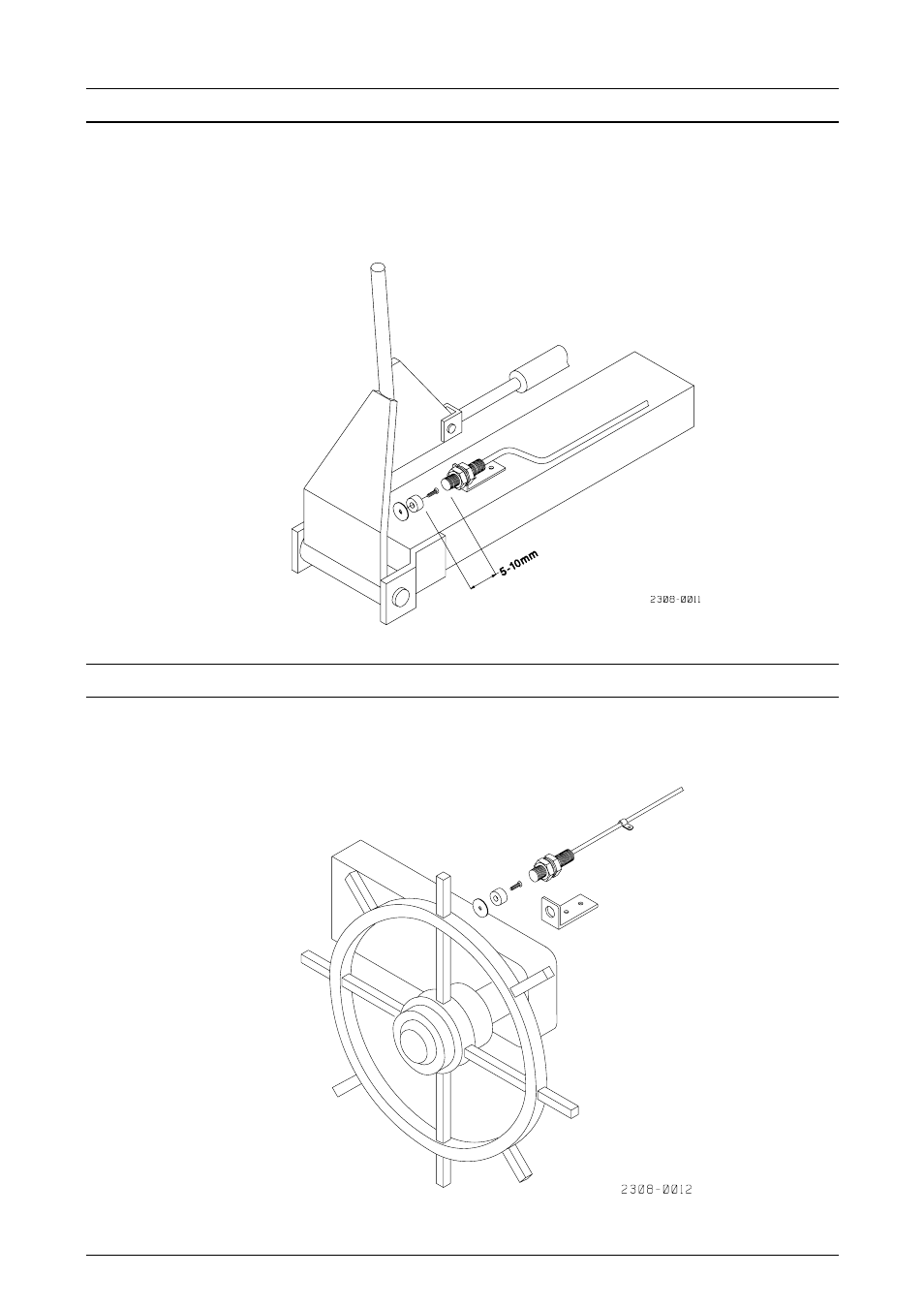

FITTING THE IMPLEMENT SENSORS
The LH 1600M is delivered with 2 implement sensors that are connected via the
junction box print in series. This means that both sensors must be active (magnet
by the sensor) before the bout number is counted and the area counter is
stopped. Fit a sensor on each marker.
FITTING THE WHEEL SENSOR
Fit the wheel sensor on the seed drill land wheel. The distance between the
magnet and the sensor is approx. 5-mm.
