TeeJet MT 600 Piston Injection Pump User Manual

Page 4

98-05086

ALIBRATION

Refer to your TASC 6300/6600, TASC 6500, or Legacy 6000 console user
guide for specific calibration instructions related to your specific console.
When you see a reference to placing a magnet on the motor control
module or PCM (Product Control Module), press and hold the Calibrate
switch on the MT 600 pump instead. You can record your system calibra-
tion numbers on page 10.

Calibration

Switch

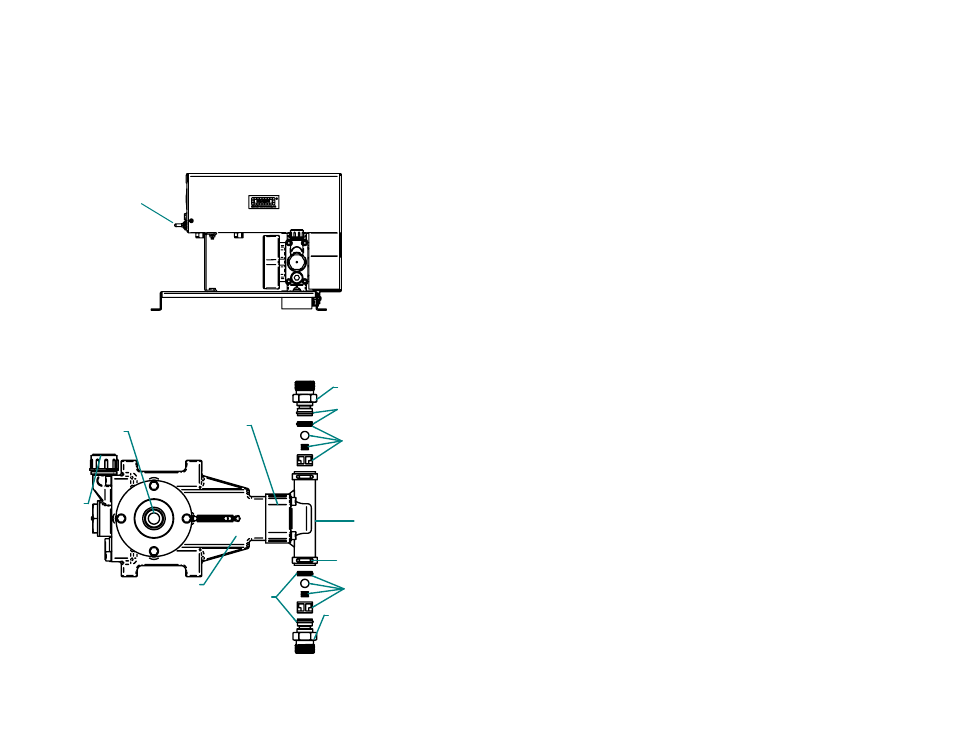

Fig. 4: Pump Calibration Switch

Piston

ceramic &

316 series SST

O-Ring

64-90028

Fitting 1/2" male NPT

67-00018

Pump Head

Piston

O-Rings - Viton 64-90027

Bushing - Delrin

Seal, Teflon 64-05100

Seal, Niltrile

Key - feather

4 x 4mm

60-10073

KIT, Piston Pump Valves

54-02031

includes : 1 seat, 10 balls,

1 spring, & 1 slive

KIT, Piston Pump Seals, Viton

54-02030

Clip

Oil Plug & Seal

54-02033

O-Ring

64-90028

Fitting 1/2" male NPT

67-00018

KIT, Piston Pump Valves

54-02031

includes : 1 seat, 10 balls,

1 spring, & 1 slive

Fig. 5: Pump Diagram

MT600 PISTON PUMP GENERAL SPECIFICATIONS

Product Description :

Pump Type :

Positive Displacement Piston Pump

Versatility :

Modular, serviceable, and compatible with

various controllers

Performance Characteristics :

Response :

Chemical moves immediately when
motor is driven

Motor Speed :

0 to 225 rpm at 12.5 Vdc

Pumped Media :

Fluids :

Liquid chemicals only

Electrical :

Power :

30 to 120 watts typical (30amp Fused)

Voltage :

12 volt DC vehicle

Connection :

2 pin MetriPak 480 Tower-Sealed

Physical Properties :

Dimensions :

11.5”H, 10”D, 116”W

Plumbing :

3/4” FPT Manifold 1/2" NPT

Weight :

1 Head 26lbs @ 650 ft above sea level
4 Head 46lbs @ 650 ft above sea level

Environmental :

Temperature :

34 degrees F. to 140 degrees F.

Humidity :

Weatherproof (high humidity)

Vibration :

N/A

Dust :

N/A
