Touch Screen Calibration
Touch Screen Calibration is used to activate a touch
screen calibration.
1. Press CONSOLE ICON .
2. Press CALIBRATE TOUCH SCREEN ICON .
3. Press HAND ICON to enable the touch screen
calibration process.
4. “Begin touch screen calibration?”
Press
►Yes – to begin the Touch Screen Calibration.
►No – to return to the Touch Screen Calibration
screen
5. Press series of 5 crosshairs .
6. Press OK to complete the touch screen calibration.
7. Press
►PAGE RIGHT ARROW to proceed to
Screenshot.
►SYSTEM SETUP TAB to return to main
System Setup screen.

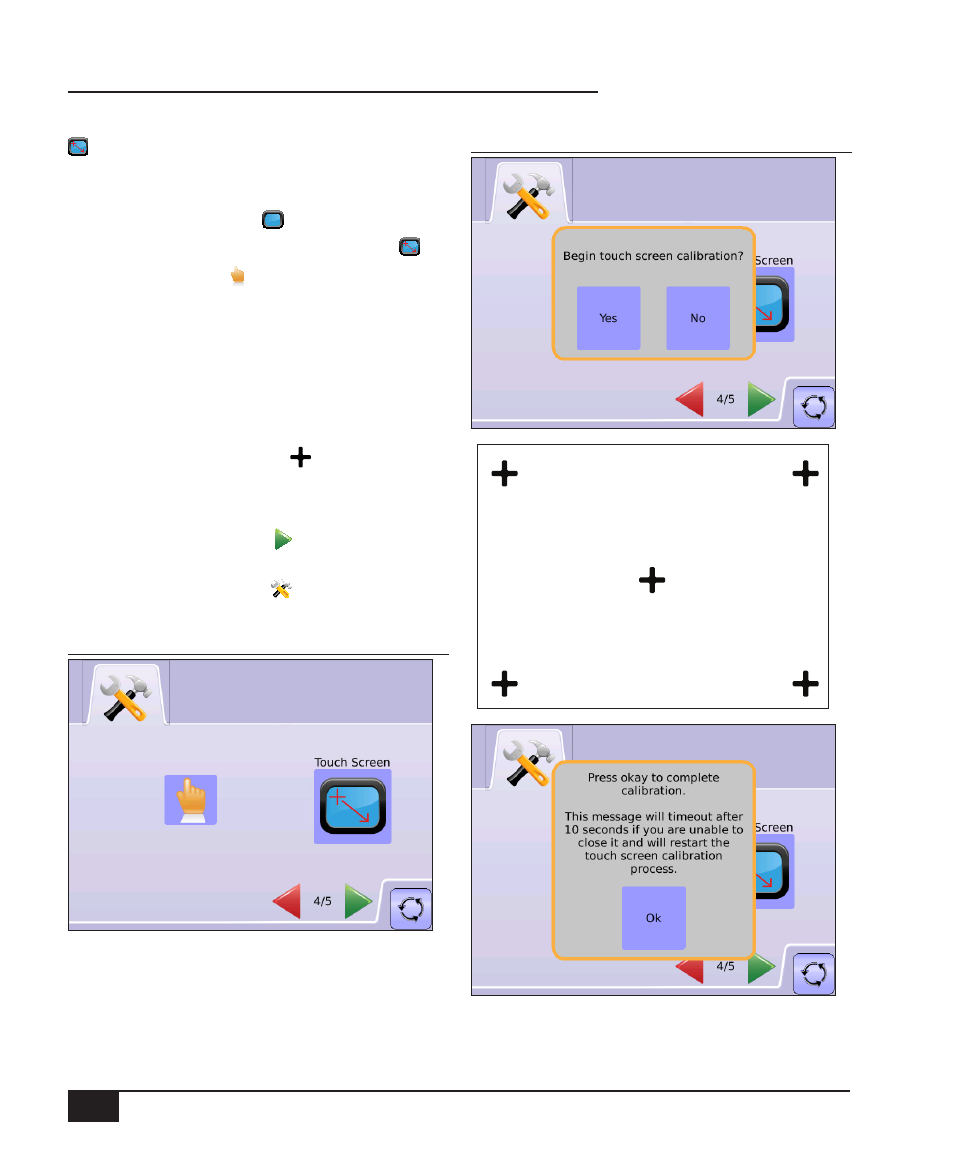

Figure 1-21: Touch Screen Calibration
Figure 1-22: Touch Screen Calibration Process
