5

98-05266 R0 US

Matrix

®

570VT ● ISOBUS

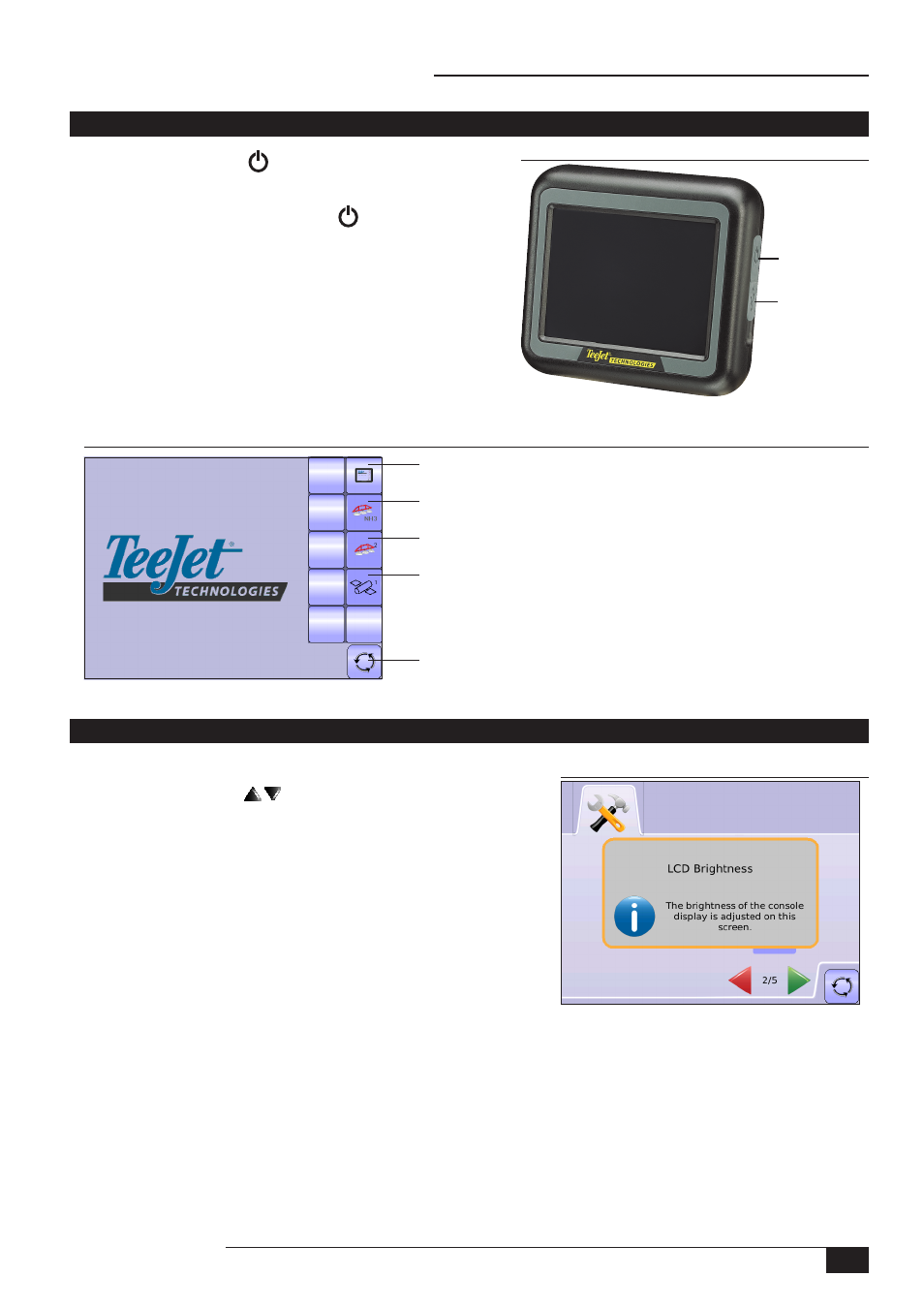

POWER ON/OFF

Figure 1-6: Power Button

Power Button

USB Port with

Rubber Cover

Press the POWER BUTTON to power on the console. Upon power up,

the Matrix VT will begin its Start Up Sequence.

Press and briefly hold the POWER BUTTON (until the screen turns

black) to power off the console.

Start Up Sequence

The console takes approximately 40 seconds to power up. During this time

the TeeJet Technologies logo will be displayed (brightness levels will fluctuate).
Figure 1-7: Master Screen

Matrix VT Setup Key

IC18 NH3

IC18 Crop Sprayer

BoomPilot

Master Screen Key

Options [as available] on the ISOBUS system

will fill in empty squares.

GENERAL OPERATION INFORMATION

A firm touch is required when selecting a screen icon.

Figure 1-8: Example of Information Text Box

For rapid adjustment of a setting, press and hold the

UP/DOWN ARROW ICONS
All changes are saved automatically.
The console needs to be cycled off and back on when changing or attaching

equipment to the Matrix system.
Press the icon of any menu item to display a definition of that item. To remove the

information box, press anywhere on the screen.
Cleaning suggestions – Matrix consoles should be cleaned with mild cleaners,

such as glass cleaner, and a soft cloth. Take care not to rub dust or other abrasive

materials into the touch screen surface.

• Use a soft lint-free cloth.
• The cloth may be used dry, or lightly dampened with a mild cleaner or Ethanol.
• Be sure the cloth is only lightly dampened, not wet. Never apply cleaner

directly to touch panel surface; if cleaner is spilled onto touch panel, soak it up immediately with absorbent cloth.

• Cleaner must be neither acid nor alkali (neutral pH).
• Wipe the surface gently; if there is a directional surface texture, wipe in the same direction as the texture.
• Never use acidic or alkaline cleaners, or organic chemicals such as: paint thinner, acetone, tolulene, xylene, propyl or isopropyl

alchohol, or kerosene.

• Suitable cleaning products are commercially available pre-packaged for use; one example of such a product is Klear Screen™, or

commercially available off-the-shelf retail brands such as Glass Plus® Glass and Surface Cleaner made by Reckitt-Benckiser.

• Use of incorrect cleaners can result in optical impairment of touch panel and/or damage to functionality.
