4.6.2 Input
Depending on the type of card, the tuner is available for different transmission standards.
4.6.2.1 DVB-S2
In the section Input you can the configure parameter of the DVB-S/S2 - Tuner.

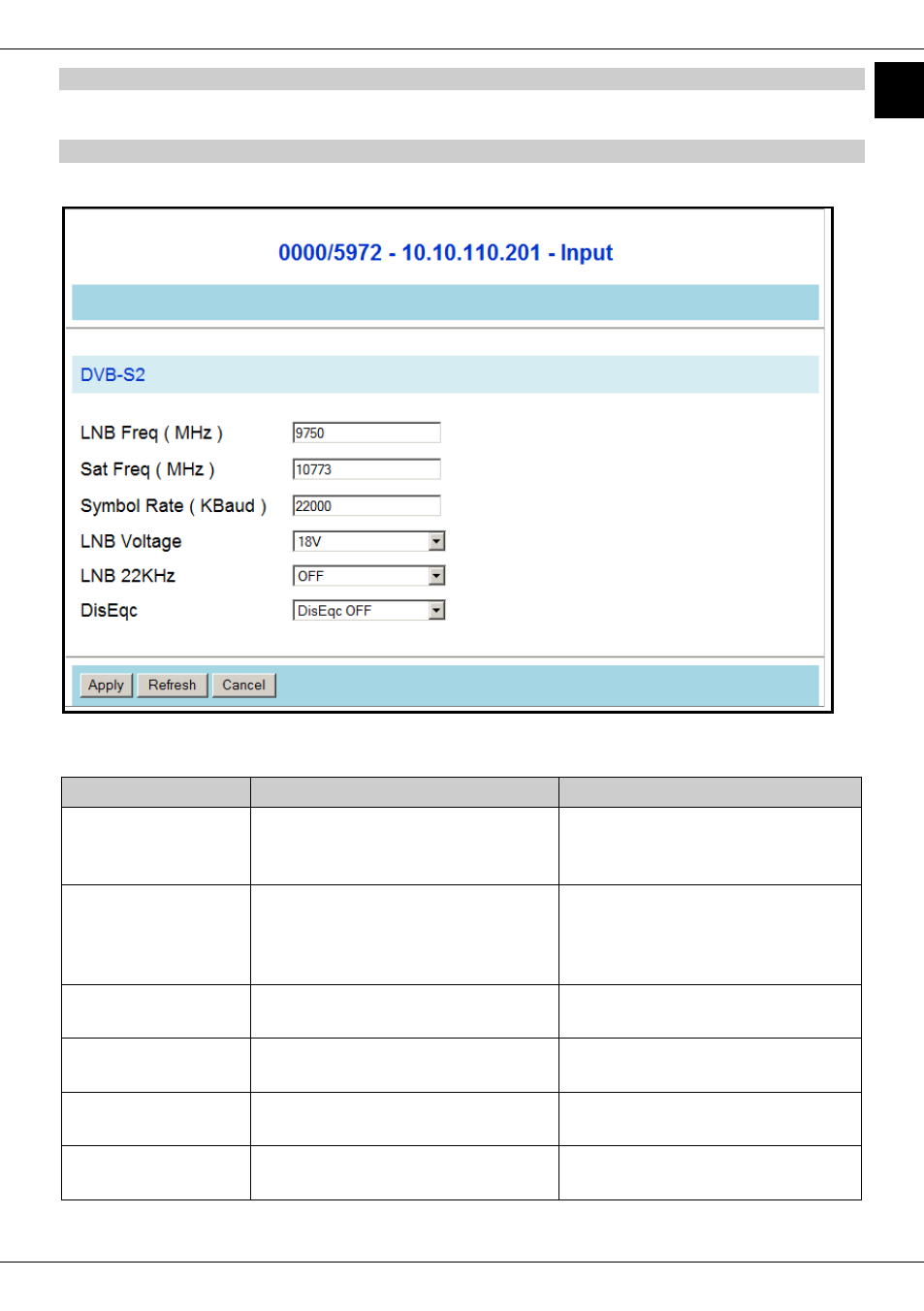

Picture: 4
Input
Description
value
LNB Freq (MHz)
Input of local oscillator
frequency (LO) of the LNB in
MHz.
9750 for Low-Band
10600 for High-Band
Sat Freq (MHz)
Input of the satellite down-Link
frequency in MHz.
The difference between LNB-
Freq and Sat Freq have to be in
the within the frequency range
from 950MHz to2150MHz.
Symbol
Rate(kBaud)
Input the symbol rate in kBaud.
0 up to 45000
LNB Voltage
Selection of the control voltage
for the Multiswitch.
13V for vertical
18V for Horizontal
LNB 22kHz
Selection of the control signal for
the Multiswitch.
OFF for Low-Band
ON for High-Band
DisEqc
DiSEqC control signal for the
Multiswitch.
Off, A, B, C, D
The tuner does detect the modulation process and the error control automatically.
