Page 8: Base assembly
EYEBOLTS
UP
FEET DOWN
I
F
F
G
E
E
STEP 3
STEP 3

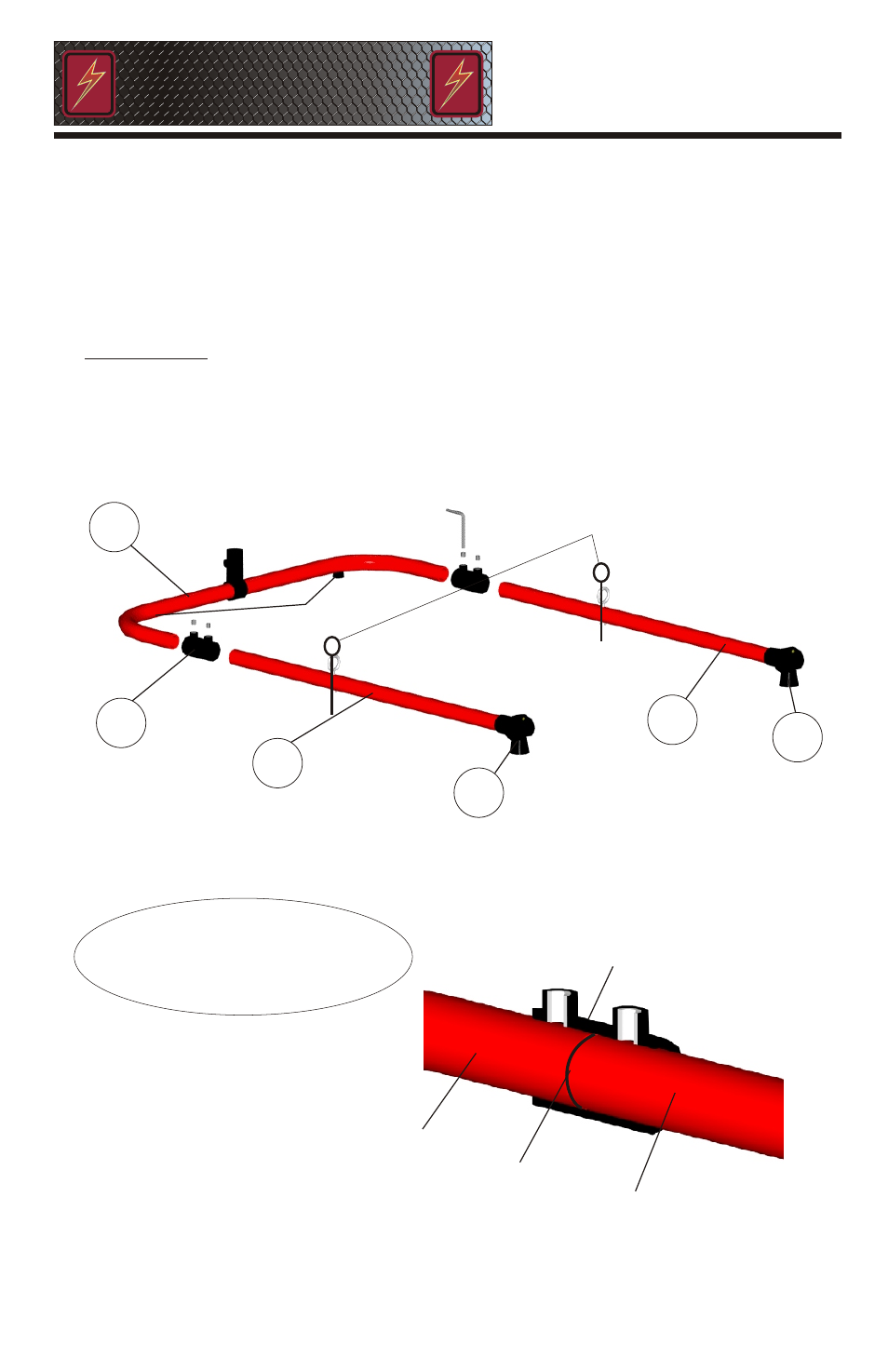

BASE ASSEMBLY
COUPLER
TUBING
TUBING
HALFWAY IN
REMEMBER - HALFWAY IN
GET PARTS “I”, AND “F”. THERE ARE TWO PART “F”’s, THREE PARTS TOTAL.
GRAB TWO MORE COUPLERS AND TWO EYEBOLTS
IMPORTANT: ATTACH EYEBOLTS TO (F) FRAME PIECES BEFORE
ASSEMBLING BASE ASSEMBLY
6
6
MVP/XXL
ASSEMBLY MANUAL
SWINGAWAY
SWINGAWAY
SPORTS PRODUCTS
SPORTS PRODUCTS
SPORTS PRODUCTS
THE "SwingAway®" PRODUCT IS PROTECTED UNDER US PATENTS 5,795,250 AND 7,914,400.
