Step 2, Swingaway, Mvp/xxl – SwingAway SWGSB100 User Manual

Page 7: Attach the couplers

STEP 2

ATTACH THE COUPLERS

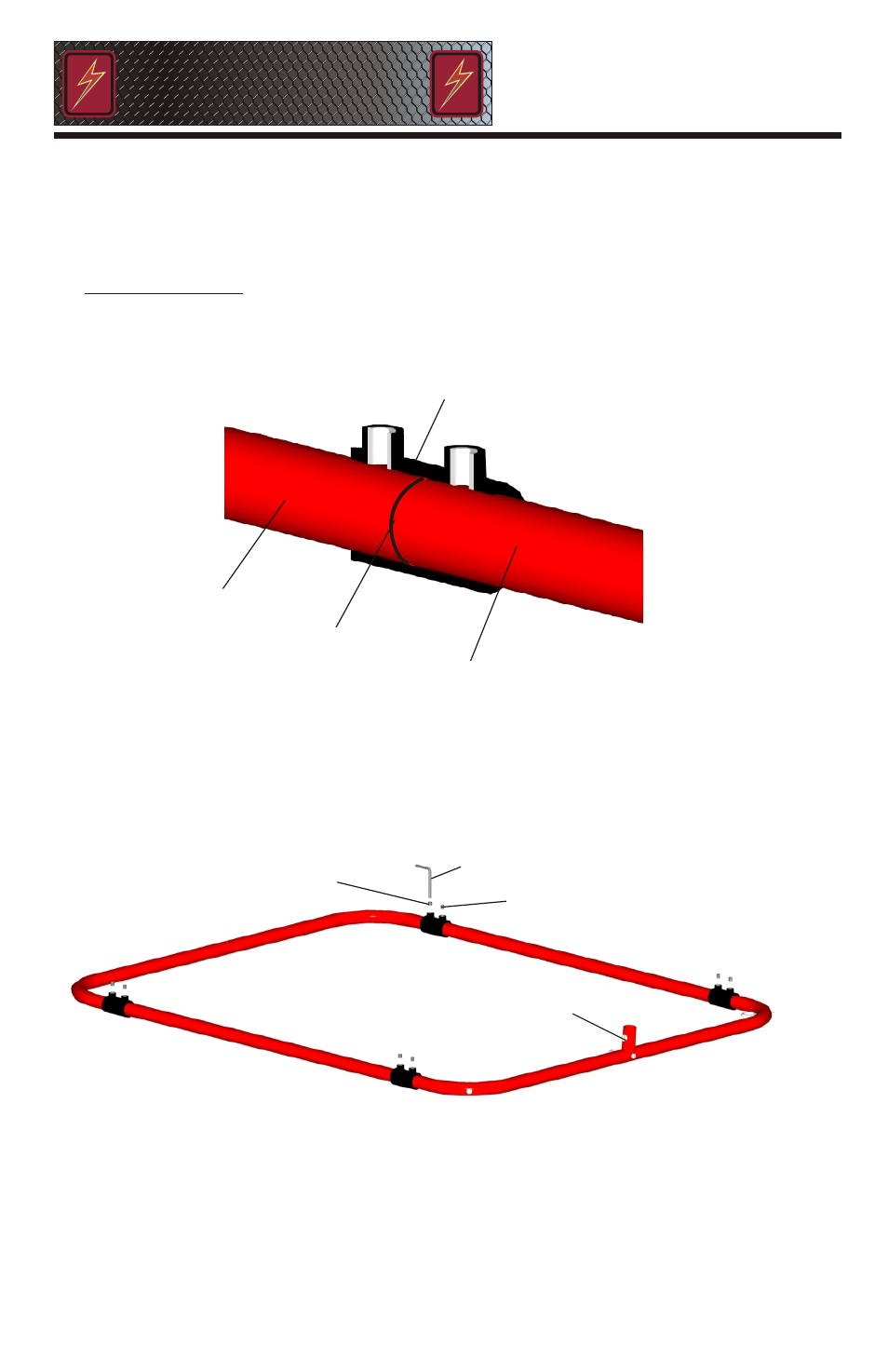

MAKE SURE THE PIPES ARE INSERTED HALFWAY IN THE COUPLER.
.

IMPORTANT:

ALLEN WRENCH

SET SCREWS

MAKE SURE THE

FRAME IS FLAT

AND TIGHTEN UP

STUB UP

SECTION OF COUPLER

TUBING

HALFWAY IN

* DO NOT OVER TIGHTEN SET SCREWS

* AFTER ASSEMBLING, SET THIS TO THE SIDE.

MVP/XXL

ASSEMBLY MANUAL

SWINGAWAY

SPORTS PRODUCTS
