STEP 6
STEP 6

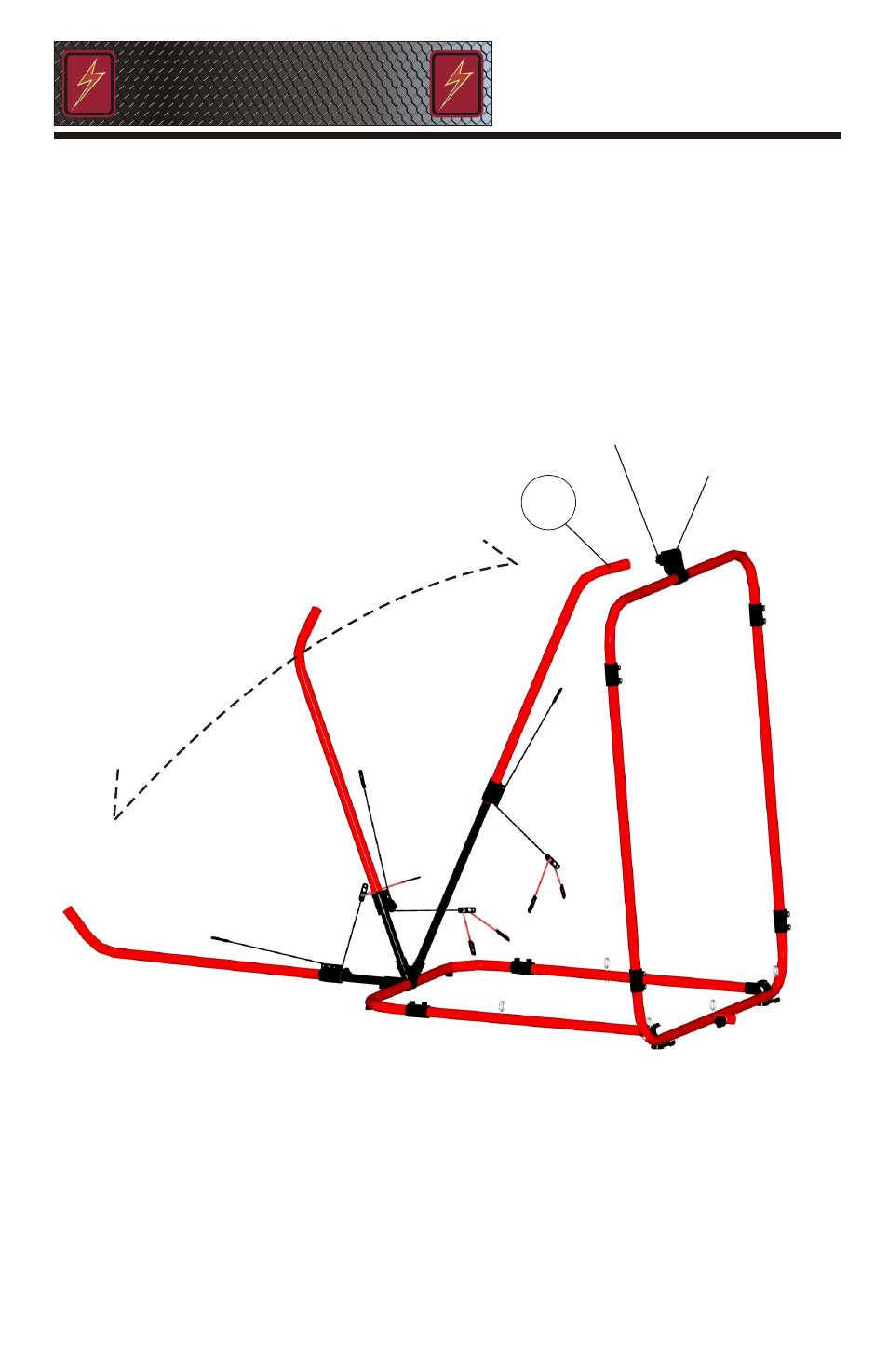

PUT THE NET FRAME ON THE OPEN
PART OF THE FOOT SPLIT FITTINGS
AND RAISE THE TELESCOPES!
BOOM
SUPPORT
FITTING
INSERT (N) POLE
INTO BOOM SUPPORT
FITTING AND TIGHTEN
T-KNOB
9
9
MVP/XXL
ASSEMBLY MANUAL
SWINGAWAY
SWINGAWAY
SPORTS PRODUCTS
SPORTS PRODUCTS
SPORTS PRODUCTS
