Instruction Manual
15
Firewall Section

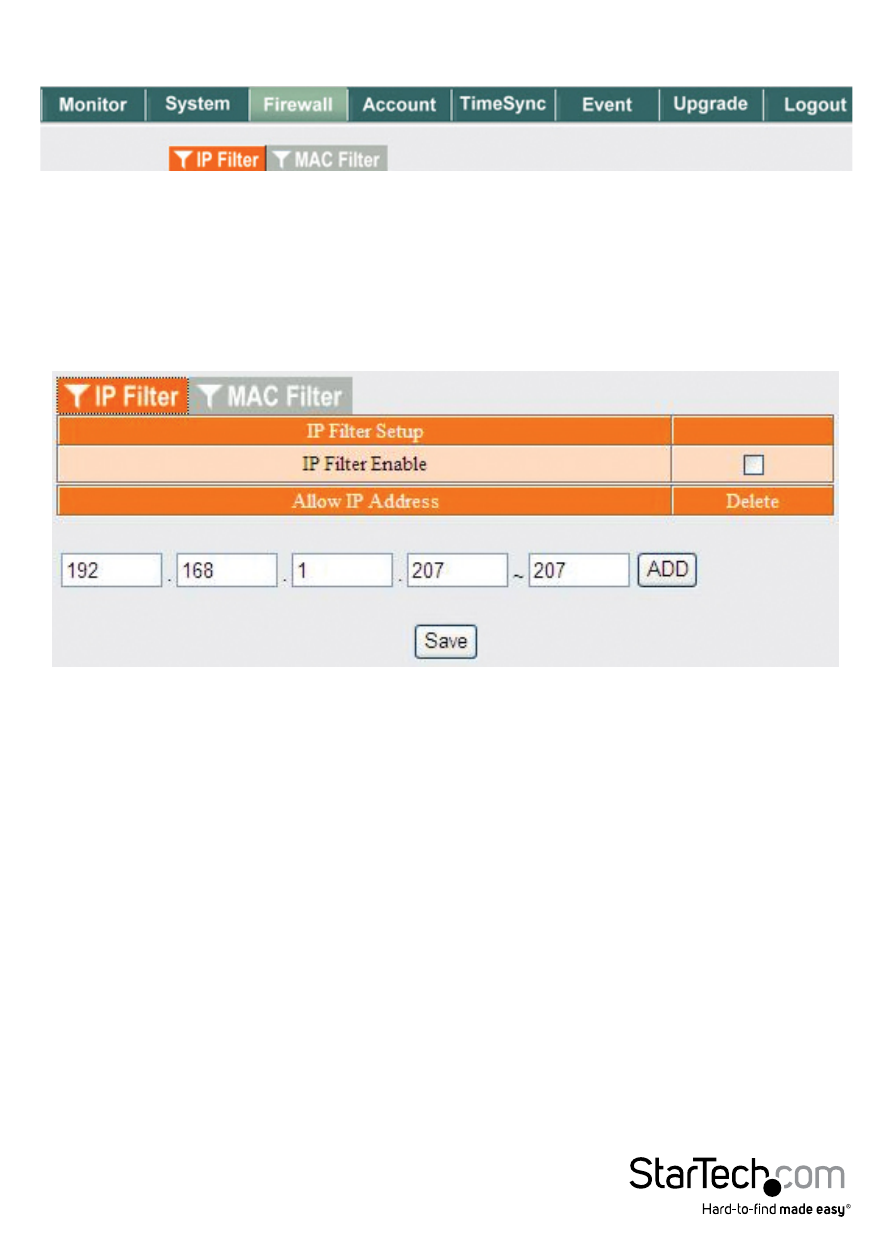

IP Filter Tab
Configure the range of IP addresses that are able to access the PDU.
IP Filter Enable: Check this box to enable the IP address filter.
Allow IP Address: The first four sections are the beginning of the IP range. The last
section is the ending of the IP range that is being given access to the device.
E.g. To authorize the IP range from 192.168.1.110 - 192.168.1.120, input as shown in the
image above
ADD: Click ADD to place the entered address range in the table.
Delete: To delete a specific IP address range, click on the “X”.
Save: Saves all changes.
This menu allows the administrator to configure user privileges and prevent
unauthorized access to the device.
