External Control 20 |
1 2
CONTROL
INPUT
OPTION
SELECT
ENV- ENV+
DEPTH
OPTION
SPEED
DELAY/FREQ
FEEDBACK
VOLUME
TREMOLO
MIX
(HOLD)
DEFAULT
HH
MIDI
EXP
FLANGER
CHORUS
PHASER
RESONATOR
MOD SOURCE
4 STAGE
QUAD
CLASSIC
THRU
ZERO
SHADOW
RES 1
RES 2
VIBE
6 STAGE
8 STAGE DUAL
12 STAGE
O RB I TAL
MODU L A T OR
A

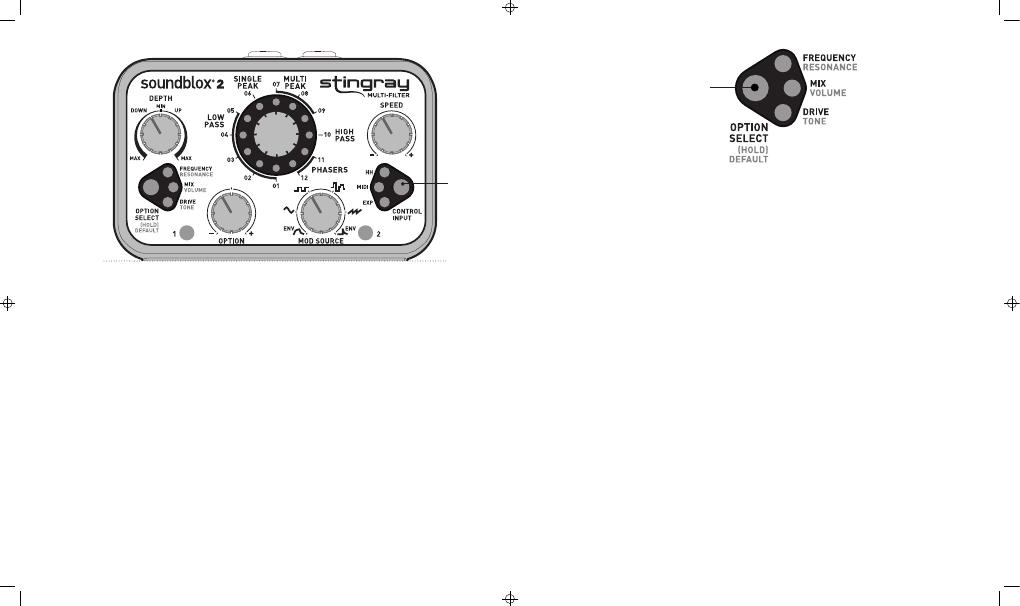

Selecting an external control input:
Press the CONTROL INPUT button (A) to cycle between the external control
options. There are four possible settings:
• OFF (no illuminated LEDs): External control is disabled in this mode and
the MOD SOURCE knob remains active.
• HH: Hot Hand mode. Select to enable Hot Hand control. In this mode,
Hot Hand defaults to controlling filter modulation or is assignable to any
knob parameter.
• MIDI: MIDI control mode. Select to enable MIDI I/O through the
Soundblox HUB.
• EXP: Expression Pedal for use with the SA161 Source Audio Dual
Expression Pedal. Like HH mode, the expression pedal controls filter
modulation, and can also be assigned to control any other knob parameter.
Controls: Knobs | 9
• FREQUENCY (Green LED): Adjusts the frequency center point of the
modulation range of the filter. As the knob is turned from its minimum
position (fully counter-clockwise) to its maximum position (fully
clockwise), the center point of the frequency range moves from low to
high.
• RESONANCE (Red LED): Adjusts the width, and sometimes height, of
the various peaks and notches in the selected filter’s frequency
response. As the knob is turned from its minimum position (fully
counter-clockwise) to its maximum position (fully clockwise), the
resonance setting moves from low to high, adding a more pronounced
sound. This control is sometimes referred to as “Q”.
Press button to
select option
Stingray Manual - pages 20, 9
