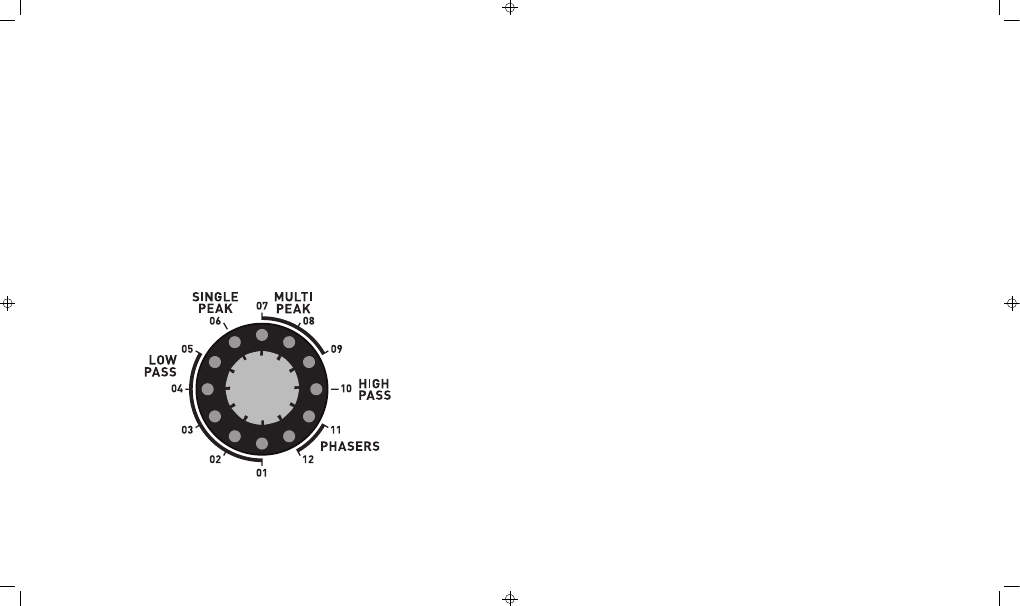

18 | Effect Types

Extended Mode: Dual LEDs lit
01x. 6-pole low-pass filter

02x. 4-pole low-pass with offset peaks

03x. Peak > 4-pole low-pass filter

04x. 4-pole low-pass > peak filter

05x. Peak > notch > 2-pole low-pass

06x. Band-pass filter

07x. Peak > notch > peak filter

08x. Notch > peak > notch filter

09x. Triple peak filter C

10x. Triple peak filter D

11x. Single notch filter

12x. Dual notch > 2-pole low-pass

Normal Mode: Single LED lit
01. 2-pole low-pass filter

02. 4-pole low-pass filter

03. Two parallel low-pass filters

04. Three parallel low-pass filters

05. Notch > low-pass filters

06. Peak filter

07. Low-pass > two peak filters

08. Triple peak filter A

09. Triple peak filter B

10. High-pass filter

11. Phaser - Dual notch

12. Phaser - Triple notch

Controls: Knobs | 11

• DRIVE (Green LED): Adjusts the amount of drive and distortion applied to the

wet signal. As the knob is rotated from its minimum position (fully counter-

c

filter effects. When the knob is at its default (center) position, the tone of the

signal is not modified. As the knob is turned clockwise, the tone of the output

will become brighter, with higher frequencies being boosted. As the knob is

turned counter-clockwise, the tone will become warmer, with the higher

frequencies being cut. The dry signal is not affected by the TONE knob.

lockwise) to its maximum position (fully clockwise), the amount of distortion

applied ranges from no distortion at all, to maximum distortion. The distortion

circuit is a soft clipper with an even, smooth distortion characteristic and a warm

spectrum at lower DRIVE settings. At higher DRIVE settings, the clipping

becomes more aggressive with sharper edges and more harmonics.

Distortion is applied before the filter. The pre-distortion signal is used to

modulate the filter, which enables more expressive and dynamic control of

the filter sweep even when high levels of DRIVE are used.

• TONE (Red LED): Adjusts the tone of the wet signal, after the distortion and

Factory Defaults:
Given the number of different functions available on the OPTION knob, it can be

useful

created default settings for each effect type, which provide a good starting

point for dialing in an effect. You can recall these factory default values at any

time by pressing and holding the OPTION SELECT button until its three LEDs

blink green twice.

to “zero out” all of the controls to a default value. Source Audio has
