To perform a calibration:
1. Select a preset by pressing a footswitch.
2. Enable Hot Hand control by selecting HH mode with the CONTROL
INPUT button.
3. Press and hold the CONTROL INPUT button until the HH red LED
begins to blink slowly (note: this is the same as the control assign
procedure).
4. Hold the Hot Hand sensor ring at the desired calibration position.
5. Press the footswitch for the currently selected preset.
6. The HH LED will blink when the calibration is complete.
If you have trouble with calibration and need to get back to the default
setting, place the sensor ring on a flat, level surface, with the blue LED
facing down. Run the calibration procedure again.
Quick Start | 5
1 2
CONTROL
INPUT
OPTION
SELECT
ENV- ENV+
DEPTH
OPTION
SPEED
DELAY/FREQ
FEEDBACK
VOLUME
TREMOLO
MIX
(HOLD)
DEFAULT
HH
MIDI
EXP
FLANGER
CHORUS
PHASER
RESONATOR
MOD SOURCE
4 STAGE
QUAD
CLASSIC
THRU
ZERO
SHADOW
RES 1
RES 2
VIBE
6 STAGE
8 STAGE DUAL
12 STAGE
O RB I TAL
MODU L A T OR
G
D
A
C
B
F
H H
E

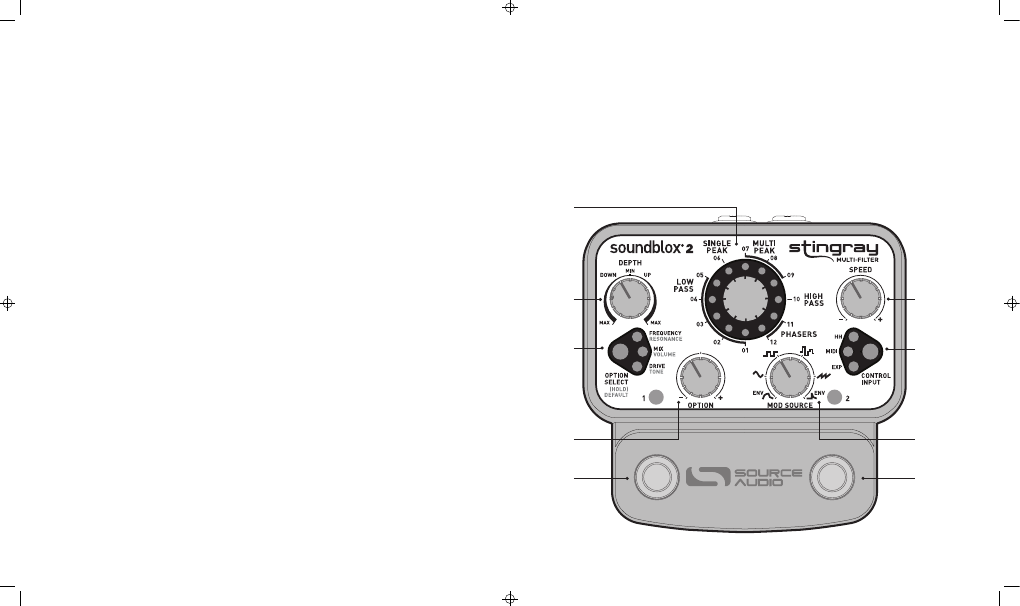

• OPTION (C): Adjusts the parameter selected by the OPTION SELECT button.
• SPEED (D): Adjusts the attack and decay rate of the envelopes, the rate of
the LFO (Low Frequency Oscillator), or the ”Smoothing” of the Hot Hand.
• MOD SOURCE (E): Selects between the envelopes, sine wave LFO, square
wave LFO, random sample and hold LFO, and sawtooth wave LFO.
• OPTION SELECT (F): Selects which parameter will be controlled by the
OPTION knob.
• CONTROL INPUT (G): Selects which external controller type will be used.
• FOOTSWITCHES (H): Enables/Disables presets. Press and hold either
footswitch to save an edited preset.
