ZCS-232 User Guide
9

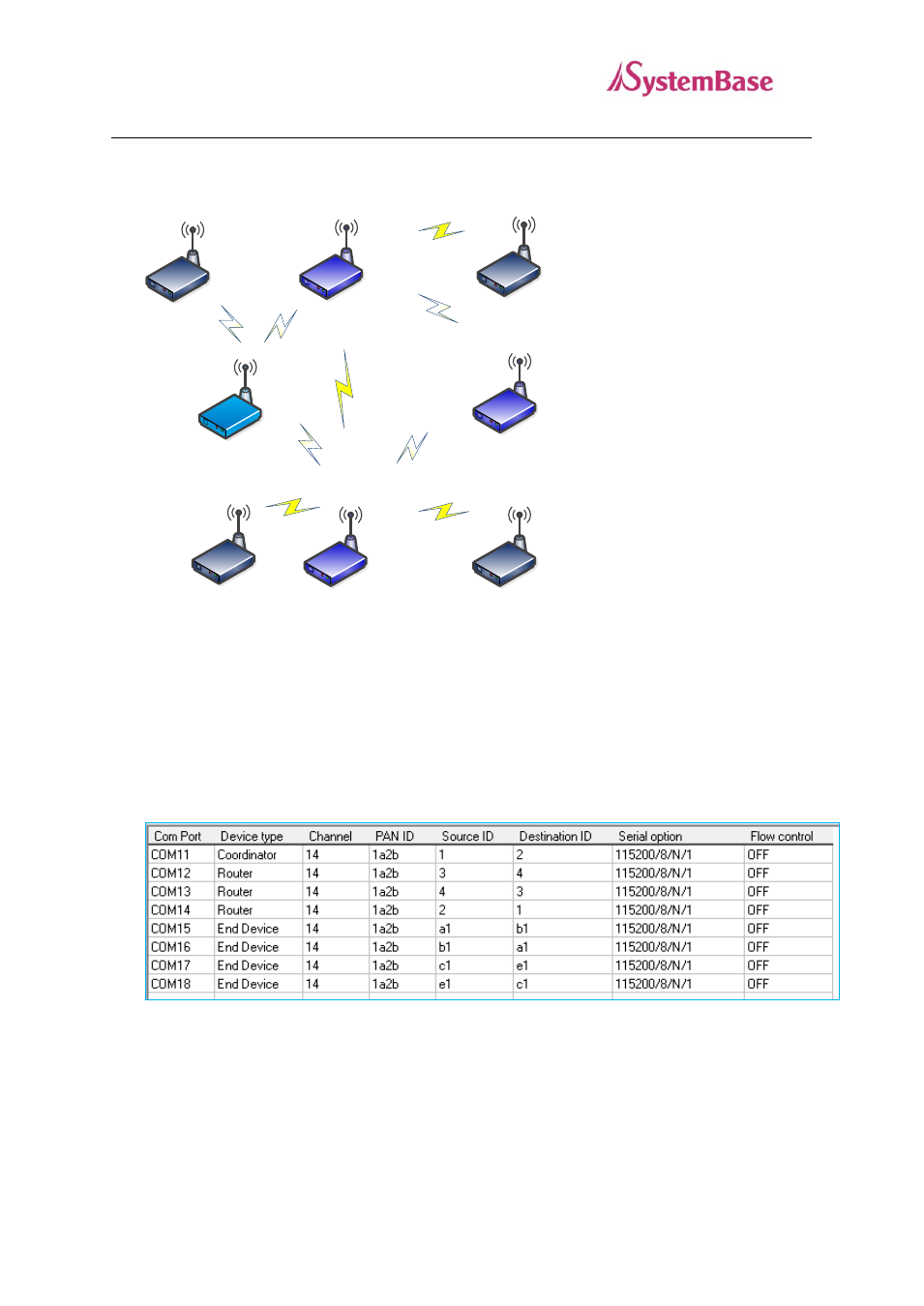

C. Using routers to expand the network
End Device
End Device End Device Router
Router
Router
Coordinator
End Device
When routers are used, 1:N star type connection by one coordinator can be expanded to a tree type or mesh
ZigBee network structure. This can prevent a bottleneck issue where the data is concentrated to one node
and detour traffic when there is a network connection problem from some paths. If there are any obstacles
between devices, or if the physical distance needs to be extended, you can use numerous ways to resolve
the issue utilizing this connection type. Set the network PAN ID and the channel that you want to expand to
the router to automatically detect the devices and add to the network.
The following is an example of an expanded network set by using ZCS Configuration Utility. This is just
one of many examples where the users can set various ways to build their own network.
