ZCS-232 User Guide
7
7. ZCS-232 Network Configuration
If necessary, ZCS-232 can be set and used as an end device, a coordinator, or a router.
The ZigBee end device is located at the end of the ZigBee network which can only connect to ZigBee
coordinator or ZigBee router. Existing only one network PAN, the ZigBee coordinator manages each
devices in the network when ZigBee network is first formed. Expansion of the network is done by ZigBee
router. Without ZigBee coordinator, the network cannot be configured.

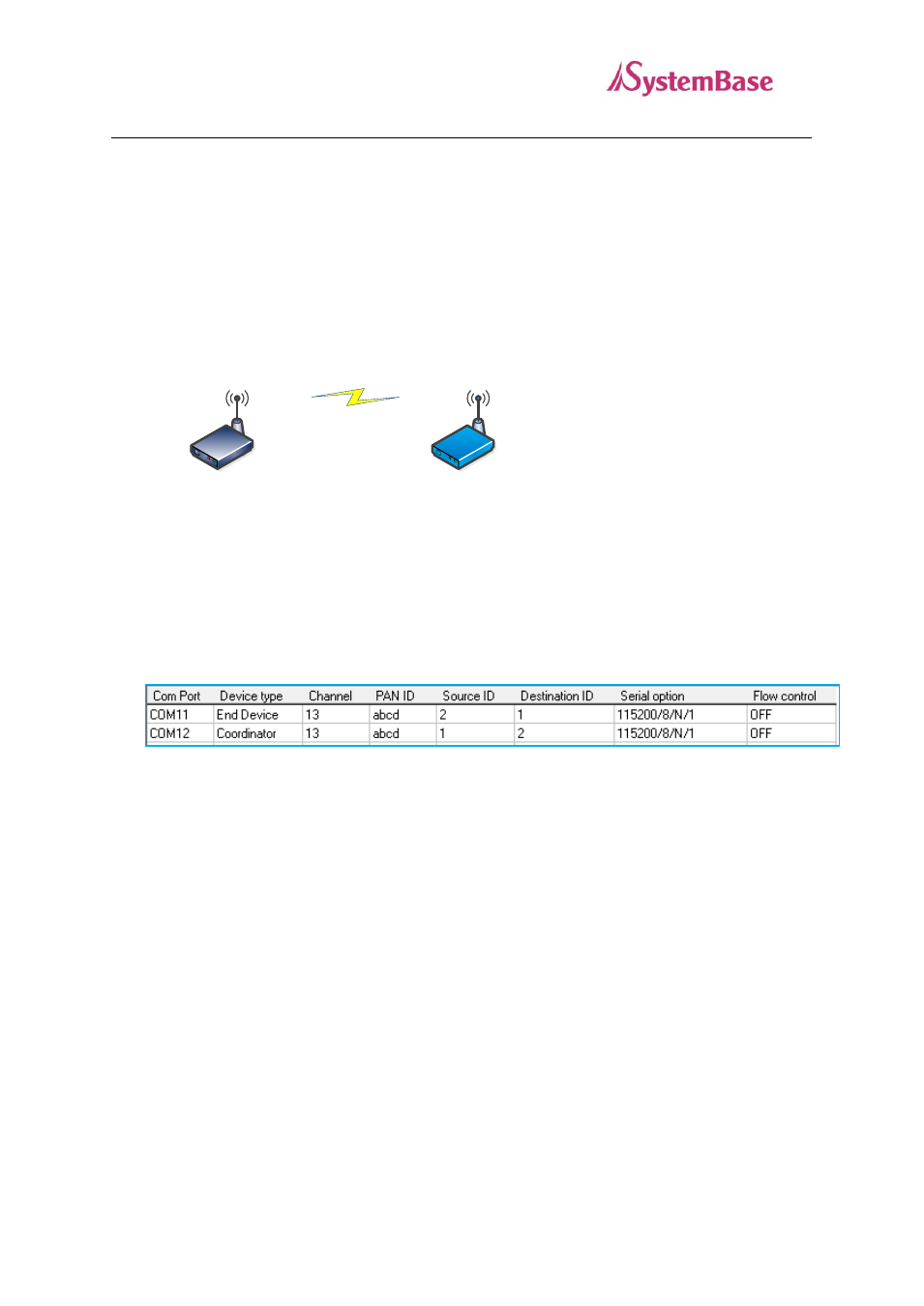

A. 1:1 connection between an End Device and a Coordinator
Coordinator End Device
To use 1:1 connection with ZCS-232, one of each end device and coordinator is required. Each device can
specify a unique source ID. When the source ID of a device trying to send a data is set to the destination ID,
the data can be transmitted. PAN ID and the channel from the coordinator should be applied to the end
device to form a network.
The below is an example of 1:1 connection using ZCS Configuration Utility.
B. 1:N connection with one coordinator and several end devices
