SD505-ADHR Duct Detector Housing With Relay Module & SD505-DTS Installation Instructions
4
7550 Meridian Circle
Maple Grove, MN 55369-4927
763-493-6455 or 800-328-0103
Fax: 763-493-6475
www.silentknight.com
© 2006 Silent Knight PN 151126 Rev C
SD505-DTS Installation
The SD505-DTS is an optional remote test
switch station that connects to the SD505-
ADHR. The SD505-DTS also provides visual
access to the SD505-ADHR in installations
where the SD505-ADHR cannot physically be
seen.
SD505-DTS Wiring
Wire the SD505-DTS to the SD505-ADHR as
shown in Figure 8.

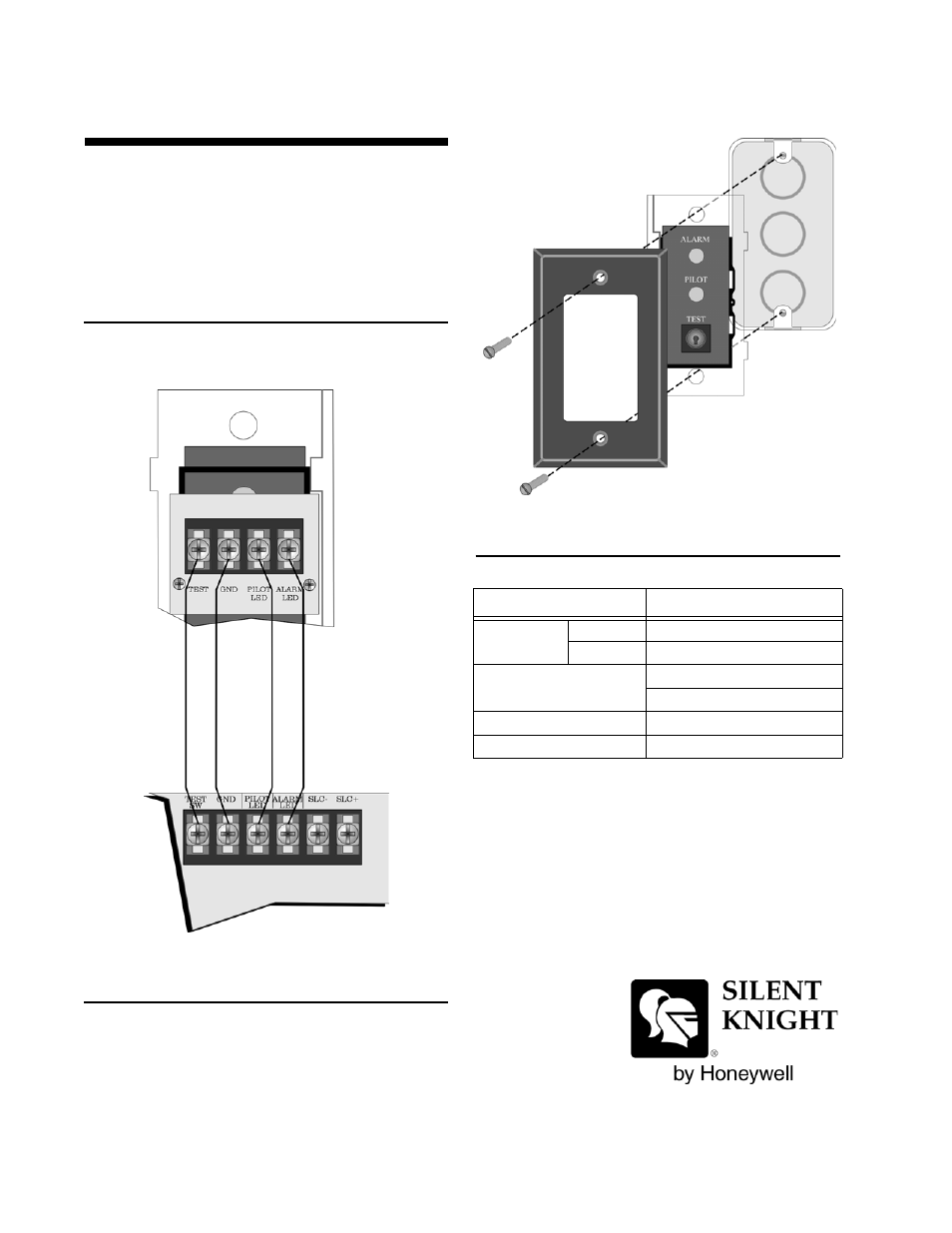

Figure 8: SD505-DTS Wiring Connections
Mounting The SD505-DTS
The SD505-DTS mounts into a single gang
electrical switch box. See Figure 9.
Figure 9: SD505-DTS Mounting and Assembly
SD505-DTS Specifications
Power Limited
Supervised
Parameter Rating
Current Draw Standby: 6 mA
Alarm: 6 mA
Dimensions (including red
trim plate): 4-3/4” H x 3” W x 1-3/4” D
12.07 cm x 7.62 cm x 4.45 cm
Operating Temperature: 32° F to 120° F (0° C to 49° C)
Operating Voltage: 10 VDC
