SD505-ADHR Duct Detector Housing With Relay Module & SD505-DTS Installation Instructions
P/N 151126 3

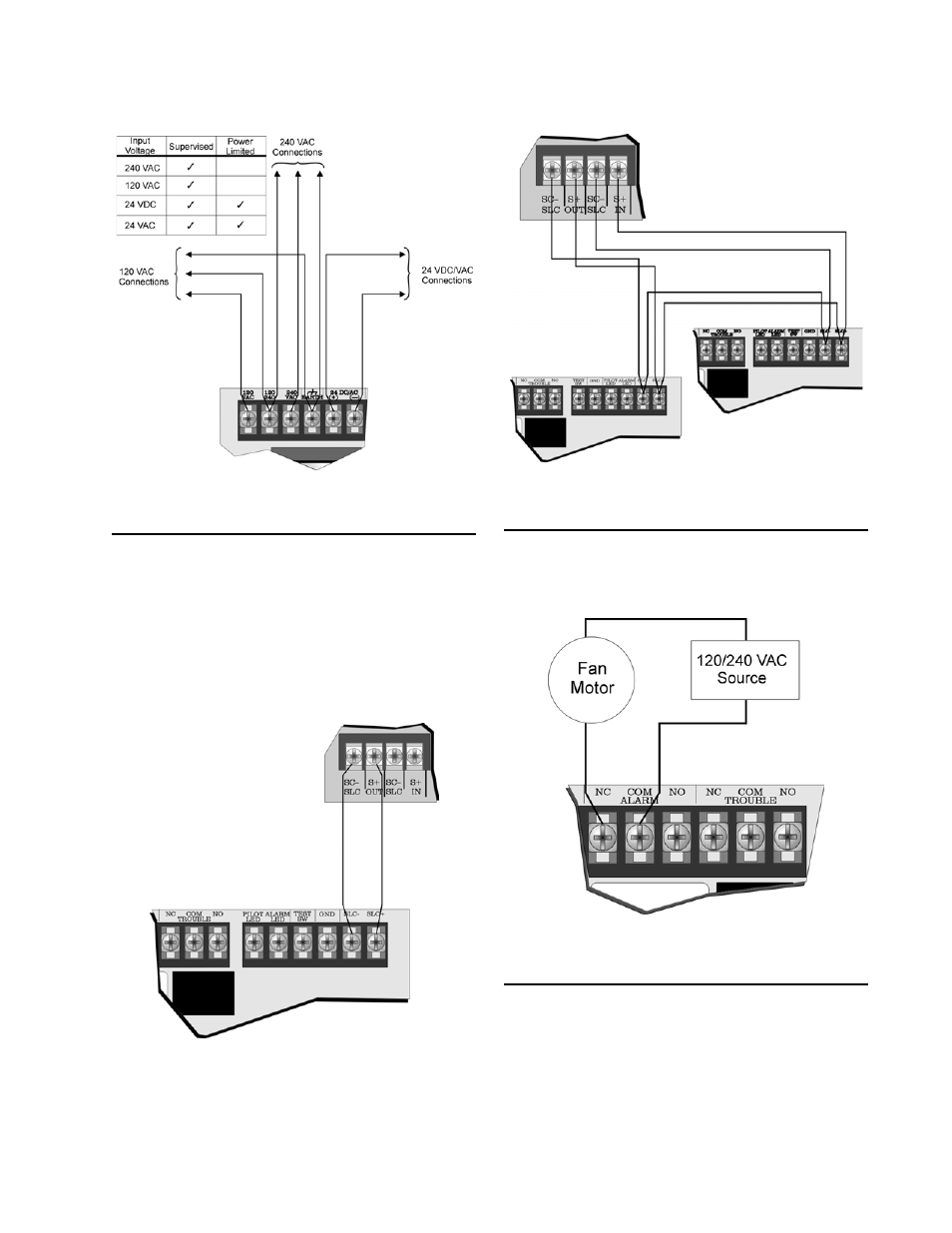

Figure 4: Power Source Connections
FACP Connections
Follow these steps to properly connect the
SD505-ADHR to the FACP:
1. Turn power off and leave the detector head
off.
2. Wire the SD505-ADHR as show in Figure 5
or Figure 6.
Figure 5: Class B (Style 4)
Figure 6: Class A (Style 6)
Alarm Relay
The Alarm relay can be used to shut off a fan
motor of a HVAC system to prevent the transfer
of smoke. See Figure 7.
Figure 7: Fan Motor Shut-off Block Diagram
Trouble Relay
The trouble relay is a form C relay that activates
if the input power is lost.
Supervised
Power Limited
FACP
SD505-ADHR
Supervised
Power Limited
FACP
SD505-ADHR
