Model 5883 Installation Instructions
2
P/N 151194
Connecting the 5883 to Aux power
Connect the power terminals of the 5883 to a 24
VDC power supply as shown in Figure 2.

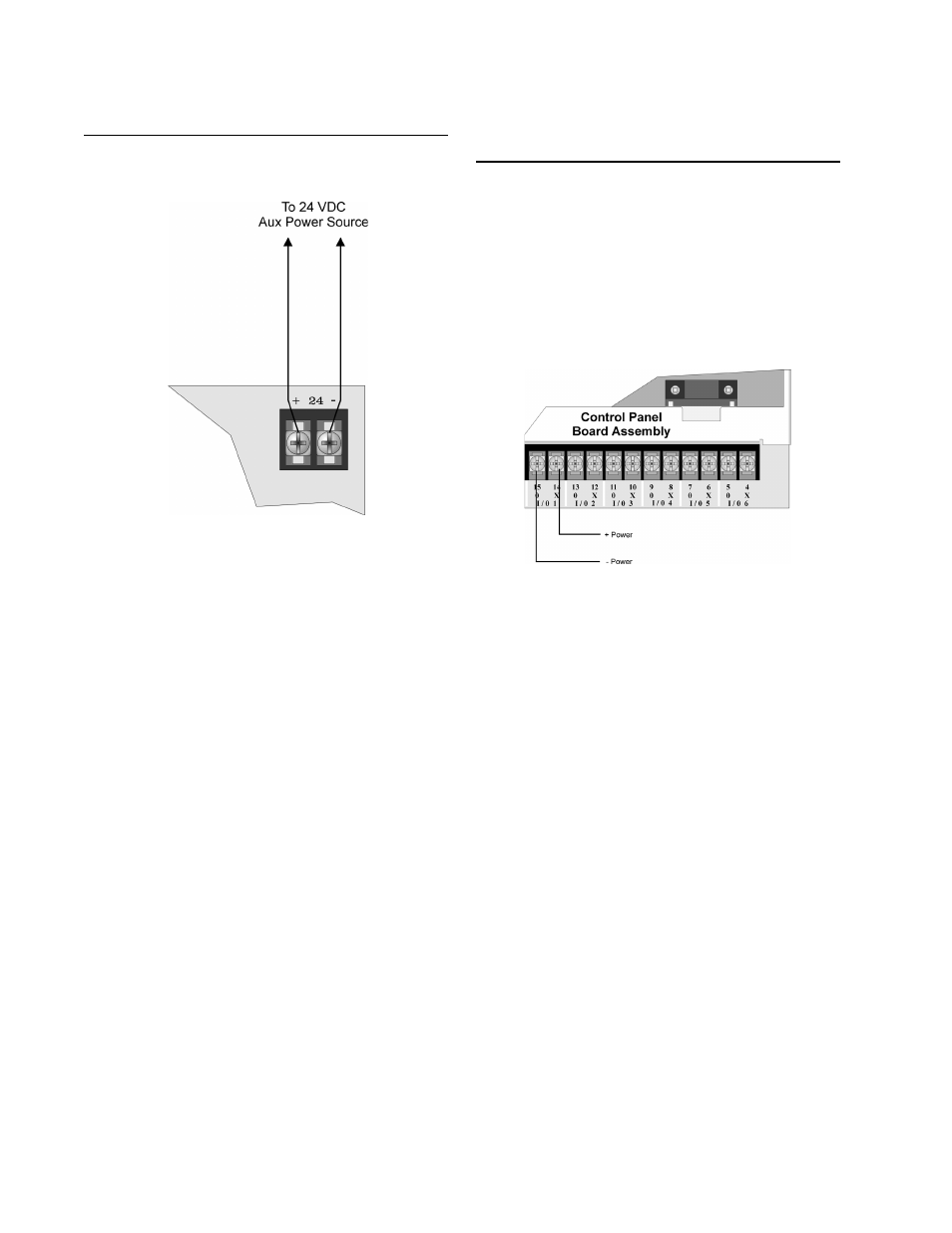

Figure 2: Auxiliary Power Connections
Note: Auxiliary power is supplied by a Regulated UL
listed power supply for Fire Protective Signalling
Systems.
Auxiliary Power Using
Flexput™ Circuits
The 5883 can use aux power from any 24 VDC
source. The following describes how to use the
Flexput circuits as the auxiliary power source:
1. Connect the aux power wires to the Flexput
terminals using “X” terminals as positive,
and “O” terminals as negative power. See
Figure 3.
Figure 3: Flexput Auxiliary Power Output
2. Configure the auxiliary power output for
constant output through programming. Refer
to the control panel installation manual
(P/Ns 151139 & 151209).
+
–
