Model 5495 Distributed Power Module Installation Manual
18 151161
4.8.1 Selecting the Standard Input/Output Configurations
Figure 4-7 and Figure 4-8 show the position of each switch for the non-synchronized
input and output configurations. The position of Switches 4 and 5 does not affect the
relationship of inputs to outputs.
Note: The 5495 checks switches 1, 2, 3, and 6 only when powering up the 5495. If you change these
switch settings, you must remove both the AC power and the battery to make the 5495 recognize
the new settings.

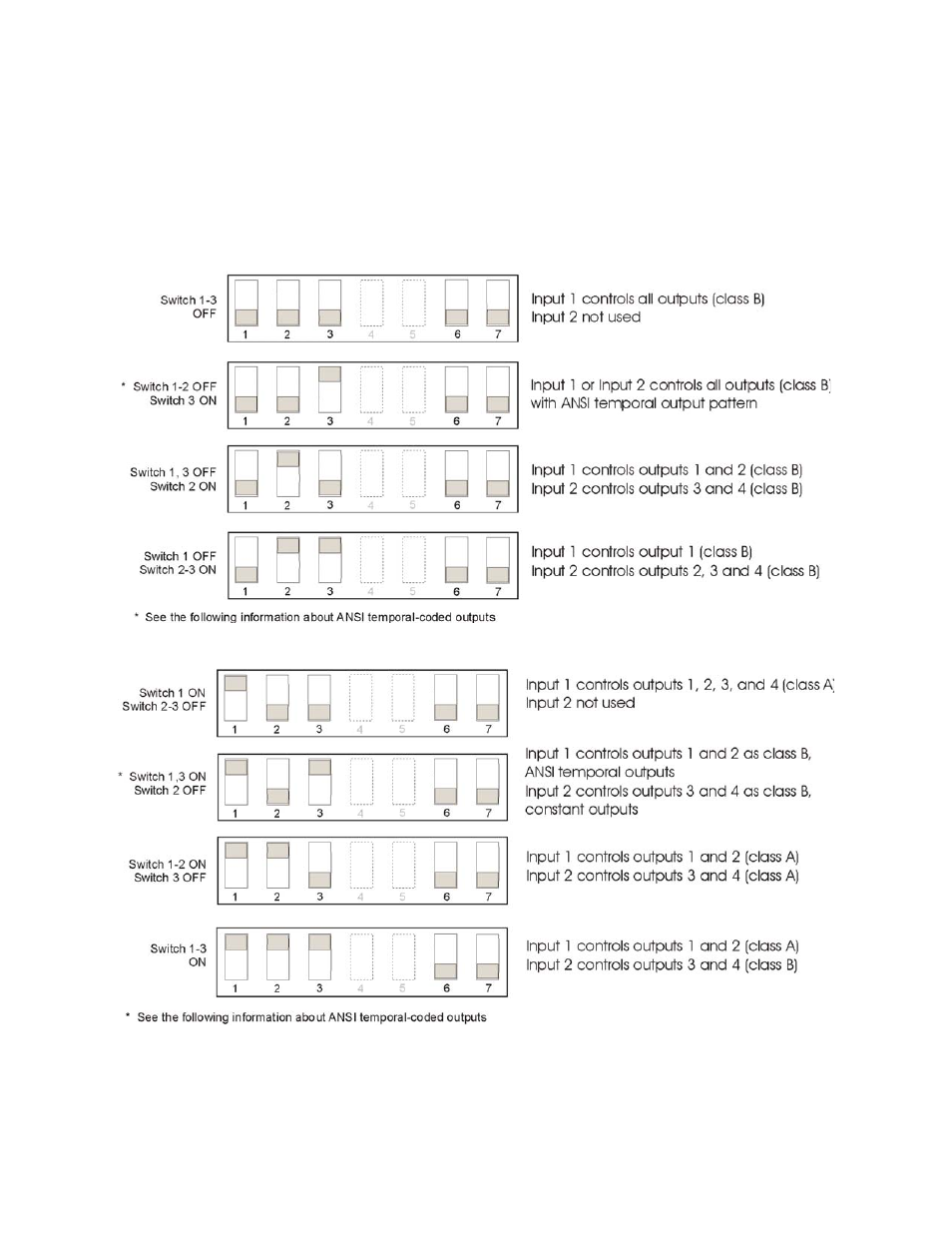

Figure 4-7 Setting DIP Switches 1-3
Figure 4-8 Setting DIP Switches 1-3 (Continued)
Note: For 100 mS input signal debounce with no synchronization DIP switches 6 and 7 must be turned
On.
