7 battery connection – SilentKnight 5495 6A Distributed Power Module User Manual
Page 20
Model 5495 Distributed Power Module Installation Manual
16
151161
4.7
Battery Connection
Use two 12 VDC, 7 AH gel cell batteries inside the 5495 cabinet. For batteries larger
than 7 AH (not to exceed 35 AH) use the RBB Remote Battery Box. It is
recommended that you replace the batteries every five years. The following steps
and diagram explain how to connect the batteries.
1. Connect the black wire to the negative (-) side of Battery #1.
2. Connect the jumper wire provided (PN 140694) from the positive (+) side of Bat-
tery #1 to the negative side of Battery #2.
3. Connect the red wire to the positive (+) side of Battery #2.

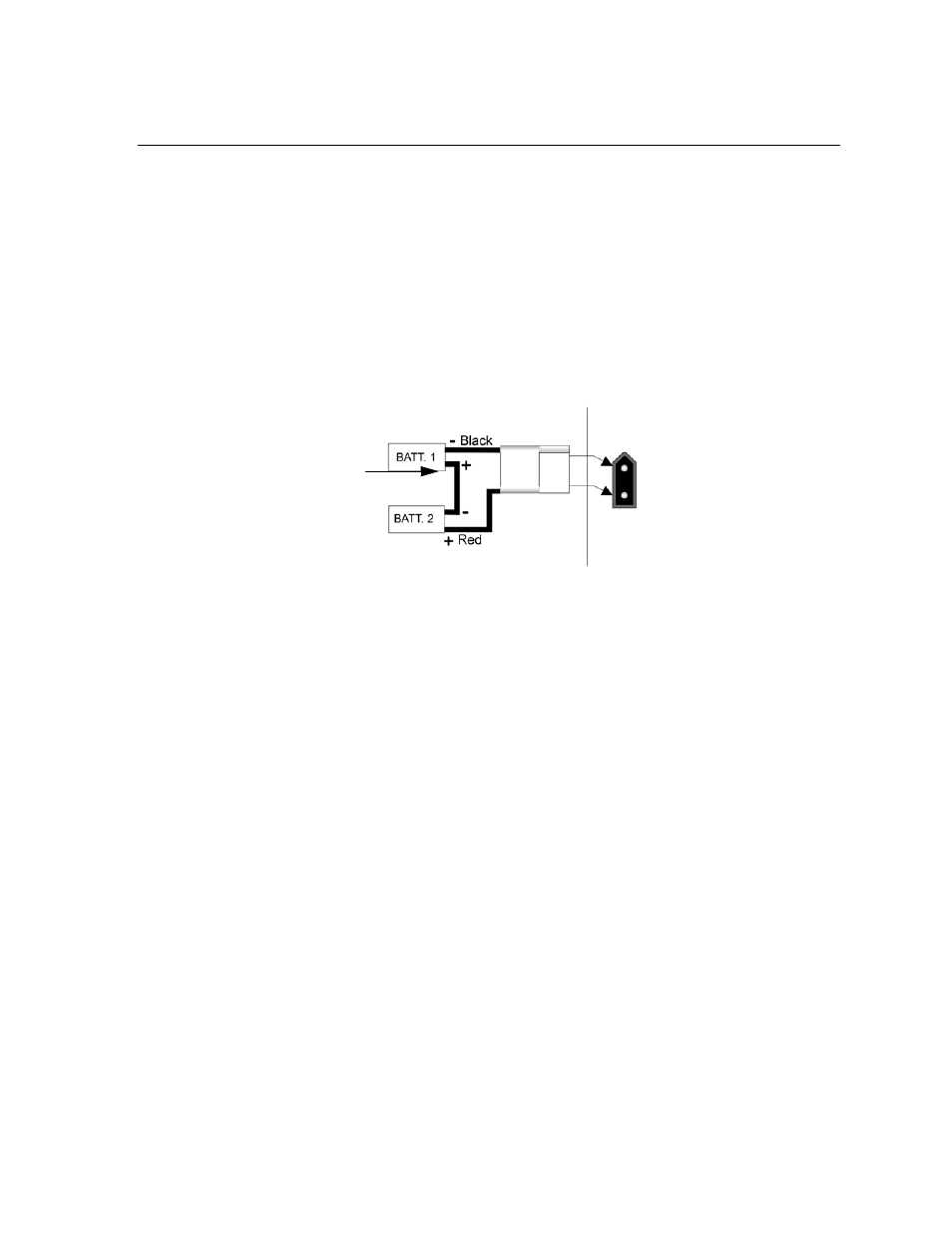

Figure 4-6 Battery Connection
Model 6712
(Supervised)
Jumper
(P/N140694)
