SIG SAUER SIG716 Rifle User Manual
Page 73
when it counts
™
www.sigsauer.com
73
1. re-insert the bolt into the bolt carrier with the extractor oriented to the right side of the bolt carrier; and

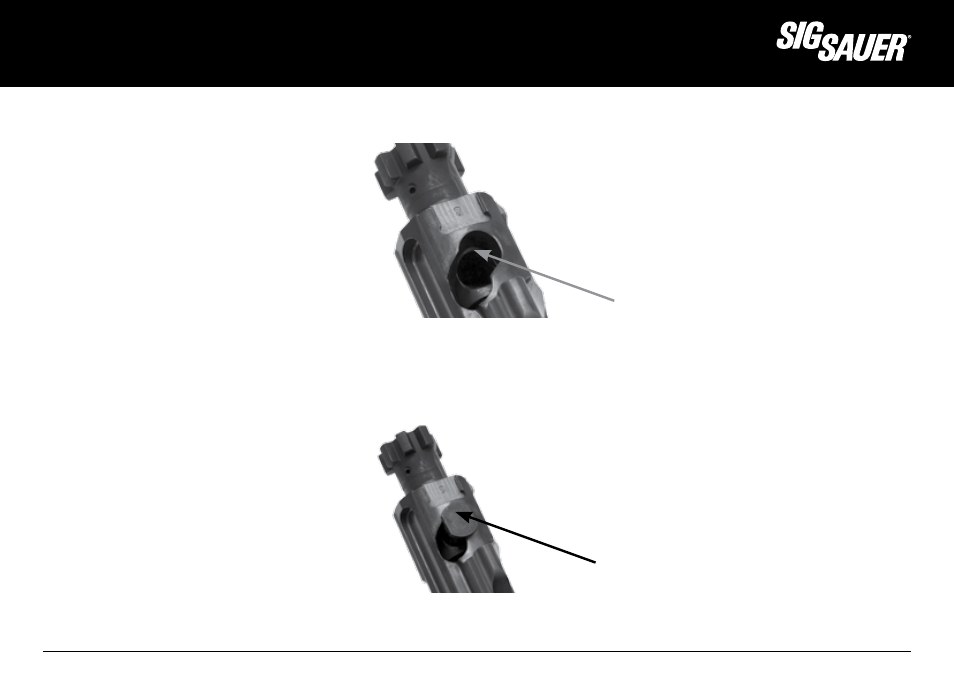

FIG 44 alIGn Bolt Into carrIer Body
2. Pull the bolt forward to the unlocked position; and align the cam pin hole inserting the cam pin into the bolt; and
3. insert the firing pin into the tail shaft of the bolt.
FIG 45 cam PIn Back Into Bolt and carrIer
alignment of Bold and carrier
camp Pin installed
