4 quad rail removal – SIG SAUER SIG716 Rifle User Manual
Page 59
when it counts
™
www.sigsauer.com
59
7.4 Quad Rail Removal
cauTion: do noT reMoVe THe Quad rail aSSeMBly unleSS THe uPPer and loWer receiVerS are SeParaTed.
reMoVal of THe Quad railS Will eXPoSe THe PuSHrod aSSeMBly. SHould THe rifle fall or STriKe a Hard
Surface, THe PuSHrod aSSeMBly could Be daMaged effecTing oPeraTion of THe rifle. SeParaTing THe
receiVerS reduceS THe oVerall WeigHT of THe rifle reducing THe riSK of daMage SHould THe rifle fall or
STriKe a Hard oBJecT or Surface.

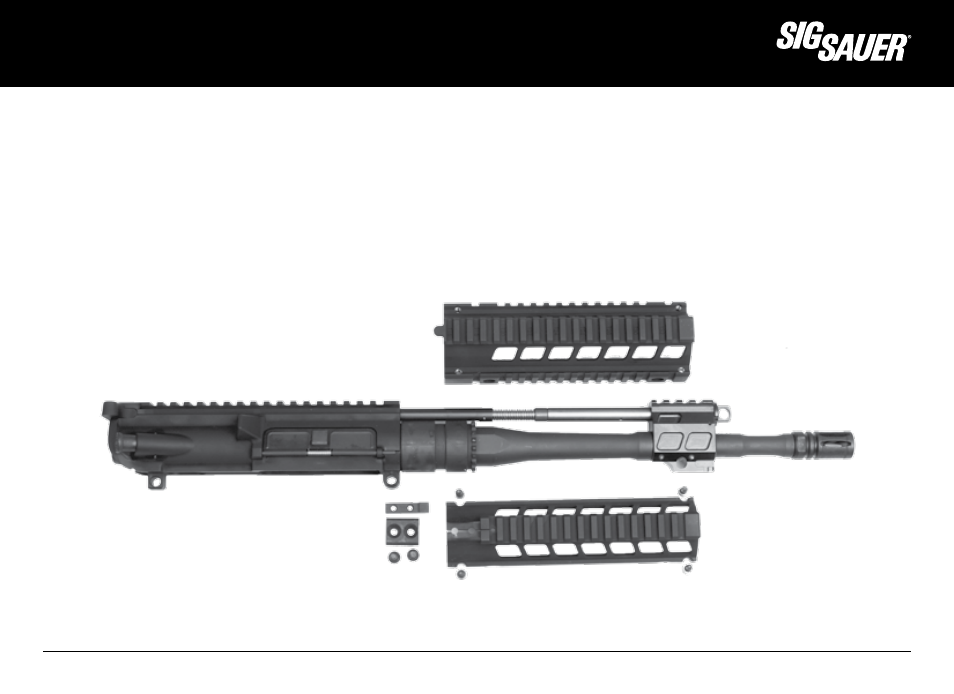

FIG 31 exPloded vIew oF Quad raIl
