7.3 gas Valve and Pushrod Removal
1. depress the detent on the lower right side of the gas block.
2. rotate gas valve clockwise until the lugs are clear of the gas block.
3. Pull the gas valve forward out of the gas block.
4. Tilt the upper downward and allow the push rod to slide from the gas block.
5. Separate the gas valve from the pushrod.

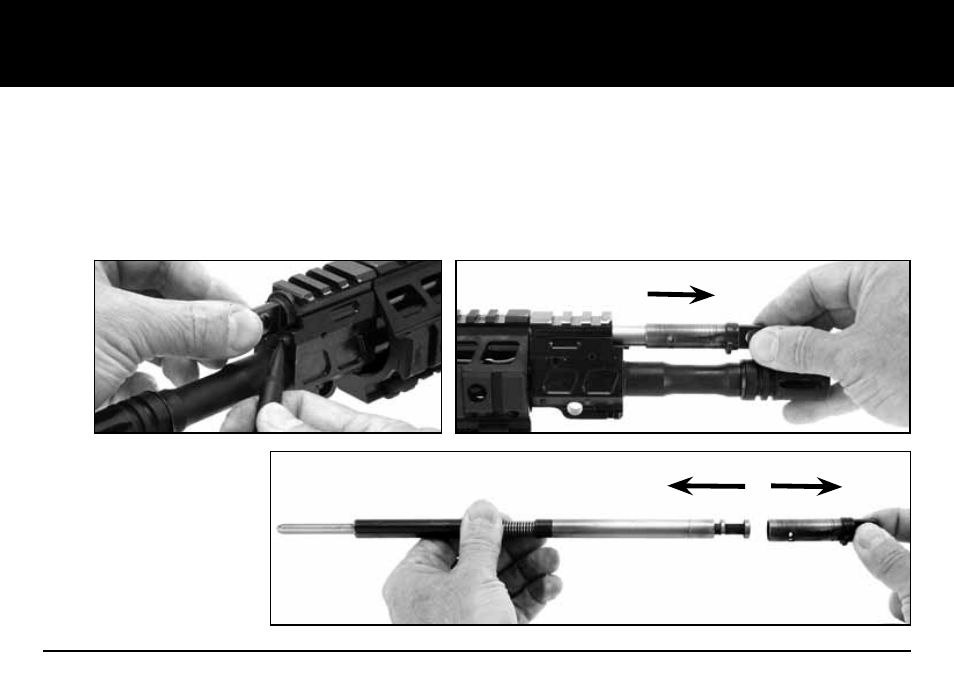

FIG 30 PIcture oF the
Gas valve BeInG removed
