4 Program the Ready-or-Not
4.1 Connect the test tool to the PC
To connect the Ready-or-Not test tool for programming, follow these
steps:

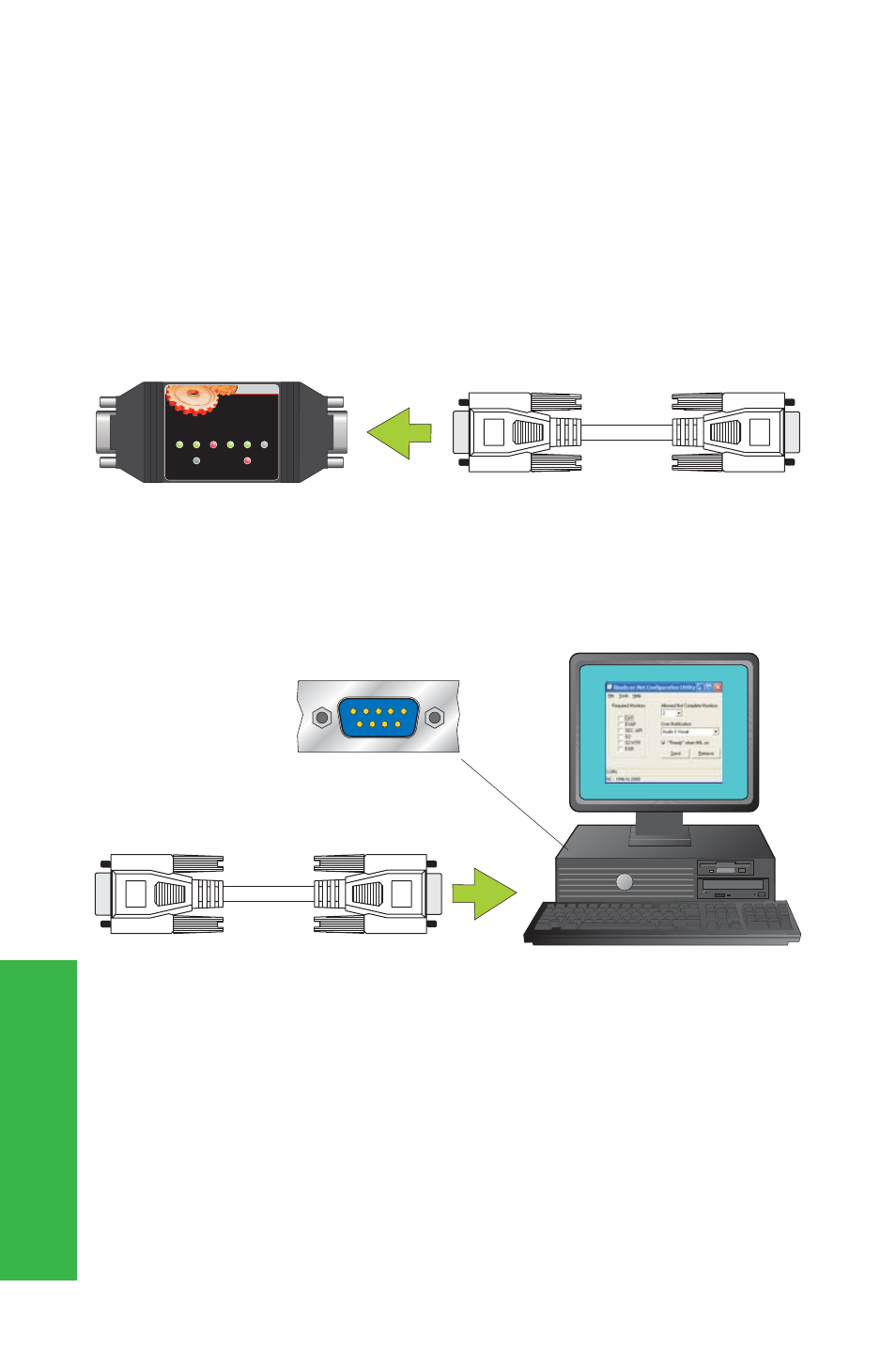

1. Plug the DB9 male end of the serial cable into the DB9 female
connector of the test tool, as shown:
2. Plug the other end of the serial cable into the COM port of your
PC. Note that the COM port is a
, male connector.
The Ready-or-Not is designed to be powered from the COM port in
programming mode, and does not require an additional power
supply.
9-pin
Hint: Some third-party USB to Serial converters may not provide
enough voltage for the proper operation of the Ready-or-Not.
If your PC does not have a built-in COM port, refer to the "Accesso-
ries" chapter of this User Guide for information on ordering an
approved USB to Serial converter.
Ready-or-Not Ready-or-Not Ready-or-Not Ready -or- Not TM
CA
T
EV
AP
SEC.
AIR
O 2 O
HTR
2 EGR
READY NOT READY
DELL DELL
COM Port
Program
the
test
tool
12 Ready-or-Not User Guide TM
