24
12
13

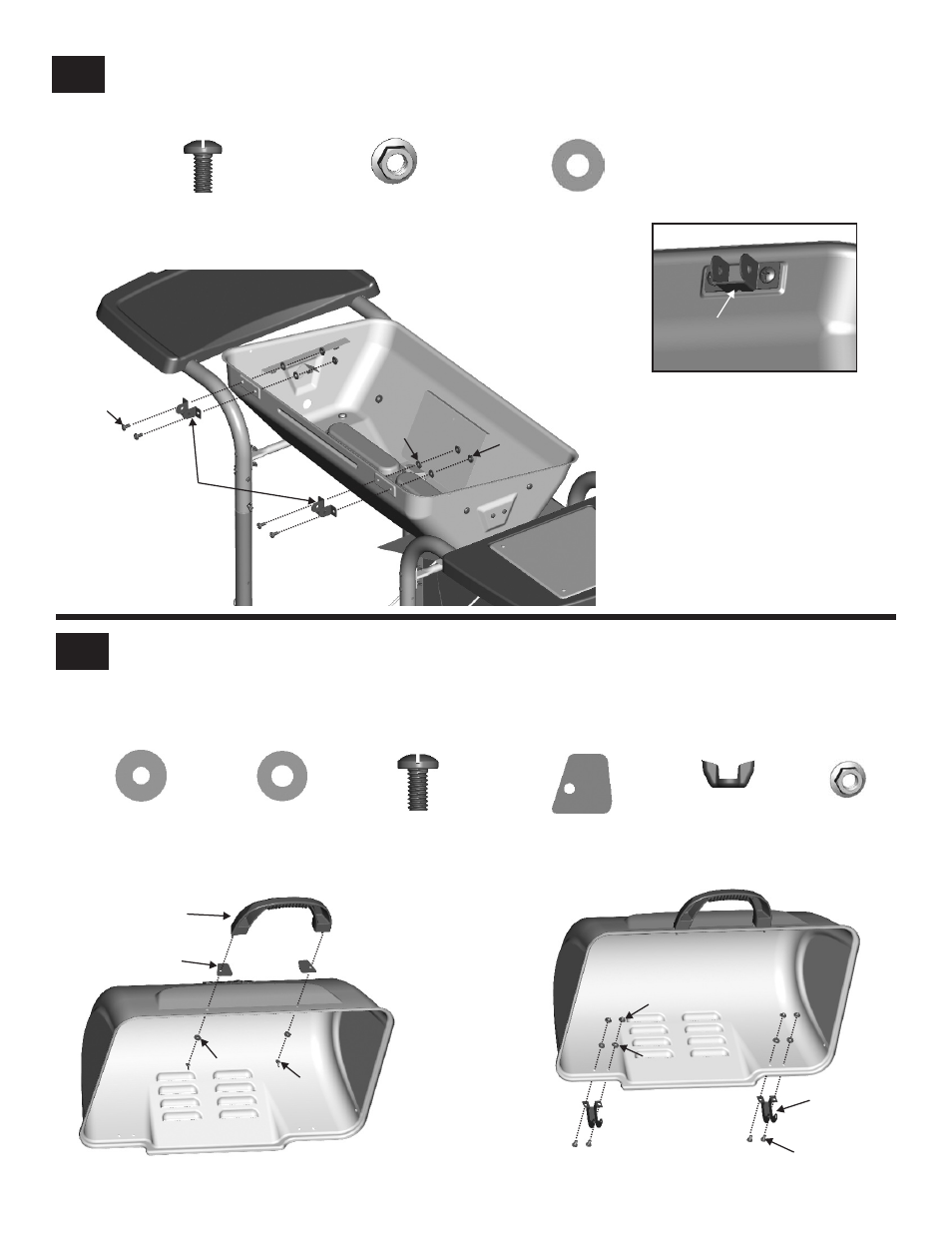

Lower Hinges
Attach lower hinges to back of firebox using two 1/4’’-20x1/2’’ machine screws,7x15 fiber washers and 1/4’’-20 flange
nuts per hinge. The center flat portion of the hinge should be at the bottom (see inset below). □
Lid Handle and Upper Hinges
Attach handle and two insulation washers to front of lid. Inside lid, secure with two 5x15 fiber washers and #10-24 wing
nut (A).
Attach upper hinges to back of lid using 1/4’’-20x1/2’’ machine screws, 7x15 fiber washers and 1/4’’-20 flange nuts per
hinge. Hinges should curve downward when properly installed (B).
□
□
Center flat portion
of hinge on bottom
Lower Hinge
1/4’’-20x1/2’’
Machine Screw
Qty.4
1/4’’-20
Flange Nut
Qty.4
7x15
Fiber Washer
Qty.4
1/4’’-20x1/2’’
Machine Screw
1/4’’-20
Flange Nut
7x15
Fiber Washer
5x15
Fiber Washer
Qty.2
7x15
Fiber Washer
Qty.4
1/4’’-20x1/2’’
Machine Screw
Qty.4
Insulation Washer
Qty.2
1/4’’-20
Flange Nut
Qty.4
#10-24
Wing Nut
Qty.2
Handle
Insulation Washer
5x15
Fiber Washer #10-24
Wing Nut
Upper Hinge
1/4’’-20x1/2’’
Machine Screw
1/4’’-20 Flange Nut
7x15 Fiber Washer
A
B
