ASSEMBLY
17
2
1 Left leg
□
□

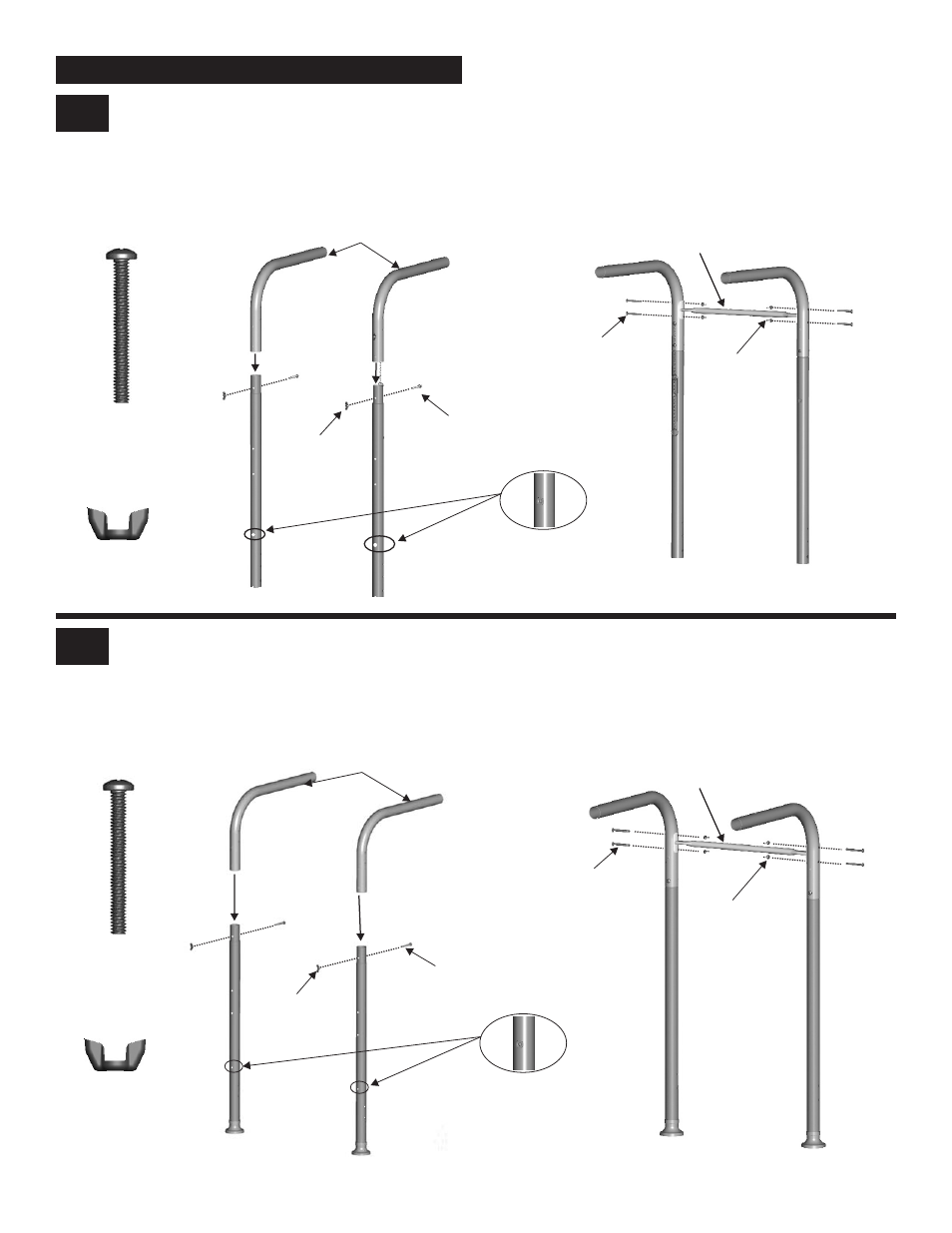

Place the leg shelf support with match holder onto leg as shown. Attach another leg support to other leg with no leg
extender. Attach each side with #10-24x1-3/4" machine screw and #10-24 wing nut .
Attach one support bar to the upper part of legs with #10-24x1-3/4" machine screws and #10-24 wing nuts (B).
NOTE: Do not tighten screws until Step 5.
(A)
Right leg
□
nut. (A)
□ Attach one support bar to legs with #10-24x1-3/4" machine screws and #10-24 wing nuts.(B)
NOTE: Do not tighten screws until Step 5.
Place leg shelf support onto leg with leg extender. Attach each side with #10-24x1-3/4" machine screw and #10-24" wing
A
Support Bar
Leg Shelf Support
A
B
#10-24x1-3/4’’
Machine Screw
#10-24x1-3/4’’
Machine Screw
#10-24 Wing Nut
#10-24
Wing Nut
#10-24x1-3/4’’
Machine Screw
Qty.6
#10-24
Wing Nut
Qty.6
Pay attention to the orientation of
Left Leg during assembly
Pay attention to the orientation of
Right Leg during assembly
A
B
Leg Shelf Support
Support Bar
#10-24x1-3/4’’
Machine Screw
#10-24
Wing Nut
#10-24 Wing Nut
#10-24x1-3/4’’
Machine Screw
#10-24x1-3/4’’
Machine Screw
Qty.6
#10-24
Wing Nut
Qty.6
