19
5
6
#10-24x1/2’’
Machine Screw
Qty.2
Push Fastener
Qty.4
A
B

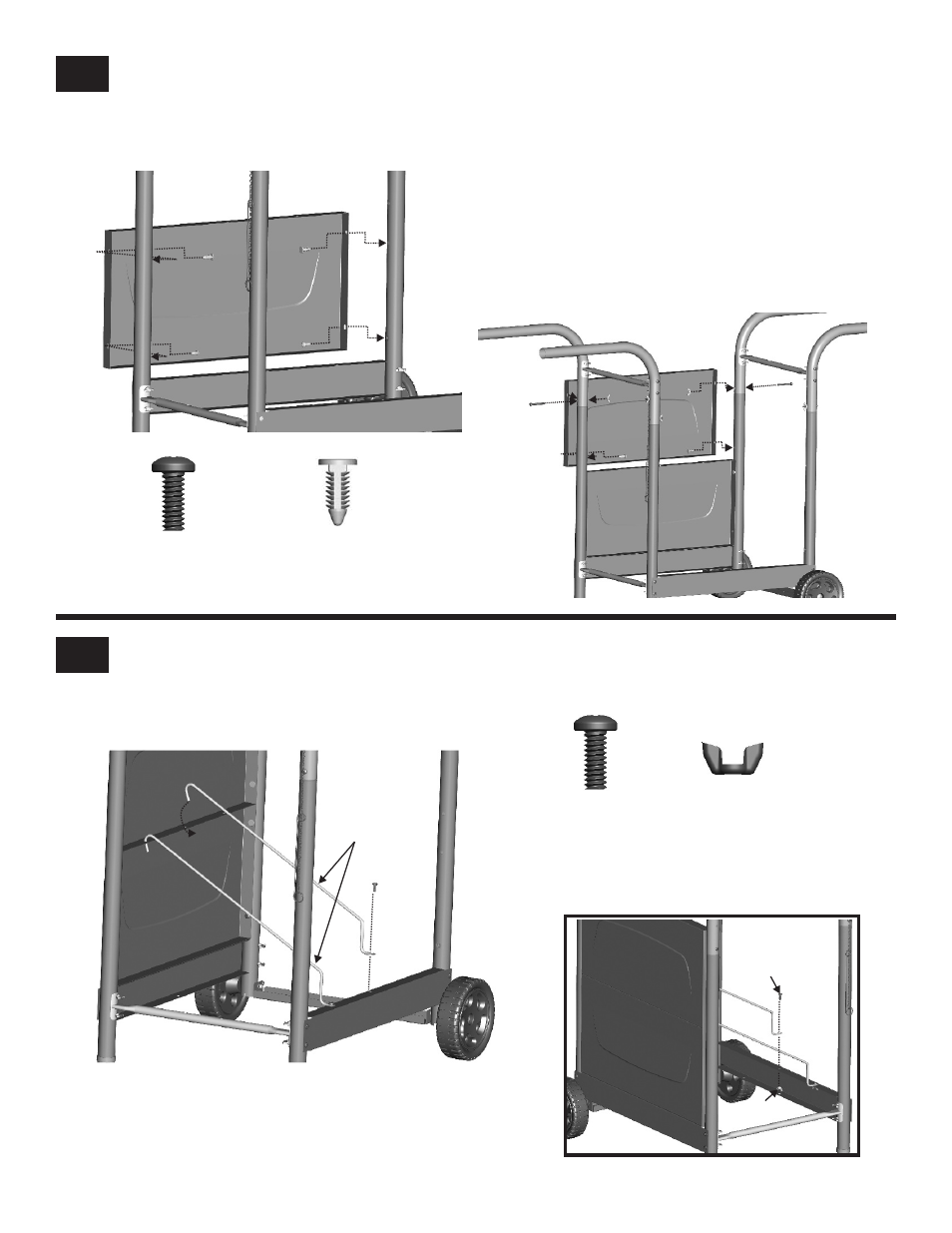

Front Panel
Place front panel with holes side on top, attach to front of cart with #10-24x1/2" machine screws in lower holes and with
push fasteners in upper holes (A).
You will need to remove the wing nuts and screws installed in step 1A to attach another front panel. And use push
fasteners to attach the front panel on the lower holes (B). Tighten all screws from previous steps.
□
□
Tank Exclusion
Hook the tank exclusion wires onto back of front panels and rear rail as shown. Secure with #10-24x1/2’’ machine screws
and #10-24 wing nuts.
#10-24x1/2’’
Machine Screw
#10-24
wing nut
Tank exclusion wire
#10-24x1/2’’
Machine Screw
Qty.2
#10-24
Wing Nut
Qty.2
