Char-Broil 463741510 User Manual
Page 18
18
3
4

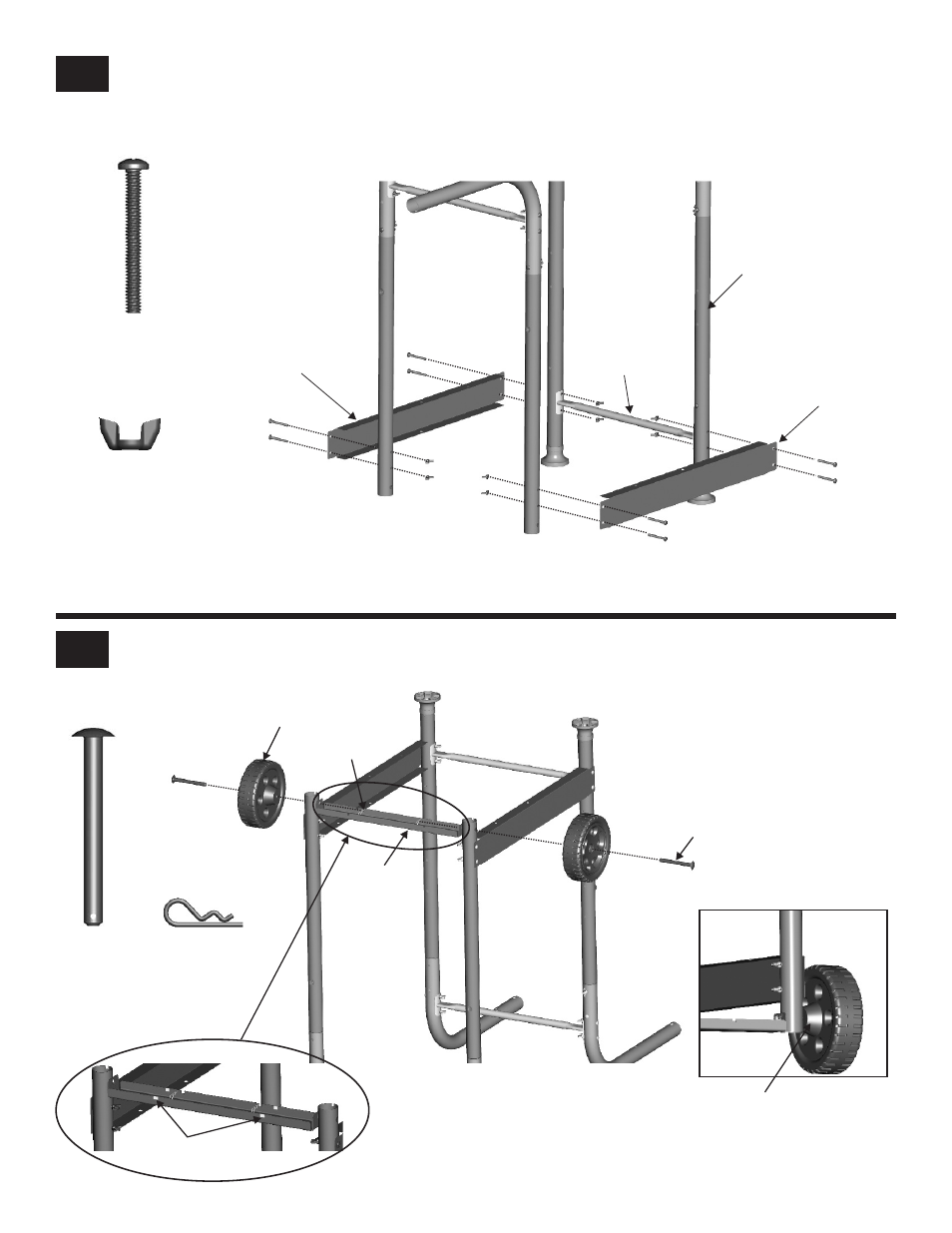

Place support bar between right legs, and place two rails on outside of leg. Attach with #10-24x1-3/4" machine screws and
#10-24 wing nuts. On left leg attach rail as shown.
Turn assembly upside-down. Insert axle bolts into wheels.
position tank support bracket between left legs.
Insert 5/16’’ axle bolt through leg and bracket and secure with hitch pin.
Facing the back,
#10-24x1-3/4’’
Machine Screw
Qty.8
#10-24
Wing Nut
Qty.8
Place rail with
rating label to back
Right leg
Rail
Support Bar
5/16’’
Axle Bolt
Qty.2
Hitch Pin
Qty.2
“Cone” side of wheel against leg.
5/16’’ Axle Bolt
Wheel
Hitch Pin
Tank support
bracket
Notch
