4. Install the Louvers in the Louver Frame Using the Compression

Springs (See FIGURE 2.)

Before actually installing the louvers, note the louver curve and deter-
mine how the louvers should be positioned to provide the optimal throw
pattern. Depending on the desired airflow pattern, louvers may be in-
stalled with the curve all the same direction (either way) or the right half
one way and the left the other as illustrated in FIGURE 2.
Instructions:

a) With the wider section facing out of the heater, place one of the

compression springs over the tab on the notched end of the louver.

b) The end with the spring can go in either direction depending on the

throw pattern. See FIGURE 2. Slide the tab with the spring into one of
the holes in the frame. Push the louver, compressing the spring enough
to place the tab on the other end into the corresponding hole on the
other side of the frame.

c) Continue installing until all louvers are in place.

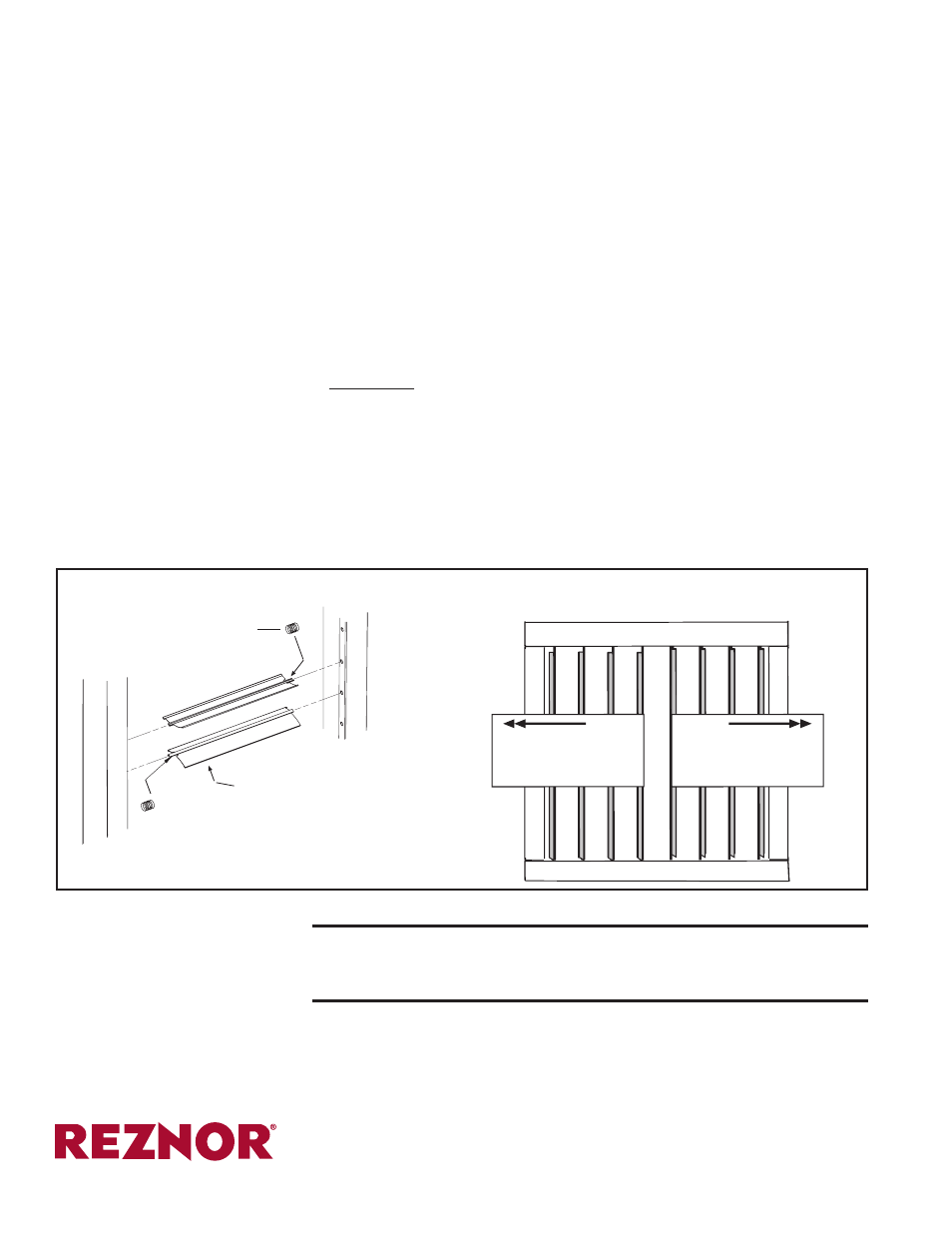

FIGURE 2 - Installing Louvers

Adjust the louvers to provide the desired throw pattern.

CAUTION: To avoid getting burned, adjust louvers while heater
is not in operation. If louvers are adjusted while heater is in
operation, wear protective gloves.

Turn on the electric and the gas. Light by following the lighting instruc-
tions on the heater. Check for proper operation.

Wider side of the louver

blade must always be

facing out of the heater.

Compression Spring

Airflow direction;

springs are on

the upper end.

Airflow direction;

springs are on

the lower end.

Airflow direction depends on how the
louvers are installed.

the louvers are not installed in the discharge opening, follow the instruc-
tions in the heater installation manual (or Step 4 below) and install them
now.
Using the 3/8” screws (P/N 195638) from the kit, attach the louver frame
tabs to the heater discharge opening.
Use the 1/2” self-drilling screws (P/N 195249) to attach the other two
sides of the louver frame to the heater outlet. Use the holes in the louver
frame supports to locate the screws.
