Form RZ-NA I-LDAP-L, P/N 208898, page 1
APPLIES TO:
Model LDAP
4-Way Louvers,
Option CD32
Installation Form RZ-NA I-LDAP-L
®
All Model LDAP heaters have louvers. By adding optional perpendicular lou-
vers, the discharge air can be directed to provide a larger or smaller throw
pattern.
Description
Installation
Instructions
WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause
property damage, injury or death. Read the installation, operation, and maintenance instructions
thoroughly before installing or servicing this equipment.
Installation should be done by a qualified agency in accordance with these
instructions and in compliance with all codes and requirements of authorities
having jurisdiction.
1. Assemble the Louver Frame (See FIGURE 1.)
Using the 3/8” long screws in the kit, attach both sides to the supports.
Components
Model LDAP
400
800
1200
Option Pkg P/N
208091
208884
208885
Components
Louver
(7) 195578 (14) 195578 (21) 195578
Louver Frame Support
(2) 207937 (4) 207937 (6) 207937
Louver Frame Side
(2) 207936 (4) 207936 (6) 207936
Screws, #8-18 x 3/8" long, AB point, slotted
indented serrated hex washer head
(18) 195638 (36) 195638 (54) 195638
Compression Springs
(7) 195046 (14) 195046 (21) 195046
#8 x 1/2" long Teks (self-drilling screws)
(6) 195249 (12) 195249 (18) 195249
2. If the heater is installed, for your safety, turn off the gas and the
electrical power before installing the louver frame assembly.
3. Install the Assembled Louver Frame
Position the assembled louver frame in the heater outlet so that the holes
in the tabs on the two sides are lined up with the holes in the heater. The
tabs fit between the louvers already installed in the discharge opening. If
Louver Frame
Side (P/N 207936)
(sides are identical)
Louver Frame
Support (P/N 207937)
(supports are identical)
Assemble louver frame with screws
provided (P/N 195638).

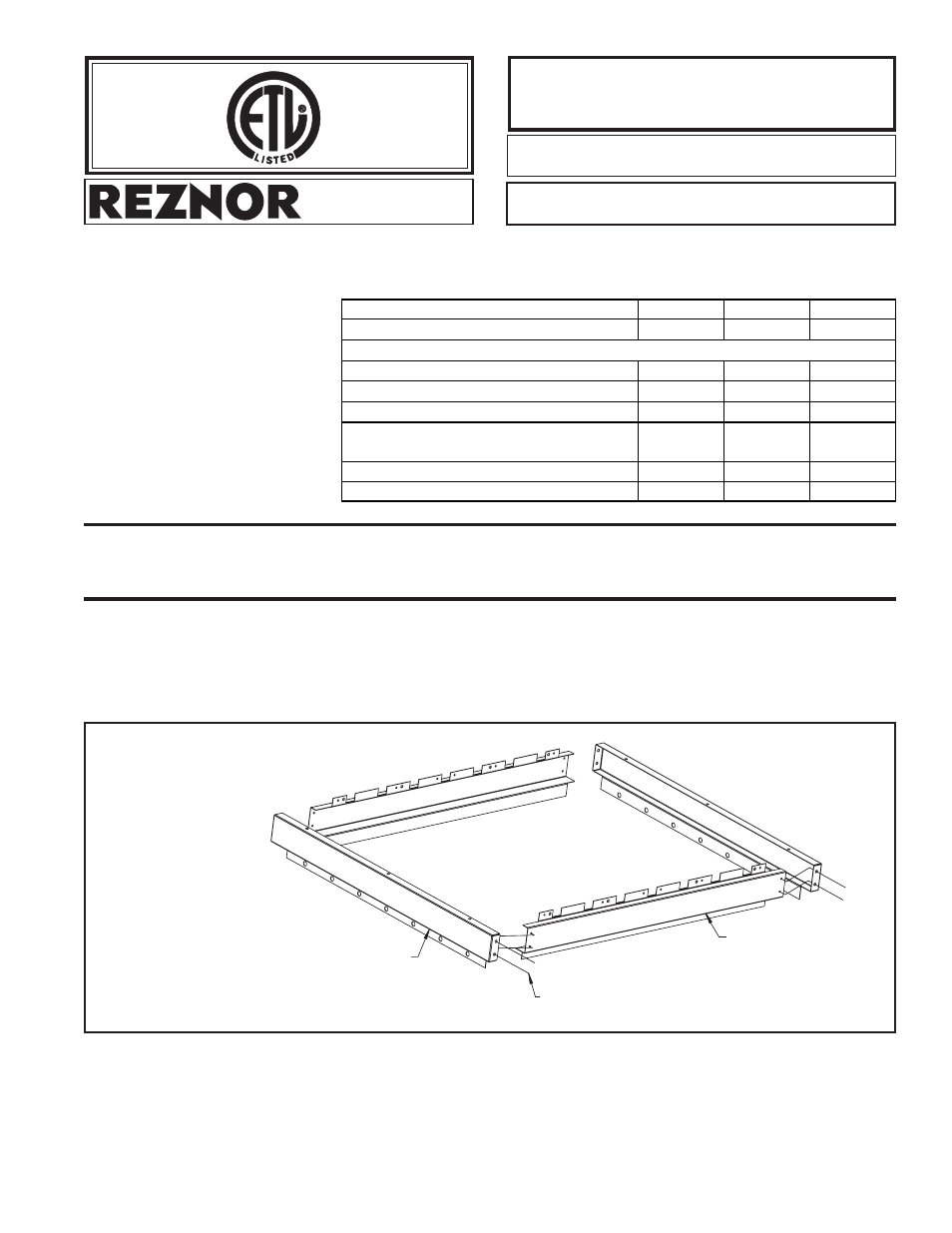

FIGURE 1 - Assemble
the Louver Frame
