Form RZ-NA-I-RDF-WH, Page 4
P/N 91582, Center
Louver Support
(attach one to the top and
one to the bottom of
the inside of the hood)
5. Install Filters, Block Off Sections, and Side Panels
On cabinets with filters, slide the filters and blockoffs on to the filter racks.
If the systems has an optional dirty filter switch, follow the instructions in the installation manual (Form 440) to connect the sensing tubes.
Slide the "door" panels into position on each side of the cabinet section. Fasten each panel with two 1/2" long screws.
Follow the instructions in the installation manual (Form 440) to complete installation and startup of sytem.
Assembly and Installation Instructions (cont'd)
P/N 91576,
Hood Section
Top

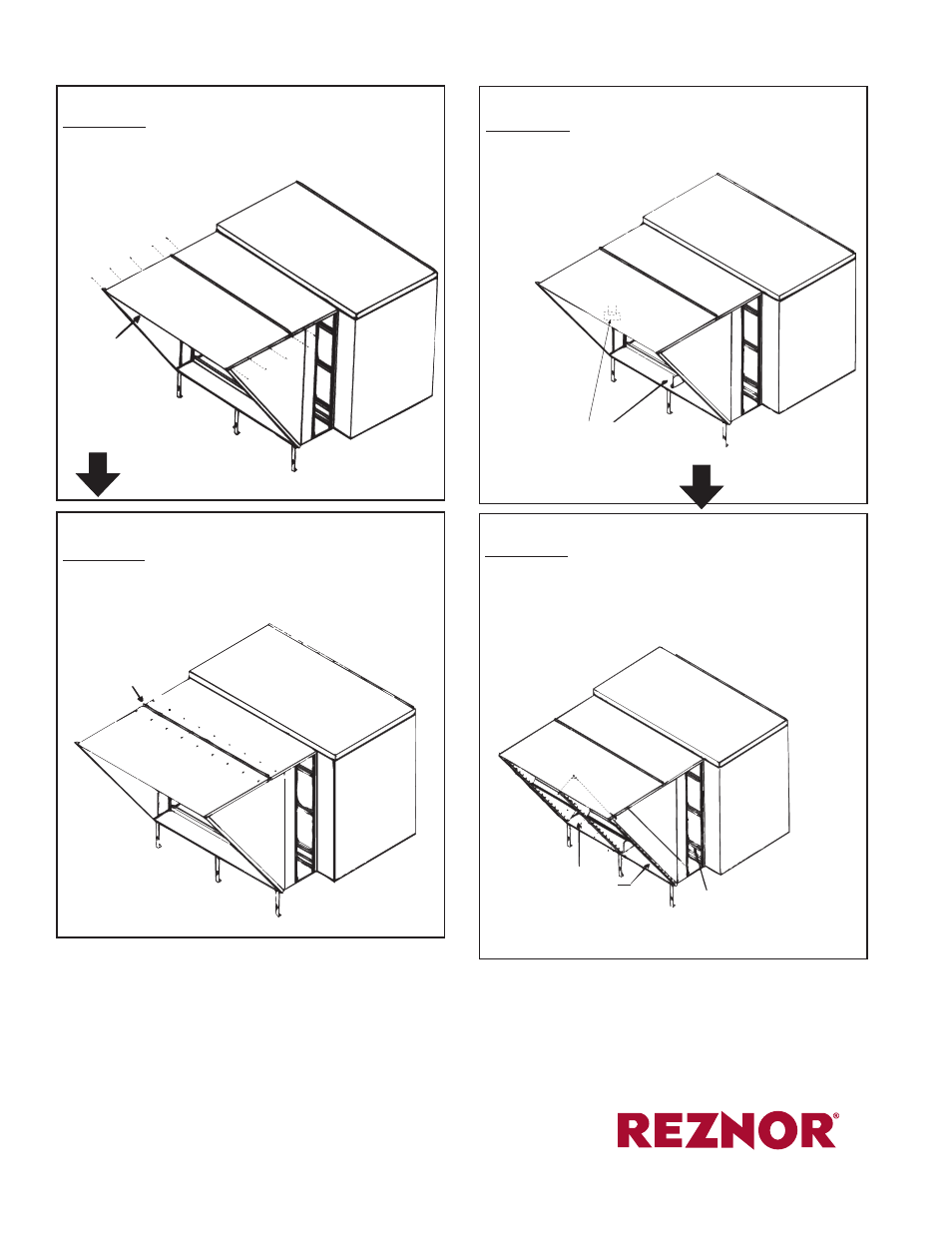

Step 4B - Attach Hood Section Top
Parts Required - Hood section top and ten 1/2" long screws
Attach hood section top as illustrated.
P/N 91577,
Top Clamp
Step 4C - Install Top Clamp
Parts Required - Top clamp and nine 5/8" long screws (bolt type) and
nuts
Fit clamp over seam and attach as shown with bolt-type screws and
nuts.
Step 4D - Install Center Louver Supports
Parts Required - Center louver supports and four 1/2" long screws
At the holes in the center of the top and bottom of the hood, use
the screws to attach the center
louver supports inside the hood.
Step 4E - Install Louvers
Parts Required - Two factory-assembled louver sections; 19 screws
(1/2" long); and five Tinnerman clips
Position one louver section in the left side of the hood; attach it to the
hood side and the center supports. Install the other louver section in
the right side. In the center, join the two louver sections with five
screws and clips.
Install pre-assembled
louver sections.
AS6 and AS7 - Slide filters
and blockoff sections into filter
racks.
Install side panels which are
filter access doors on AS6 and AS7.
(800) 695-1901 www.RezSpec.com
