Form I-UD-V-PV, P/N 195675R12, Page 5
Residential Installation
Only Model UDAP Sizes 30, 45, 60, 75, 100, 125

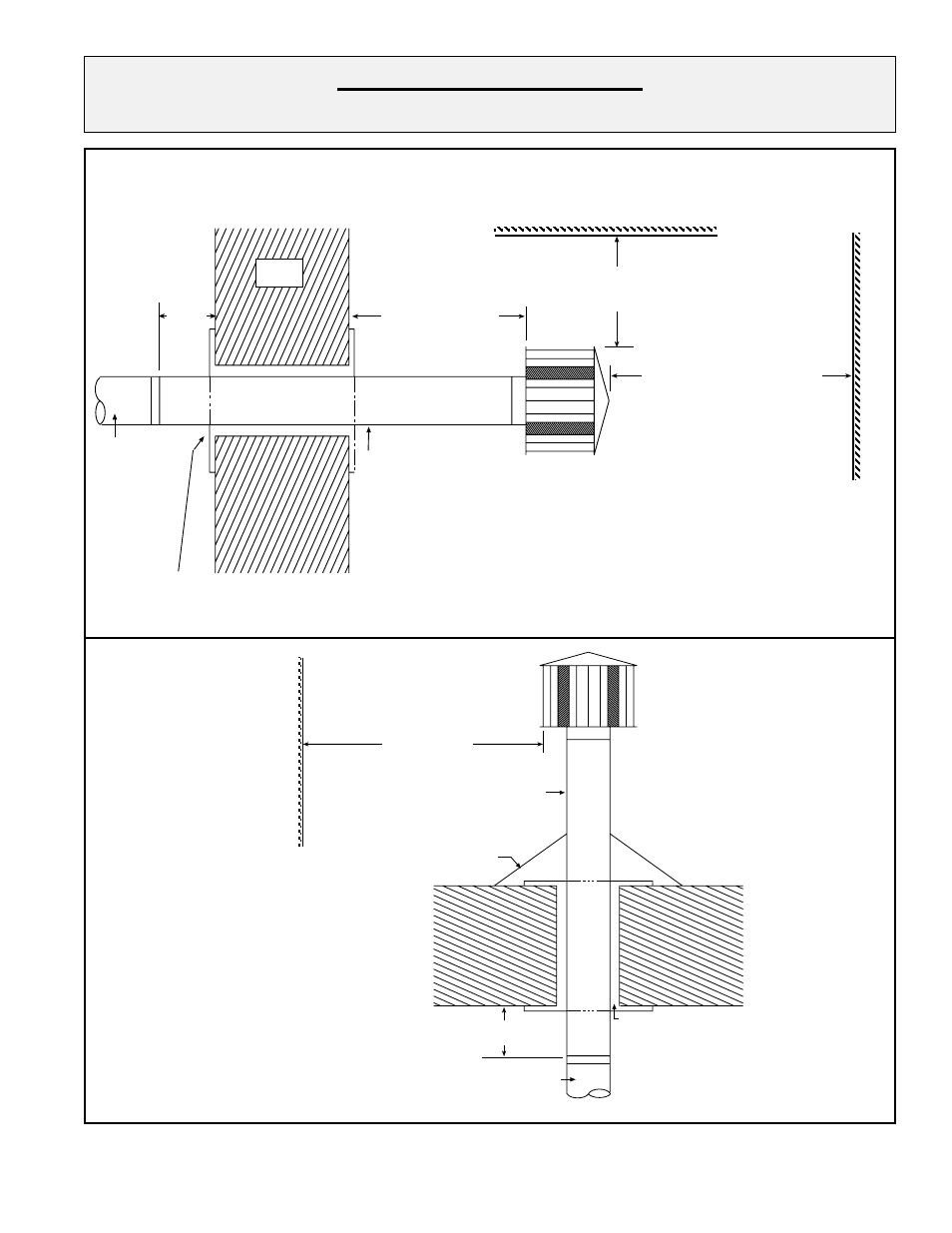

FIGURE 1 - Horizontal Vent Terminal - Residential Installation
( NOTE: Read all measurements; drawing is not proportional.)
Approved clearance thimble is required when the flue pipe extends through combustible
materials. Follow the requirements of the thimble and/or Category III vent pipe manufacturer.
Pitch flue pipe down toward
outlet 1/4” per foot for
condensate drainage.
(NOTE: Slope applies to
entire horizontal vent run.)
6” to 12”
(152 to 305 mm)
Wall
Roof or Building Overhang
3 ft (1M)
minimum
6 ft (1.8M) minimum
Option CC1 Vent Cap -
Note positions of vent cap
openings (shaded areas).
Parapet or
Adjoining Building
Category III
Vent Terminal Pipe
Vent Pipe
approved
for a
Category
III heater
6” (152mm) minimum
Roof -
pitched
from
0 to 45°
Approved clearance thimble is
required when flue pipe extends
through combustible materials.
Comply with the requirements
of the Category III vent pipe
manufacturer.
Vertical flue extension must
be 6” (152mm) higher than
anticipated snow depth but
no less than 2 ft (610mm)
above the roof.
Roof Flashing
6” (152mm) minimum
Parapet or
Adjoining Building
6 ft (1.8M)
minimum
Category III Vent
Terminal Pipe
Option CC1
Vent Cap
Category III Vent Pipe
FIGURE 2 -
Vertical Vent
Terminal -
Residential
Installation
( NOTE: Read all
measurements;
drawing is not
proportional.)
