Cybex CX-445T - Manual (Page 50)

Item Qty Part Number Description
1 1 Varies Base assembly
2 1 Varies Console assembly
3 1 NA Upright assembly
4 1 AX-19027 Console back
5 1 PL-19061 Cover, console back
6 1 AX-19239 Motor cover, center
7 1 PL-18991 Motor cover, right (in box)
8 1 PL-18992 Motor cover, left (in box)
9 1 AX-19354 Hardware pack (in box)
10 1 LT-19800-4 Owner’s manual (in box)
11 1 LT-19340 Assembly poster
12 1 LT-19801 Warranty sheet
17 1 AX-19150 Assembly, E-Stop Lanyard
NA means Not Applicable
Cybex 445T Treadmill Owner’s Manual

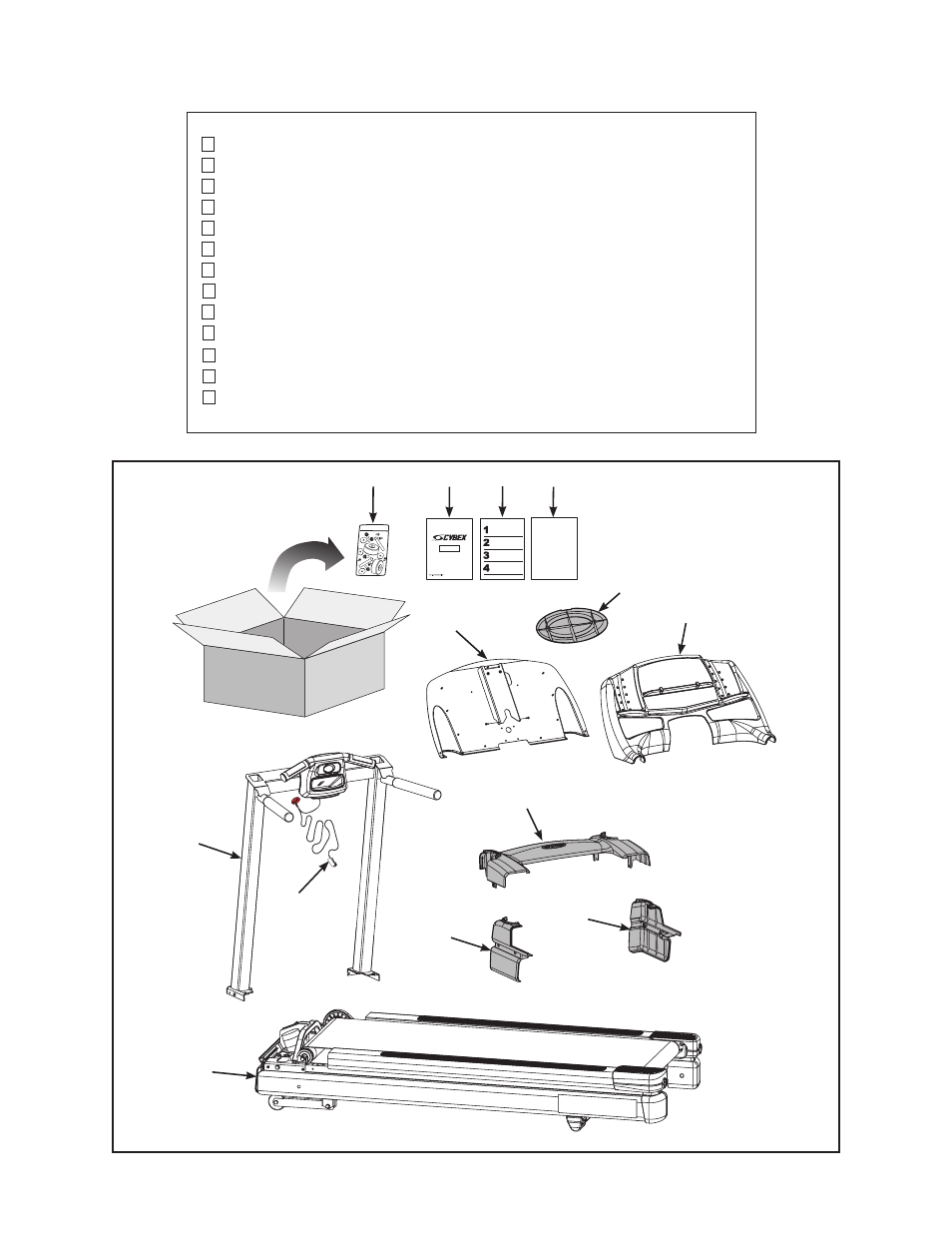

Figure 1
Setup
and
Assembly
Page 5-3
#1
#8
#7
#6
#5
#4
#2
#9 #10 #11 #12
#17
#3
