RED ROCKET INSTALLATION INSTRUCTIONS
955-0035, REV-B | 8
OVERVIEW OF THE HD-SDI SLOT FILLER
The HD-SDI slot filler provides optional high-definition serial digital interface (HD-SDI) connectors for the
RED ROCKET. Installing the HD-SDI slot filler is optional. Review your system and project requirements before
you decide whether or not to install the HD-SDI slot filler.
1

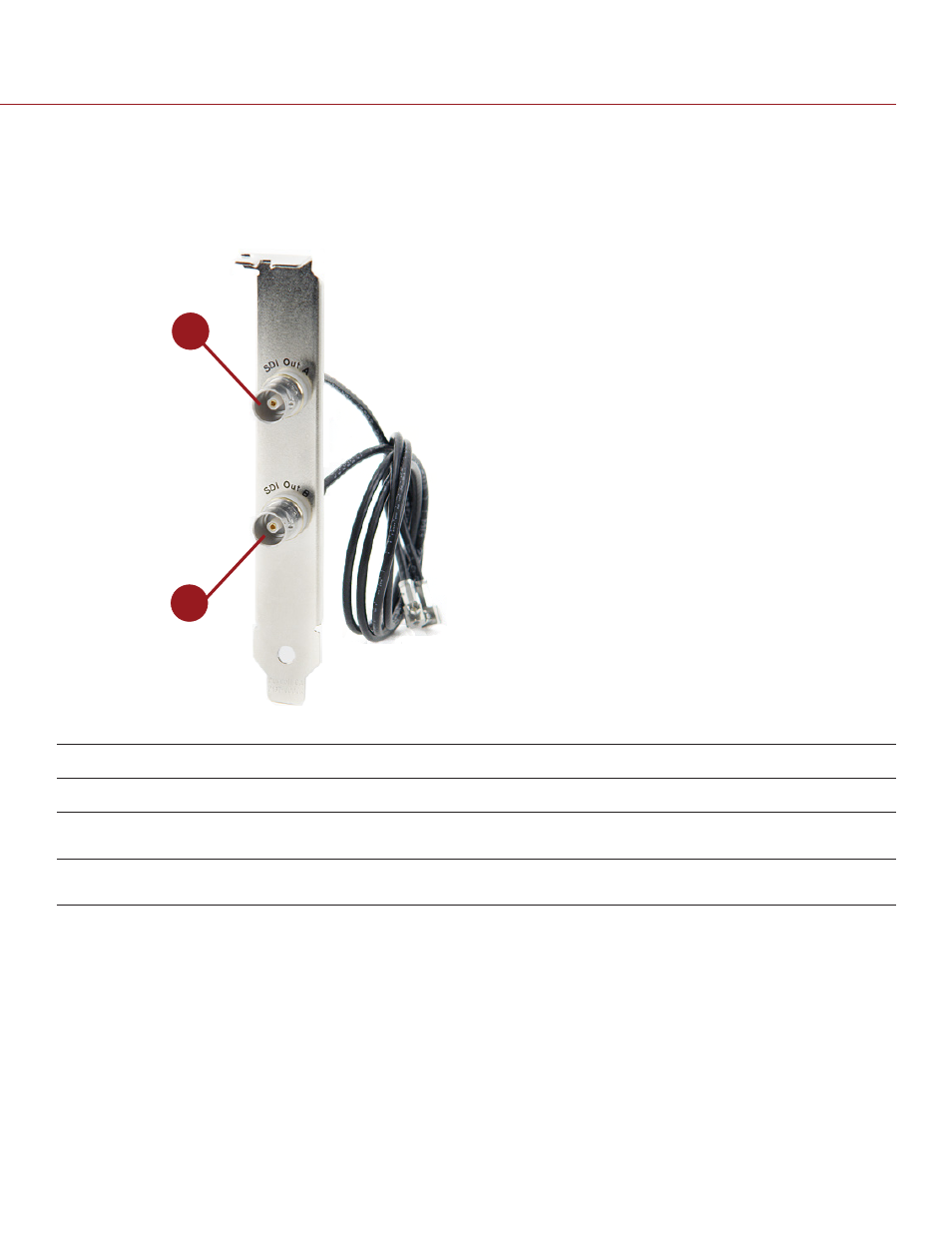

HD-SDI SLOT FILLER CONNECTORS
# CONNECTOR DESCRIPTION
1 SDI Out A BNC connector for an output of digital video signals (serial digital interface, port A);
either output of YUV in single-link or first stream of RGB in dual-link mode
2 SDI Out B BNC connector for an output of digital video signals (serial digital interface, port B);
output of the second stream of RGB in dual-link mode
NOTE: When the RED ROCKET Breakout Box is on and connected to the RED ROCKET board, the SDI outputs
of the RED ROCKET board will become inoperative.
ADDITIONAL RESOURCES
The following resources offer additional information about RED, RED ROCKET, and the RED community:
RED.com: Check the official RED website for the latest information about RED products.
RED Learn Articles: RED offers in-depth technical articles about RED cameras, post-production, and digital
cinematography.
RED.com/downloads: Go to the RED Downloads page to download the latest firmware, operation guides,
and post-production software.
Support.red.com: Check the RED SUPPORT site for FAQs, or to file a support ticket.
Reduser.net: Discuss all things RED on the REDUSER third-party forum.
2
