RED ROCKET INSTALLATION INSTRUCTIONS

955-0035, REV-B

lower slots.
NOTE: The RED ROCKET must be installed in a slot providing at least eight lanes that are PCIe x8 electrical

in a physical x16 slot for power.
CAUTION: During the next step, use care not to break off any parts of the PCI video board. Apply pressure

to the slot panel and/or the printed circuit board only, and NOT to any of its attached parts.

7. Line up the RED ROCKET connectors with the slot, and then gently but firmly press the card into the slot.

NOTE: To prevent damage to your system and the RED ROCKET, DO NOT rock the card or use excessive

force when installing the RED ROCKET.

8. If necessary, fasten the RED ROCKET into the slot.
9. If you’re using the HD-SDI slot filler, follow the instructions below to install and connect the HD-SDI slot

filler:

A. Remove one (1) free slot bracket from the system.
B. Slide the HD-SDI slot filler into the empty slot so that the SDI Out B connector is toward the back.

CAUTION: Ensure that the HD-SDI slot filler or connectors DO NOT contact other components inside the

computer.

C. If necessary, fasten the HD-SDI slot filler into the slot.

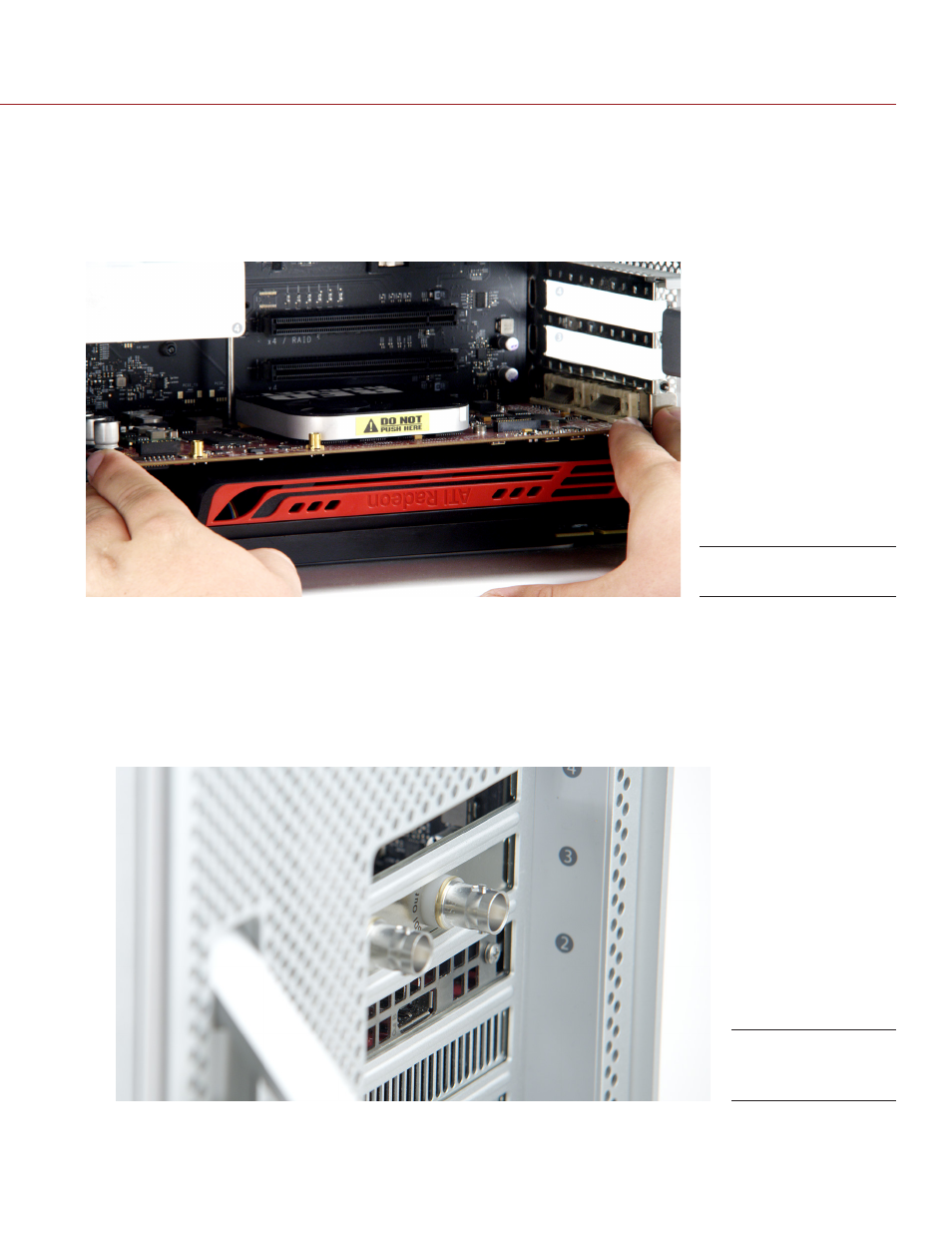

Insert RED ROCKET

Install HD-SDI

Slot Filler
