RED ROCKET INSTALLATION INSTRUCTIONS
COPYRIGHT © 2014 RED.COM, INC
955-0035, REV-B
|
11
D. Connect the SDI Out A cable on the HD-SDI slot filler to the SDI Out A connector on the RED ROCKET.
E. Connect the SDI Out B cable on the HD-SDI slot filler to the SDI Out B connector on the RED ROCKET.
10. Reinstall the access panel.
11. Reconnect all cables to the system.
12. Power on the system.
13. To install or upgrade the RED ROCKET driver and firmware, go to
“Install Driver and Firmware” on page
.

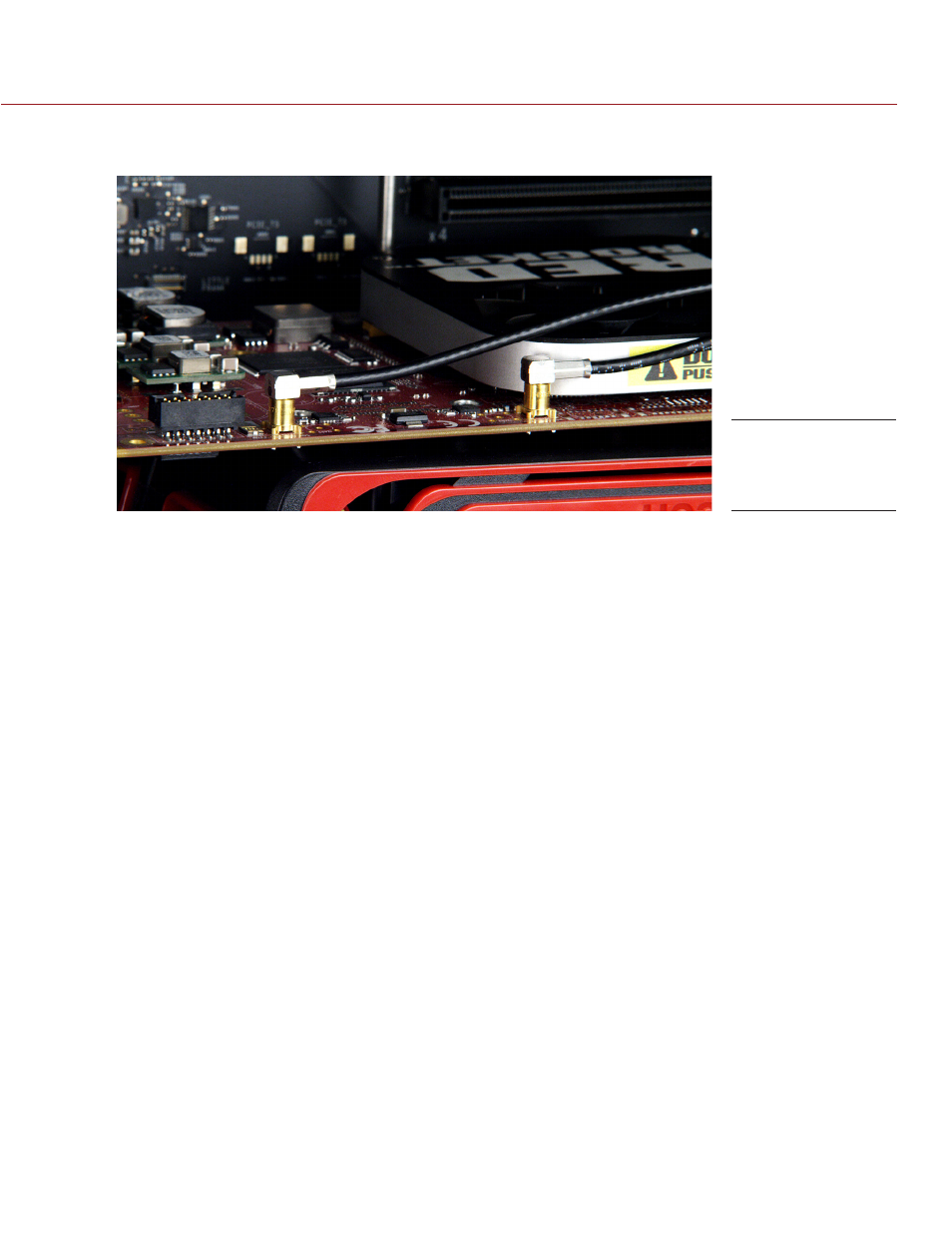

Connect HD-
SDI Slot Filler to
RED ROCKET
