PS Engineering
PMA7000CD Audio Selector Panel and Intercom System
With PCD7100-R Remote Compact Disc Player
Installation and Operator’s Manual
200-790-0010 Appendix B Revision 10, September 2005

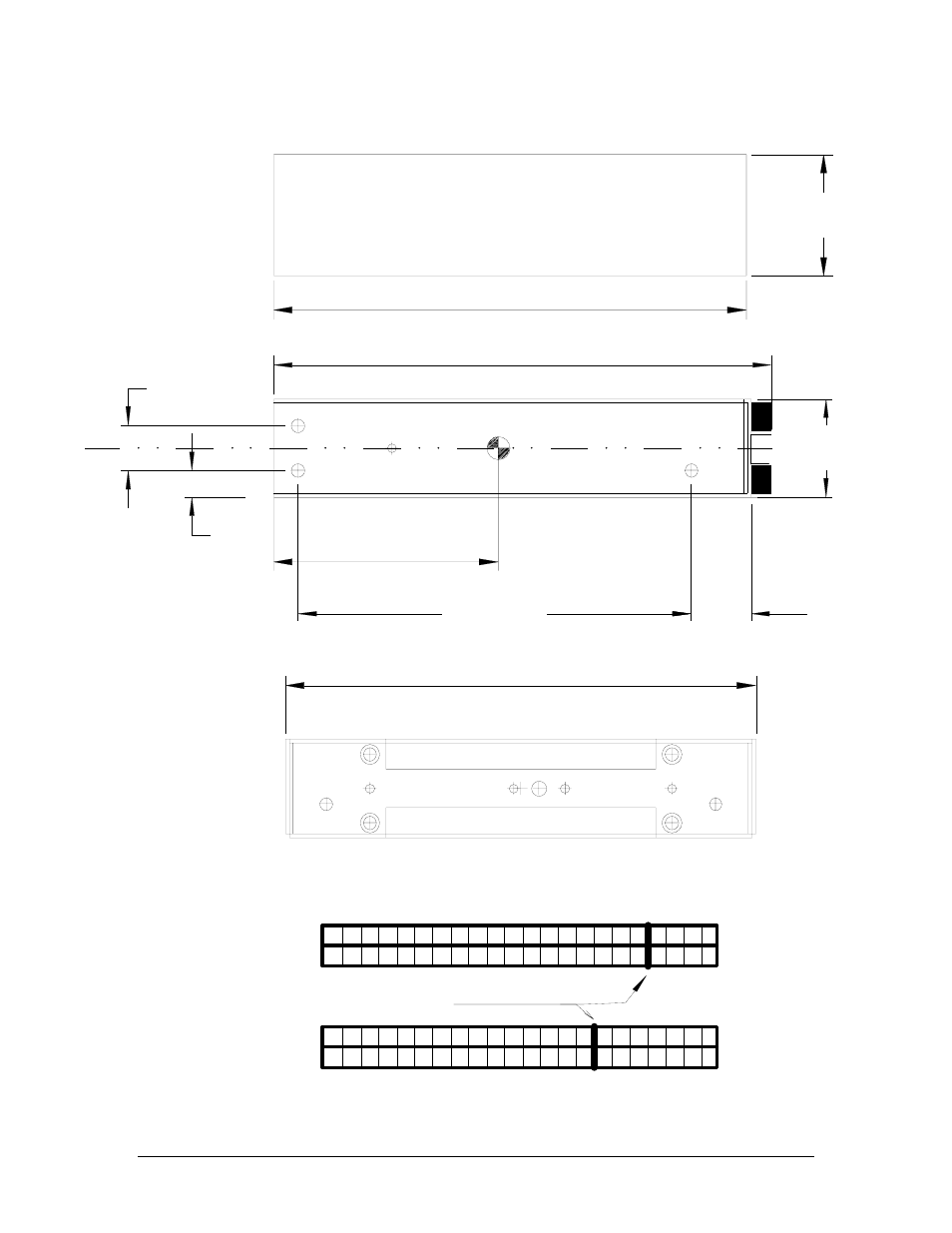

Appendix B – PMA 7000CD Insta
llation Drawing
1.31 in
(33.27 mm)
0.60 in (15.25 mm)
0.35 in
(8.9 mm)
5.25 in
(133.4 mm) 0.8 in
(20.3 mm)
6.31in (160.3 mm)
Cutout size for front mount installation
1.315 in
(33.4 mm)
6.28 in
(159.5 mm)
3.00 in (76.2 mm)
CG
Weight: 1.5 lb with tray and connectors ( .68 kg)
Side View
Rear View
6.65 in (167 mm)
J1 (bottom)
J2 (top)
Z Y X W V U T S R P N M L K J H F E D C B
22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2
A
1
Connector viewed from the rear
Z Y X W V U T S R P N M L K J H F E D C B
22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2
A
1
Keying Pins
