4

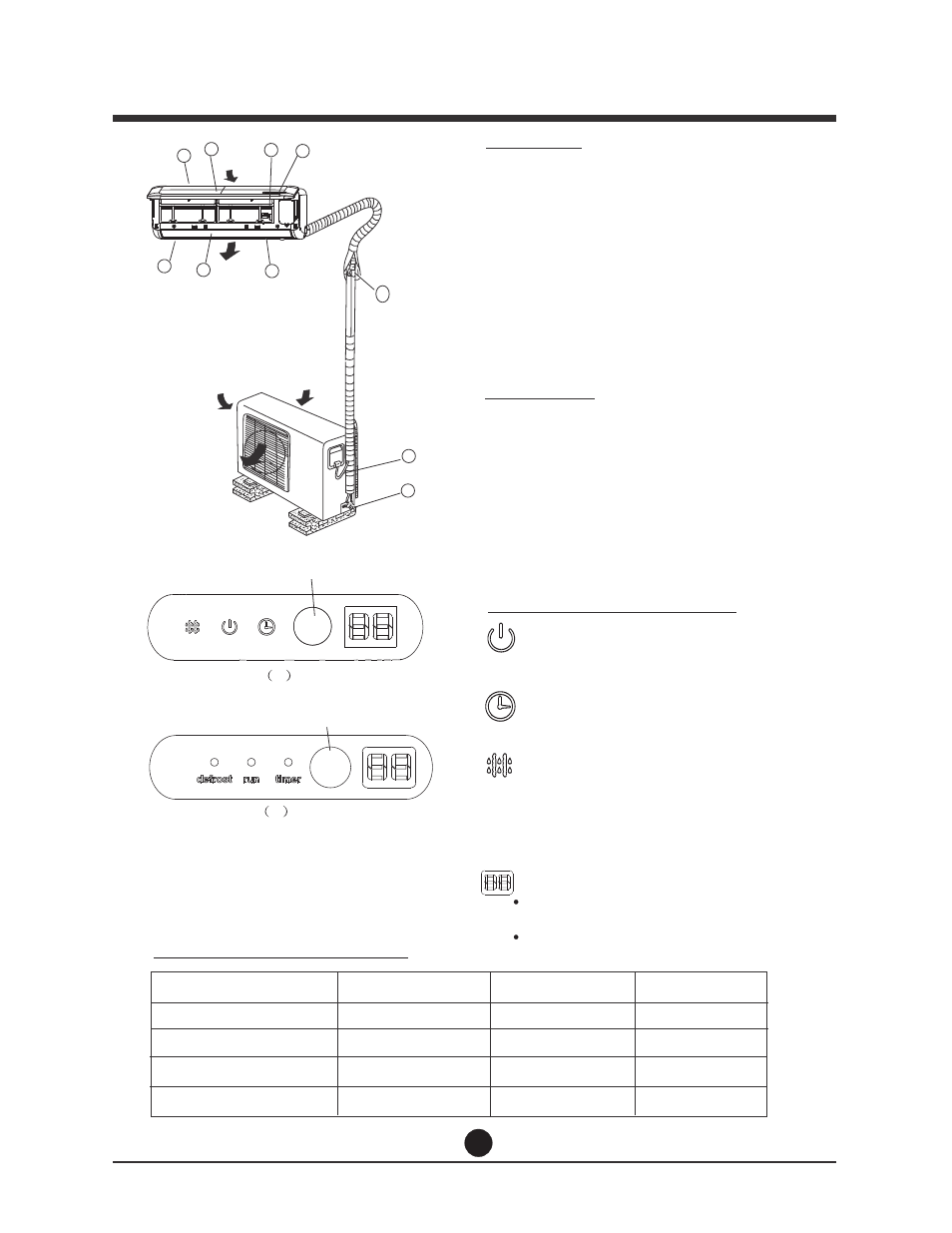

OPERATING INSTRUCTIONS
8. Connecting pipe
9. Connecting cable
10. Stop valve
Outdoor unit
NOTE: The actual shape of the indoor unit
you purchased may be slightly different
on front panel and display window.
NOTE:
All the pictures in this manual are for
explanation purposes only. Your air conditioner
may be slightly different. The actual shape
shall prevail.
Air inlet( rear) Air inlet (side)
Air outlet
1. Front panel
2. Air inlet
3. Air filter
4. Air outlet
5. Horizontal air flow grill
6. Vertical air flow louver (inside)
7. Display panel
Indoor unit
VLED Display Window
OPERATION indication lamp
This lamp illuminates when the air
conditioner is in operation.
TIMER indication lamp
Lights up during Timer operation.
DEFROST i ndication lamp
(Enabled on cooling & heating models only):
Lights up when the air conditioner starts
defrosting automatically or when the warm
air control feature is activated in heating
operation.
4
3
5
2
6
1
9
10
8
7
Signal receiver
A
B
Signal receiver
Model Name And Dimensions
MODEL WIDTH (mm) HEIGHT (mm) DEPTH (mm)
9000 Btu
12000 Btu
18000 Btu
10.1" (255 mm)
10.1" (255 mm)
10.8" (275 mm)
7.1" (180 mm)
7.5" (188 mm)
7.8" (198 mm)
26.8" (680 mm)
30.2" (770 mm)
35.7" (905 mm)
22000 Btu 40.6" (1030 mm) 12.5" (315 mm) 8.7" (220 mm)
Temperature indicator
Displays the temperature settings when the
air conditioner is operational.
Displays the malfunction code.
