13

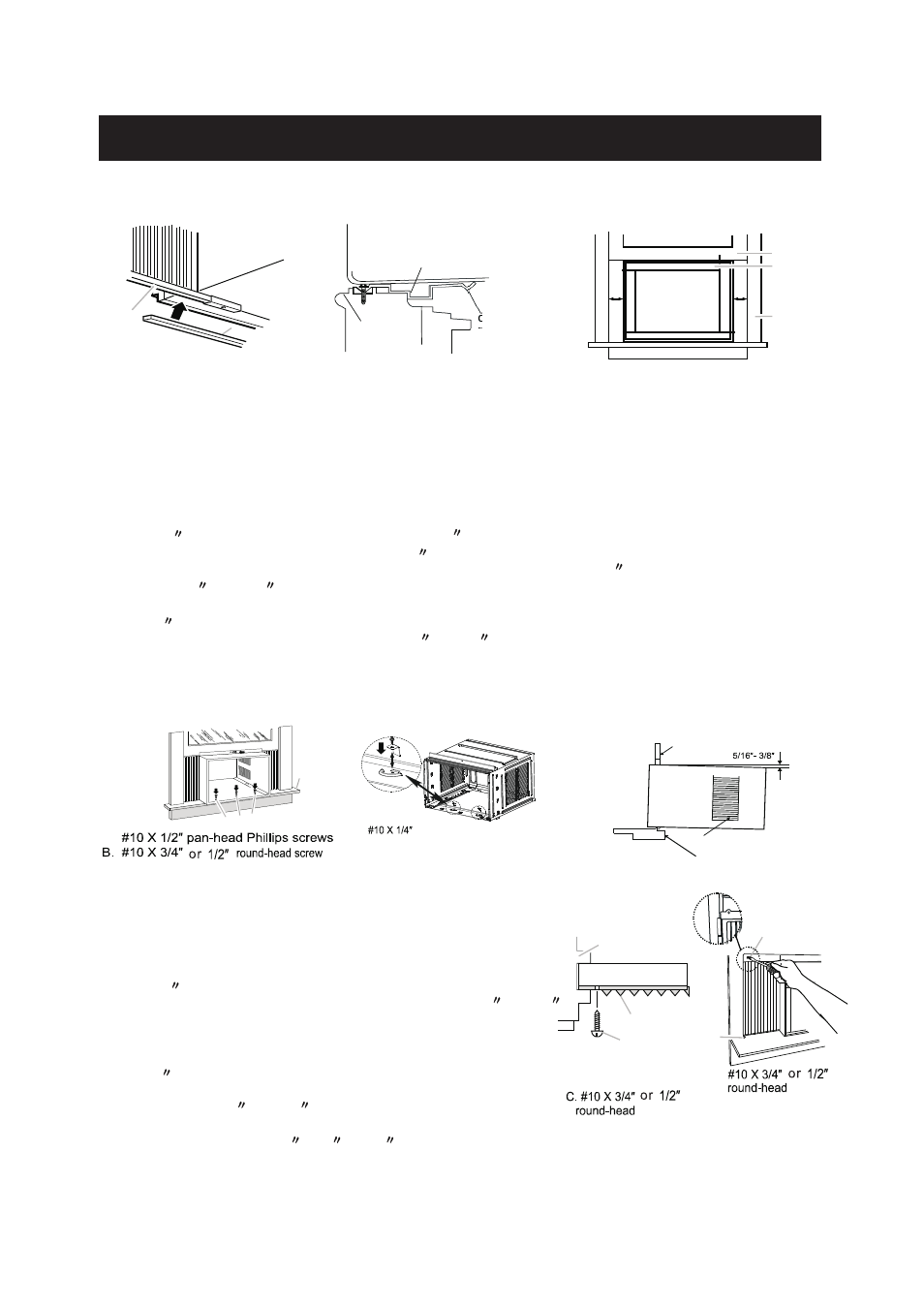

INSTALLATION INSTRUCTIONS
A
B
FIG.8
A
B
C
FIG.10 FIG.9
screw
A
B
C
FIG.14A
A.
screw
A
B
FIG.14B
A.
B
A A
C
FIG.11
FIG.13
FIG.12
window
cabinet
Bracket
window
outer sill
on edge of inner sill.
Side Louvers
Window Sash
Window Sill
A
B
A. Curtain housing
B. Foam adhesive seal
inner sill
Angle of cabinet
bracket securely seated
A. Window sash
B. Empty cabinet
C. Window channel
A. Pan-head Phillips screws
B. Safety Lock
Only for Vinly-Clad Window C. Window channel
A. Window channel
B. Left-hand curtain
B. Slotted hole in the
bottom of the curtain
Attach foam adhesive seal:
Attach foam adhesive seal along the bottom of the curtain bottom channel (FIG.8).
Install Cabinet into Window:
A
1. Center empty cabinet in window:
Check that lower rail of air conditioner cabinet is behind and against back side of window sill. Maintain
a firm hold on the air conditioner cabinet (FIG.9). Lower window sash to hold the cabinet in place.
Measure the distance between the right side of the cabinet and the inside of the window channel
(FIG.10). Repeat for the left side. Adjust the cabinet until the distance on each side is the same.
2. Attach the cabinet to window:
A: For wooden window:
Use a 3/16 drill bit to drill three starter holes 3/8 deep through the three holes in the cabinet and into
the window sill,and drill one starter hole 3/8 deep through the hole in the middle of top rail and into the
window frame (FIG.11). Attach cabinet to window with three #10 x 1/2 pan-head Phillips screws and
one #10 X 3/4 or (1/2 )round-head screw (FIG.11).
B: For Vinyl-Clad window:
Use a 1/8 drill bit to drill one hole through the hole in the middle of top rail and into the window frame.
Attach cabinet to window with one #10 x 3/4 or(1/2 )round-head Phillips screw (FIG.11). Place two
safety locks into the holes that located in the bottom of the cabinet and drive two locking screws
through the safety locks into the cabinet as shown (FIG.12)
3. Check that air conditioner cabinet is tilted back 5/16" to 3/8" so that water could run to the outside
(See FIG.13).
Attach Side Curtains to Window Frame:
1. Extend the side curtains out against the window frame
(FIG.11).
2. Drill holes and drive locking screws:
A: For wooden windows:
Use a 3/32 drill bit to drill 4 starter holes through the holes in
the side curtains into the window. Drive four #10 X 3/4 or (1/2 )
Lockingscrews through the holes in the side curtains into the
window sill and window frame(FIG.14A, FIG.14B).
B: For Vinyl-Clad windows:
Use a 1/8 drill bit to drill two holes through the holes in the
side curtains into the window frame as shown (FIG.14A).
Drive two #10 X 3/4 or (1/2 )locking screws through the
holes in the side curtains into the window sash (FIG.14A)
3. Trim the weather seal (6 X3/4 X1/12 ) with a proper length, peel off the protective backing and plug
any gaps if needed as shown (FIG.14B).
( )
( )
( )
