4 HOLES FOR
SAFETY CORD
PASSING THROUGH
CLAMPS
SAFETY CORD
(2PCS)
(1PCS PER CLAMP)
SCREWS
HANDLES
(2PCS)
(2PCS PER CLAMP)
RETAINERS
CORD
SAFETY
HOLE
WARNING
through 4 HOLES for safety!
To pass 2 SAFETY CORDS
WARNING
through 4 HOLES for safety! To pass 2 SAFETY CORDS CORD SAFETY
HOLE
106
256
(2PCS)

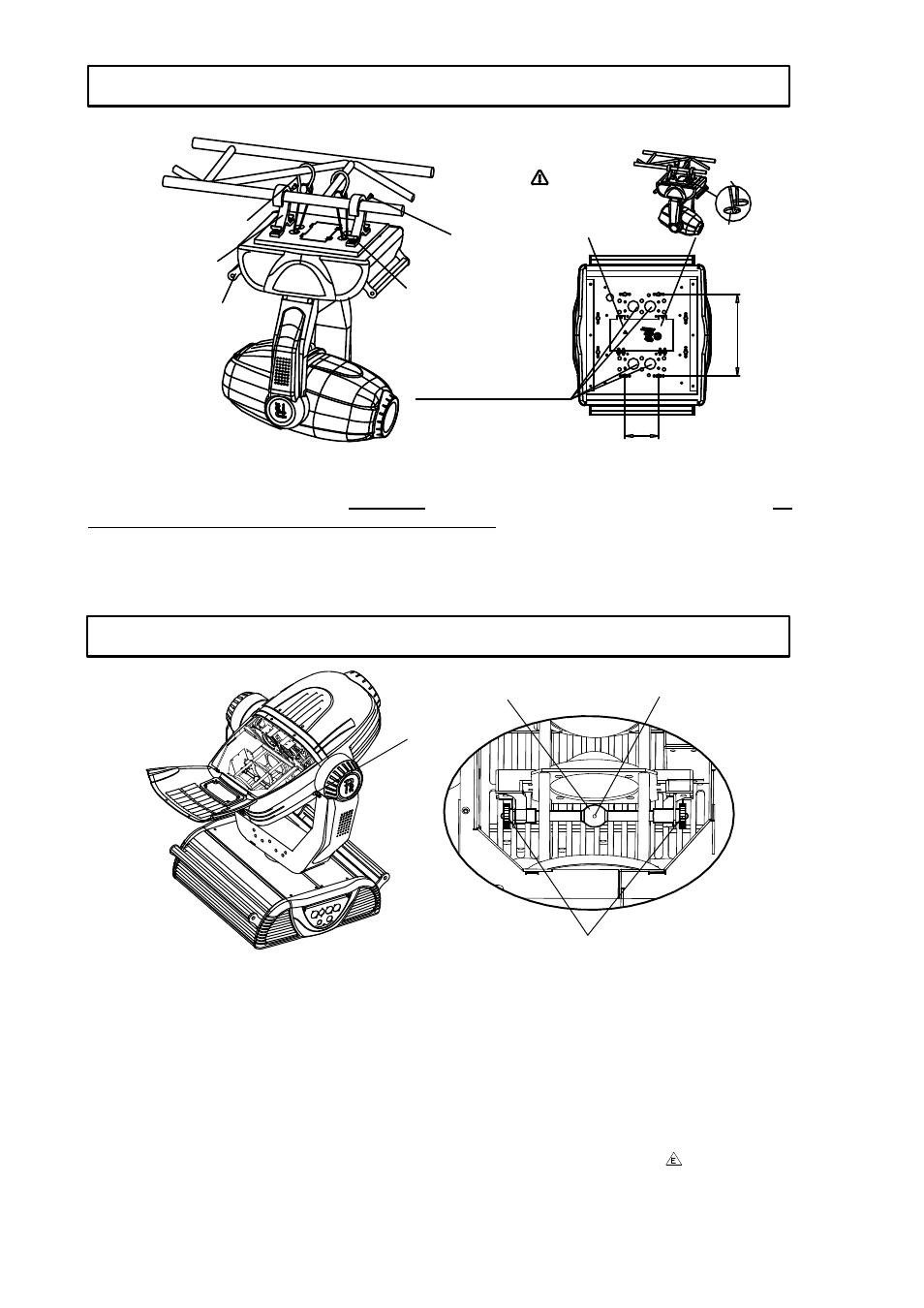

Take 2 clamps and 2 safety cords out from the package and mount 2 clamps on the underside of
fixture with 2 retainers attached to each clamp. Hang the fixture on the structure and fasten the screws
attached to each clamp. (Watch the WARNING on the underside of the base as shown above) To
pass 2 SAFETY CORDS through 4 HOLES for safety! Always ensure that the projector is firmly
anchored to avoid vibration and slipping whilst functioning. Always ensure that the structure that you
are going to mount the projector is secure and is strong enough to support a weight of PILOT 1200.
WARNING: 1. Unlock the PAN and TILT before the 1
st
application of projector for safety.
2. The projector MUST be lifted or carried by the HANDLES instead of clamps.
TILT LOCK
NUTS
BULB PST
Lock tilt before fitting/replacing the lamp.
Loosen 2 M5 screws and open one of the rear covers, you can see the structure as shown in the
figure above.
Loosen 2 nuts at the both ends of lamp and take out the worn-out lamp. Suggest to free one end after
another.
Fit new lamp and fasten 2 nuts at the both ends of lamp. Notes: don’
t touch the bulb of the new lamp
with bare hand so as not to influence the beam output; the PST (pumping stem tip off) on the bulb
facing the rear cover with fans perpendicularly and being not in the beam’
s way is a must and aids
cooling.
Close the rear cover and fasten 2 M5 screws.
WARNING: The HMI series are high-pressure lamps with external igniters (
). Care should
always be taken when handling these lamps. Always read the manufacturers "Instructions for
use" enclosed with the lamp.
FITTING THE LAMP
INSTALLING THE PROJECTOR
