Oberon 1075-AP225 - Manual

Installation Instructions
Model Number 1075-AP225
(877) 867-2312 • www.oberonwireless.com
Rev. A1 03/28/14 Oberon, Inc. •••• 1315 South Allen Street •••• State College, PA 16801 Copyright 2012
Assembly Components:
- Ceiling enclosure Model 1075-AP225 assembly – 1 each
- Ceiling tile bridge – 2 each
- #8-32 X 1/4 “ screw –4 each
- #8-32 nut – 4 each
- 3/4” Trade Size Cable Clamp – 1 each
- Keys for access door lock – 2 each
- Support wire – 4 each
- Fire Block Foam – 1 each
If any of these items are missing, contact your Oberon representative.
Find a flat work surface to assemble the ceiling enclosure, access point and antenna(s) prior to mounting in ceiling.
Step 1 - Cut a 13” x 13” opening in the center of a ceiling tile (not included – ref. Figure 1).
Step 2 – Place the ceiling enclosure assembly on the work surface. Remove one of the 1” trade size hole cover on the side of
the enclosure and install the 1” conduit nipple (the side on which the conduit nipple is to be installed will be determined by the
location the enclosure is to be installed and direction from which conduit will be brought into the enclosure – ref. Figure 2).
Step 3 –Lay ceiling tile over the enclosure assembly such that
the previously cut opening in the ceiling tile is equally spaced
around the outside of the enclosure (ref. Figure 3). Place the
ceiling tile bridges along each side of the enclosure and attach
using a #8-32 screw. Prior to tightening, be sure to properly
align the tile bridges so the ends of the tile bridges align with
the outside edge of the ceiling tile. Once the tile bridges are
properly aligned, press the shoulder of the tile bridge down
firmly against the tile and then securely tighten the screws.
This is to assure that there is minimal gap between the
enclosure’s flange and the ceiling tile once it is placed in the
ceiling. The four (4) holes on the tile bridge will be used to
secure the enclosure with grid wires.
Page 2
Step 4 – Snap Aruba Networks t-bar clip
onto the t-bar mount by angling at a 45°
angle and twisting the clip until it snaps in
place. Next, attach the access point to the
Aruba Networks t-bar clip by angling the
access point at a 45° angle and twisting it
until it also snaps in place (Figure 4).
Step 5 – Align the threaded studs to the
two outer holes in the bracket attached to
the door. Once the access point is snug in
the hole, place the lock washer and wing
nut onto the threaded rod. Tighten wing
nuts until they are snug. With your fingers,
tighten the hex nuts on the underside of
the bracket then re-tighten the wing nuts
until they no longer move freely (Figure 5).
Step 6 – For added security,
attach wire ties to the two
inner holes of the bracket and
the t-bar mount. Make sure
securely fasten the wire ties in
place (Figure 6).
Step 7 – Remove the ceiling
tile and replace it with the
completed access point
enclosure assembly.
**IMPORTANT** - This is
an important safety feature
that could prevent human
injury or damage to the
access point should the
unit become dislodged from
the ceiling.
Page 3

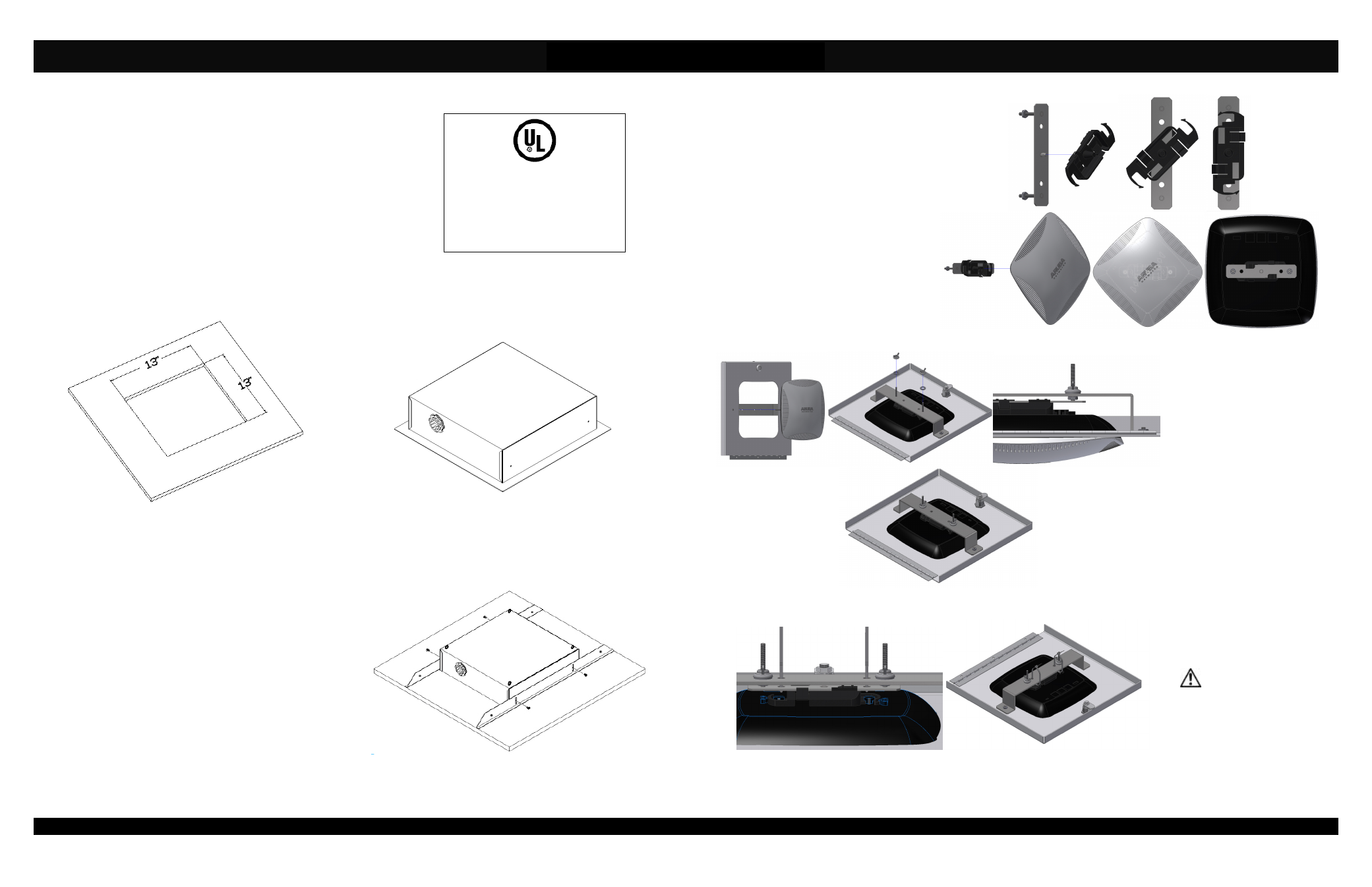

Figure 2 - Hardware installation.
Figure 1 - Cutting ceiling tile.
Figure 3 - Installation to ceiling tile.
This product is Listed by Underwriters
Laboratories Inc. Representative
samples of this product have been
evaluated by UL and meet applicable
safety standards.
File #E348543
Figure 4 - T-Bar Clip Install.
Figure 5 - Fasten T-Bar Bracket.
Figure 6 - Wire Tie Install.
