Oberon 1059-00 - Manual

Installation Instructions
Model Number 1059-00
(877) 867-2312 • www.oberonwireless.com
Rev. 7A - 06/05/14 Oberon, Inc. •••• 1315 South Allen Street •••• State College, PA 16801 Copyright 2013
Figure 4 - View showing enclosure installed in ceiling grid.
Assembly Components:
- Ceiling enclosure Model 1059-00 assembly – 1 each
- Keys for access door lock – 2 each
- 1” Trade Size Cable Clamp – 1 each
- Support wire – 4 each
- Firestop Grommet – 1 each
If any of these items are missing, contact your Oberon representative.
Find a flat work surface to
assemble the ceiling enclosure,
access point and antenna(s) prior
to mounting in ceiling.
Step 1 – Place the ceiling
enclosure assembly on the work
surface with the keyed doorway
unlocked. The eyebolts will be
used to secure the enclosure with
grid wires (Ref. Figure 1).
Step 2 – Install the cable clamps.
Remove the hole cover(s) from
the inside of the enclosure. Insert
the cable clamp through the hole
with the nut installed from the
inside of the enclosure. If using
Power Over Ethernet (P.O.E.) use
1 cable clamp. If P.O.E. is not
being used, install both cable
clamps and bring power and
Ethernet
into the enclosure
through separate clamps (Ref.
Figure 2).
Page 2
Step 3 – (Any manufacturer’s access
points) Install the access point’s mounting
plate to the enclosure’s “T-Bar” bracket
using the manufacturer’s instructions for
attaching the mounting bracket to a ceiling
tile grid (T-Bar). Attach the Access Point to
the mounting plate. (Ref. Figure 3).
Step 4 – Remove the ceiling tile and replace
it with the completed access point enclosure
assembly.
Step 5 – Use minimum 12-gauge grid wire to
secure the access point enclosure in the
ceiling grid. Attach one end of the wire to the
eyebolts and the other end to a permanent
structure within the ceiling such as a ceiling
joist (Ref. Figure 4).
**IMPORTANT** - This is an important
safety feature that could prevent human
injury or damage to the access point,
should the unit become dislodged from
the ceiling grid.
Step 6 – Run the data and power cable (if
required) through the conduit connectors
located on sides of the access point
enclosure. In order to maintain a separation
of signal and power, install the data and
power cables through opposite sides of the
enclosure utilizing the two knock-outs
provided. Pull the data cable through the
conduit connector far enough to allow
attachment to the access point (8" - 10").
Snap the grommet on to the cable and slide
it inside the conduit connector.
Step 7 – Attach data and power cables to
the access point through the access door
then tighten the screws on the cable clamp.
Step 8 – Close and lock the access door.
The installation is now completed.
Page 3

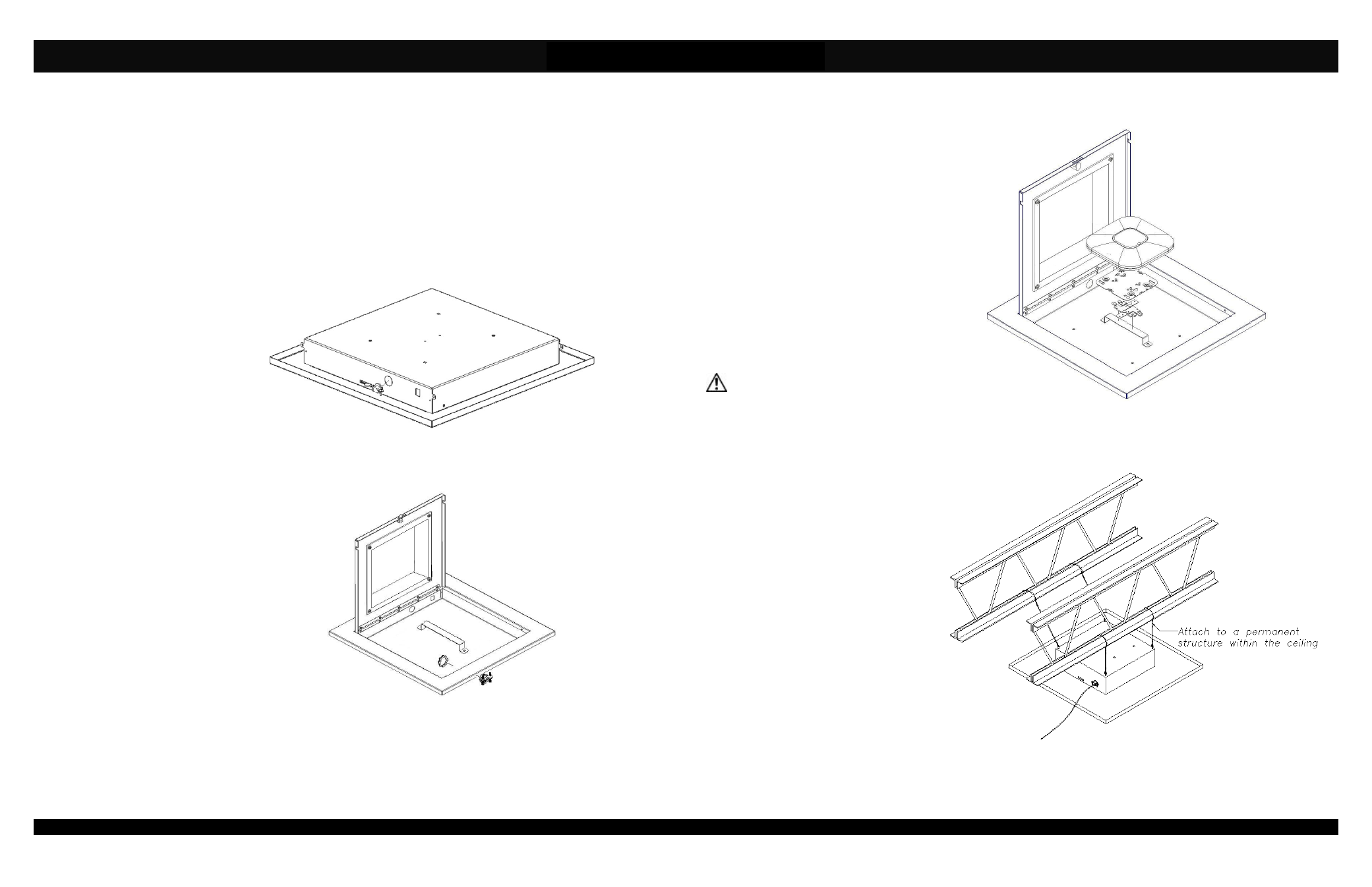

Figure 1.
Figure 2 – Installation of cable clamp(s)
Figure 3 – Install Access Point in enclosure.
