Page 6

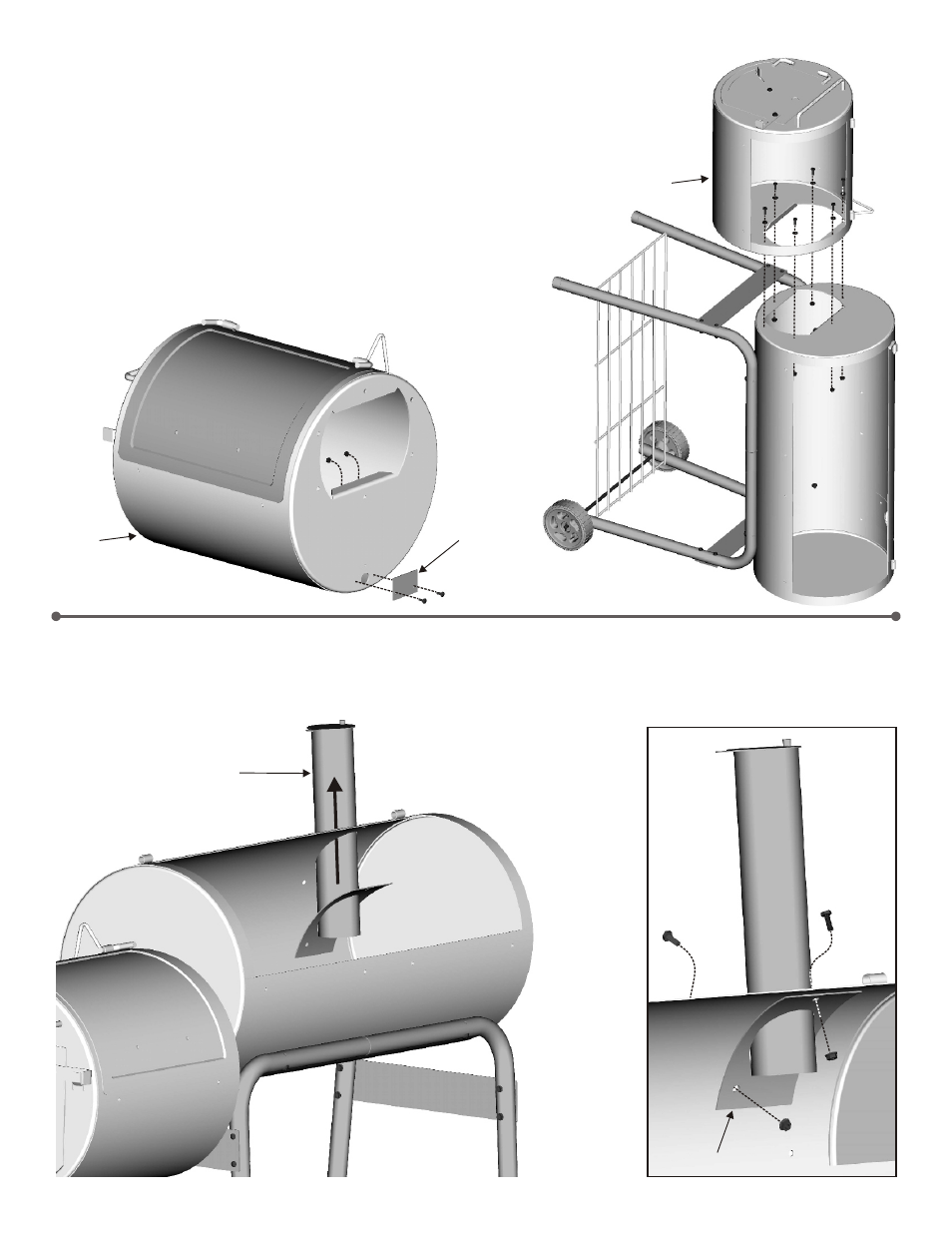

Smokestack

NOTE: Smoker chamber door not pictured for clarity.
From inside the smoker chamber, slide the smokestack through the large hole. Align the two holes in the smokestack plate with
the holes in the chamber and secure with two

1/4-20x3/4” hex-head bolts outside the chamber and 1/4-20 flange nuts inside.

NOTE: Smoker chamber and firebox doors not pictured for clarity.

Diamond Fire Plate Installation - For models without Diamond Fire ignitor accessory,
part number 22504850.

For models that feature the Diamond Fire ignitor accessory, supplemental

instructions are included with ignitor.
First, locate the cover plate in the hardware box. At the bottom right end of the

firebox there is an opening for the Diamond Fire ignitor accessory. Install the
cover plate over the opening using two

#8-32x1/2” screws and #8-32 lock nuts.

Second, align the hole pattern on the firebox with the pattern on the
smoker chamber. The firebox should be slightly offset from the smoker
chamber. Attach using six

1/4-20x3/4” hex-head bolts and flat washer

inside firebox and

1/4-20 flange nuts inside smoker chamber.

Firebox

Smoker

chamber

Smokestack plate

Cover plate

Firebox
