17
8 Module Installation
An optional module mounting bracket kit is available for purchase from NORAC. The
mounting brackets are compatible with control modules and input modules. One kit is needed
per module.
Item Part Number Name Quantity
B20 43708 UC5 MOUNTING BRACKET KIT (CONTROL AND INPUT MODULES) 1
8.1 Control Module
1. Refer to Figure 2 and Figure 14.
2. Securely mount the control module (E01) as shown in Figure 14.
3. Connect the display cable to the end of the control module with only one Deutsch
connector.
4. Connect the power cable (C30) to one of the two CANbus connectors on the control
module. Be sure that the power is connected to a switched power supply.
5. Route cable C01 from the other CANbus connector to the cab knock outs.
6. Connect cable C03 to cable C01 at the cab knock outs. Connect a 3-way coupler (E10)
between cable C03 and cable C09. Connect cable C09 to cable C04. Route cable C04
towards the valve block.

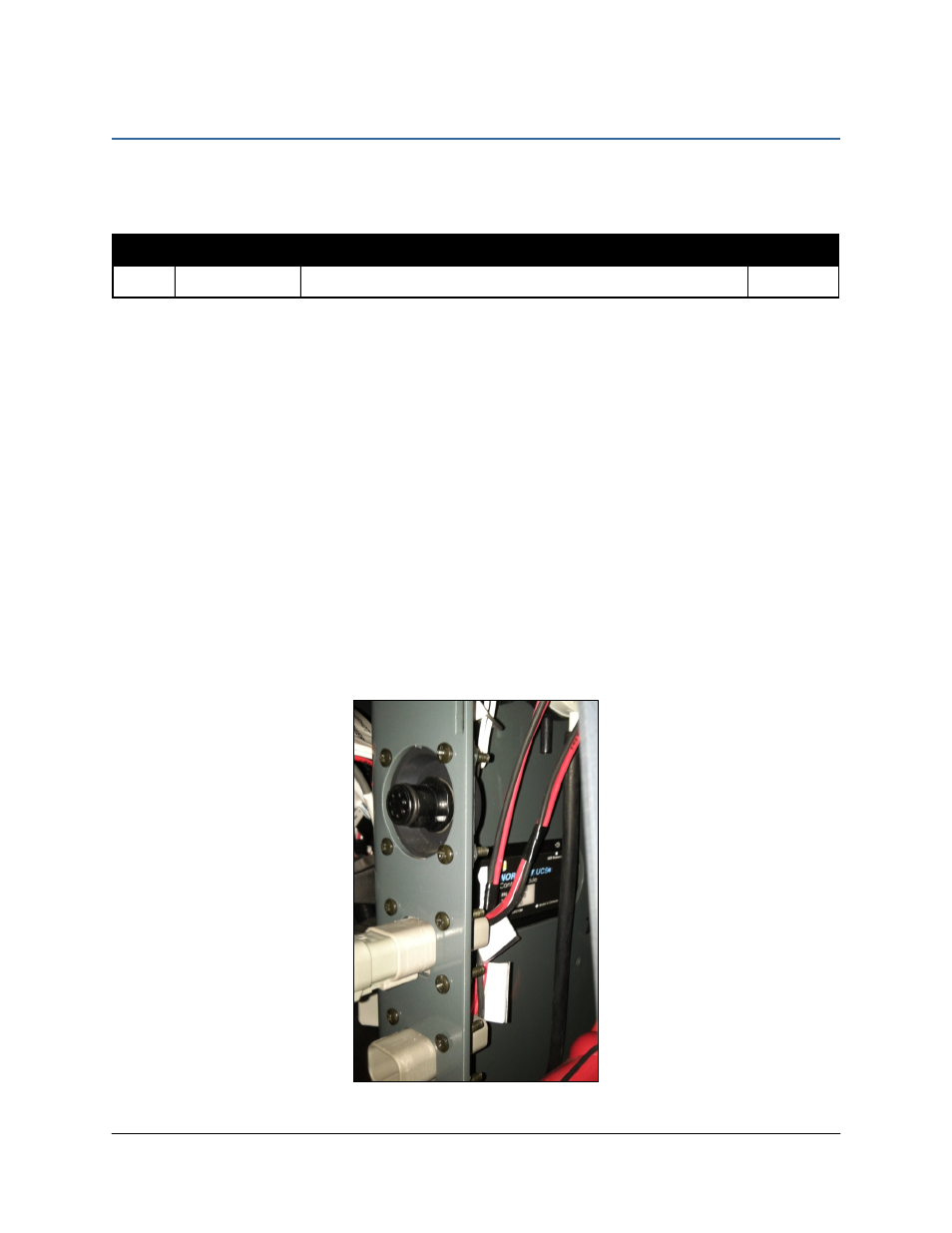

Figure 14: Control Module Mounting
