7 Roll Sensor Installation
7.1
Bracket Assembly
1. Securely mount the roll sensors to the Hagie roll sensor brackets using the #6 hex head
machine screws provided (M05). Tighten screws to 10 in-lbs (1.1 Nm).
2. The roll sensor CANbus connector must be pointing towards the right side of the sprayer.

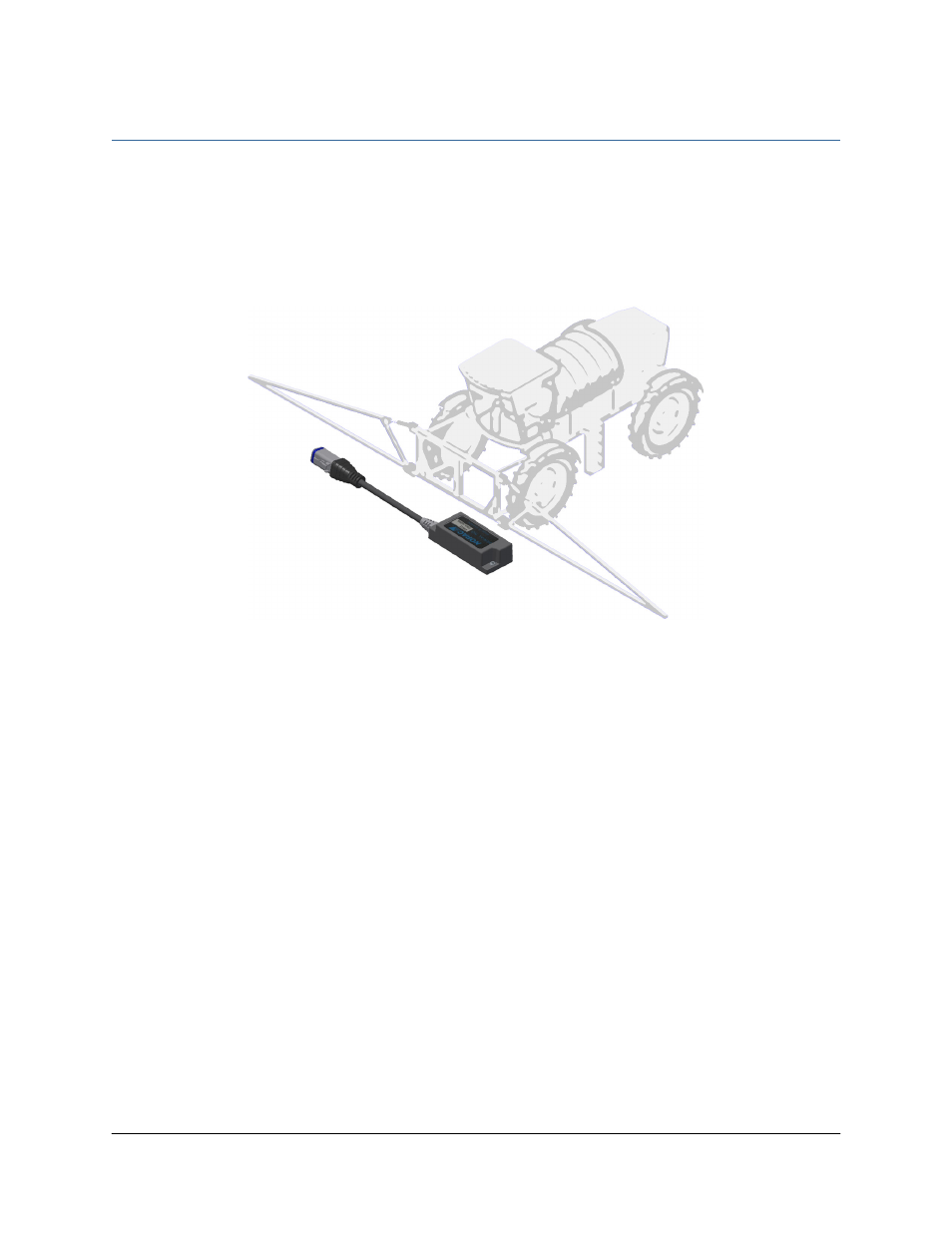

Figure 11: Roll Sensor Orientation - Connector Facing Right Wing
