4.5 UC5-HYD-HG07 – HG07 Hydraulics Kit Parts List (Hagie Kit
Number – 693755)
Item NORAC Part Number Hagie Part Number Name Quantity
C10 43230-16 693749 CABLE UC5 VALVE HAGIE 2014 120' 1
C11 43230-14 693802 CABLE UC5 VALVE LOCK HAGIE 2014 1
C20 43240-37 693750 CABLE UC5 INTERFACE HAGIE 2014 1
E02 43720 693133 UC5 VALVE MODULE 1
E03 43732 693751 UC5 INPUT MODULE PASS THRU 1
H10 44865-15 693160 HYDRAULICS FITTING KIT - HG3 1
P01 106034 693752 UC5 NETWORK 2 PIN PLUG 1
P02* 106602 693801 UC5 NETWORK 12 PIN PLUG (A-KEY) 1
V01 44963D 693455 VALVE BLOCK ASSEMBLY 2 STATION CC/LS PROP DT 4 BOLT 1
* Part P02 is not included in the factory installed kit.

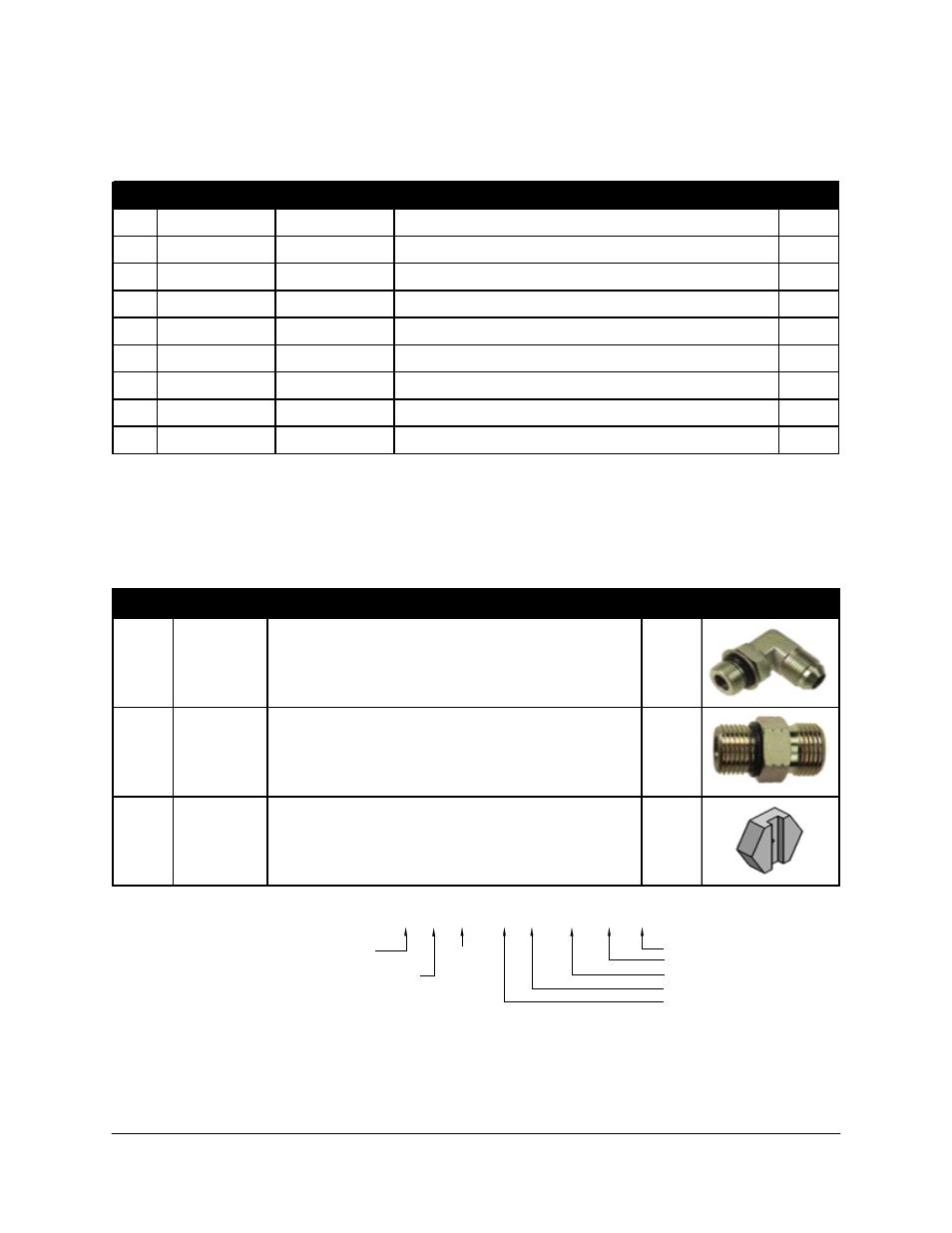

4.6 Hydraulic Fitting Kit Details (P/N: 44865-15)
Item Part Number Name Quantity Picture
F04 103071 MALE 90 DEGREE ADAPTER - 8MB 6MJ90 2
F05 103312 MALE ADAPTER - 6MB-6MJ 6
F08 44928 ORIFICE INSERT .026 IN ONE WAY 2
6 M B - 6 M OR X 90
SIZE IN
1/16
TH'S
GENDER: MALE
OR FEMALE
90 ° ANGLE
SWIVEL
TYPE
GENDER
SIZE
TYPE:
B - ORB
J - JIC
OR - FLAT
FACE
P - PIPE
Fitting Name
Example:
